Custom Lighting Design in Pakistan: How Newon Turns Any Space, Idea, or Brand Into Light

Target Audience: Architects, interior designers, brand managers, hospitality developers, and homeowners with impossible ideas.

“Good lighting is more than just a fixture — it’s an art form.”

Walk into the Newon Lighting Display Centre and the first thing that greets you is not a product shelf — it is a backlit typographical installation: a CNC-designed, LED-illuminated playwall where every word glows with intent. “Innovation.” “Creativity.” “Facade.” “Garden.” “Chandelier.” Each word is a facet of how we bring spaces to life through light. Whether you are looking for industrial solutions or residential elegance, we design with passion and patience to bring you closer to perfection.

That wall is not decoration. It is our capability statement — every letter was CNC-cut, every glow engineered, every circuit programmed in-house. And everything on it can be built for you, at any scale, for any space.

1. What “Custom Lighting” Actually Means at Newon

Most suppliers customize color. Newon customizes geometry, optics, control, and meaning. Our custom work operates at three levels:

Tier	What We Customize	Example Products & Starting Points
1. Catalog Customization	Length, CCT, finish, wattage, IP rating on existing systems	3CCT Linear Hanging Light · Designer LED Linear Pendant
2. Bespoke Fabrication	Entirely new geometry from your CAD/sketch: curves, circles, triangles, logos, typography	CNC Acrylic Backlit Panels · Curved Circular Pendants
3. Engineered Light Systems	Pixel-mapped facades, immersive environments, programmed scenes — hardware + software + commissioning	LED 510 DMX Console · SPI Pixel Modules · LEDedit

If your idea doesn’t exist in any catalog — anywhere in the world — that is exactly the brief we enjoy most.

---

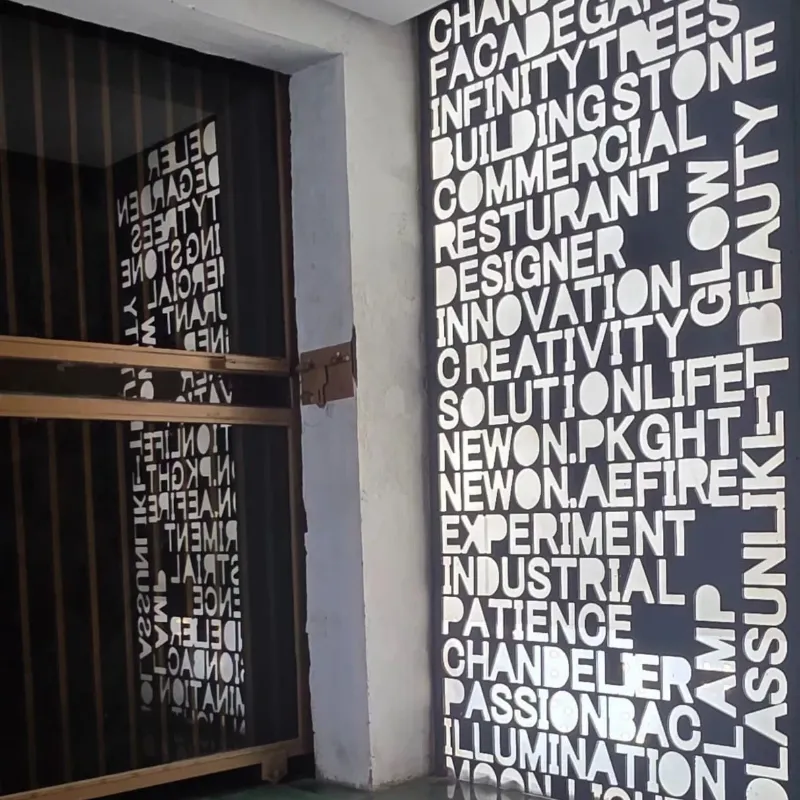

2. The Manifesto Wall: Our Backlit Typographical Installation

The typographical playwall at our display centre is the purest expression of custom lighting design in Pakistan. Built as an CNC-designed acrylic backlit wall, it combines:

• Precision CNC routing of every letterform from cast acrylic,
• High-density LED backlit modules (4W modules, 24V DC) spaced for zero hotspots behind thin letter strokes,
• Custom control programming so words can breathe, sequence, or hold — static elegance or dynamic storytelling.

From “Innovation” and “Creativity” to “Facade,” “Garden,” and “Chandelier,” every word represents a service line we execute daily. The same technique brands a restaurant name above a bar, a corporate logo in a reception void, or a child’s name in a nursery ceiling. If light can carry a shape, we can build it.

---

3. The Custom Fabrication Arsenal

Bespoke Geometries & Pendants

• Curved, circular & organic pendants: CNC-bent aluminium profiles with acrylic diffusion — circles, waves, freeform curves. Customised Circular & Curved Linear Pendant

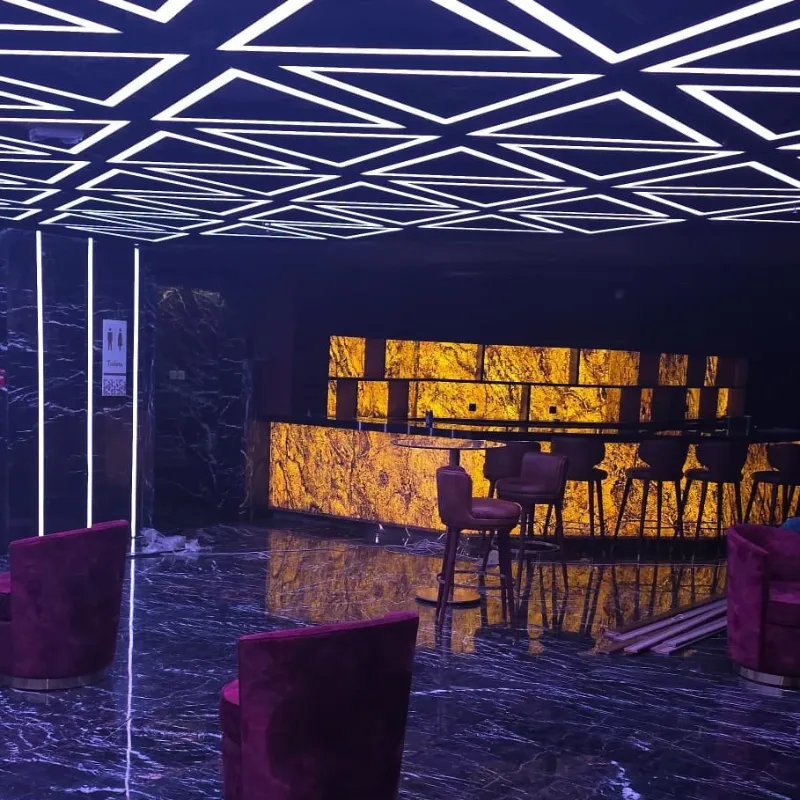

• Geometric solids: LED Triangular Hanging Light and Customised Triangular Solid fixtures for offices and hospitality zones.
• Modular track systems: Skyline Steel Strip DIY System — cut-to-length steel track accepting spots, linears and pendants on one unified rail.

Luminous Surfaces & Membranes

• Custom stretch fabric lightboxes: suspended, surface-mounted or recessed, in any rectangle, circle or oval — Newon Custom Lightboxes.
• Printed & branded membranes: UV-printed skies, galaxies, brand artwork behind backlit fabric — Custom Printed Stretch Fabric Ceiling.
• 360° flexible neon: dot-free silicone neon bent into logos, outlines and signage — 360° Flex LED Neon .

Fibre Optic Artistry (Electricity-Free Endpoints)

• Fibre Optic & Crystal Spiral Chandeliers — app-controlled RGBW cascades with glass crystal endpoints.
• Fibre Optic Cascades & Showers — sensory-safe sparkle for therapy rooms, spas and kids’ spaces.
• Custom star ceilings & pool starfields — Fibre Optic Star Ceiling Kit .

Sculptural Surfaces & Immersive Floors

• Water Ripple Metal Cladding — marine-grade SS304 that turns light into moving water.
• Beveled Glass Ceilings and 3D Glass Mirror Diamonds .
• LED Infinity Dance Floors — DMX-programmable mirrored depth for weddings and launches; Holographic Fans for 3D brand projection.

---

4. Custom Programming — The Invisible Craft

A custom fixture without custom programming is half a project. Newon’s engineers write the light’s behaviour:

• DMX512 architectural programming: full console control via LED 510 Main Controller and DMX Sub-Controller 408 for facades, wall washers and stage rigs.
• Madrix & LEDedit pixel-mapping: media facades and immersive rooms mapped pixel-by-pixel — see our Karachi party-room pixel mapping project, built on WS2818 addressable strips .
• Smart scenes & music sync: LED WiFi Music Controller with 252+ patterns; SP108e WiFi Magic Controller for app-driven homes.
• Motion choreography: PIR 32-Channel Staircase Controller — light that follows footsteps, step by step.
• Flowing-water effects: Waterflow Mini Controller paired with Running Water strips .
• Circadian scheduling: tunable-white scenes via Dual Colour RF Touch Controllers that shift with the sun.

---

5. The Newon Custom Process — Idea to Illumination

1. Brief & Site Survey: Your sketch, photo, CAD file, or just a feeling — we capture dimensions, ceiling conditions and intent.
2. Concept & 48-Hour CAD Mockup: Our design team returns a visual mockup and specification within 48 hours for most geometries.
3. Engineering & Photometrics: Lux calculations, spacing ratios, driver sizing with 20% headroom, voltage-drop checks.
4. Fabrication: CNC routing, profile bending, frame welding, membrane welding — in our own workshop.
5. Programming & Bench Test: Every scene, chase and dimming curve tested before it leaves the bench.
6. Installation & MEP Coordination: Coordinated with HVAC, sprinklers and fire-stopping; executed by our certified teams.
7. Handover, Training & AMC: As-built drawings, scene manuals, spare-parts inventory and maintenance contracts.

---

6. Executed Custom Projects — The Proof Wall

• Suspended 2×4 ft Lightbox — Design Process Pvt Ltd, D-Chowk — a floating luminous panel over a design studio’s collaborative zone.
• 8×20 ft Backlit Ceiling — Shaheen Cosmetics, F-7 — custom wooden + iron frame box, 250 modules, retail-grade uniformity.
• Oval Tunable Ceiling — Sapphire, F-10 — curved track, 2CCT dimming, RF scene memory for a fashion flagship.
• Round Luminous Disc — Manto, Giga Mall — a 4.6 ft glowing oculus inside a gypsum pocket.
• Five-Curved-Field Composition — Spa Salon, Bahria Town — ovals and rounds choreographed room by room.
• Infinity Mirror 3D Stage — TKR Restaurant — a custom immersive floor for a hospitality brand.
• The Typographical Playwall — Newon Display Centre, Islamabad — visit it, touch it, then commission your own.

---

7. What Custom Lighting Costs in Pakistan

Custom doesn’t mean unpriceable. Transparent entry points from our live catalog:

• Neon signage & outlines.
• Curved/circular pendants.
• CNC backlit acrylic panels.
• Custom stretch lightboxes & printed membranes: quoted per geometry.
• Fully engineered pixel/DMX systems: BOQ-based after photometric design

Final pricing depends on geometry complexity, material selection, control layer, size, and site access. Every quotation begins with a free consultation and a 48-hour mockup.

---

8. Frequently Asked Questions

Can you build lighting from my architect’s CAD drawings? Yes. Send DWG/PDF/SketchUp files via WhatsApp; our team returns a fabrication-ready mockup and specification, typically within 48 hours.

Is custom lighting only for commercial projects? No. We fabricate bespoke pieces for homes too — nursery name ceilings, curved cove lines, custom chandeliers, and staircase choreography are among our most-loved residential commissions.

Can you program DMX or Madrix on fixtures I already own? Yes. Our engineers audit existing hardware, verify protocol compatibility (DMX512, SPI, Art-Net), and re-program or replace controllers as needed.

How long does custom fabrication take? Simple geometry: 5–10 working days. Complex engineered systems with programming: 2–4 weeks including bench testing. Timelines are confirmed in writing at quotation.

Can I visit the typographical playwall and display centre? Absolutely — it was built to be experienced. Visit Newon Display Centre, at I-9, Islamabad, and see every word of our philosophy glowing in person.

---

Start Your Custom Lighting Project

Bring us a sketch, a photo, a brand, or just a feeling. We’ll bring the light.
