LED Waterproof SPI Pixel Module Pakistan — Programmable Signage & Stretch Fabric Pixel Mapping | ₨ 10,000/module

Problem: Standard RGB LED strips cannot produce pixel-level animations, text scrolling, or video-mapped content required for modern programmable signage and stretch fabric ceilings in Pakistan’s premium retail and hospitality sectors. Solution: LED Waterproof SPI Pixel Module delivers individually addressable pixel control via SPI protocol, IP65 weatherproof reliability, and DC 24V operation for large-scale installations across Islamabad, Lahore, and Karachi. ₨ 10,000 per module. 💬 WhatsApp to Order

Why SPI Pixel Module vs Standard RGB LED Strips?

Feature	SPI Pixel Module (This Product)	Standard RGB LED Strip	Addressable RGB Strip (WS2812B)
Pixel Control	Individually addressable via SPI protocol — each pixel controlled independently for complex animations, text, and pixel-mapped video	All LEDs change colour simultaneously — no pixel-level control; limited to solid colours or simple fades	Individually addressable but typically IP20-IP33; requires additional waterproofing for outdoor Pakistan installations
Weather Resistance	IP65 per IEC 60529 — dust-tight + water-jet resistant; suitable for Karachi coastal, KPK monsoon, Quetta desert outdoor installations	Often IP20-IP65; depends on silicone coating quality; vulnerable at cut points and connection joints	Often IP30-IP65; pixel ICs vulnerable to moisture ingress at high humidity; requires additional conformal coating for Pakistan climates
Long-Run Performance	DC 24V operation halves current vs 12V; maintains consistent brightness over 20m runs without mid-run power injection — critical for large facade projects	12V operation suffers significant voltage drop beyond 5m; requires frequent power injection points increasing installation complexity and cost	5V operation suffers severe voltage drop beyond 3m; requires power injection every 2-3m; impractical for large-scale Pakistan commercial installations
Best For	Programmable signage, stretch fabric ceiling pixel mapping, architectural facade animation, entertainment venue lighting across Pakistan	Simple ambient cove lighting, under-cabinet accent lighting, basic colour-changing applications where pixel control not required	Small-scale indoor pixel art projects, DIY hobbyist installations, low-budget applications where weather resistance not critical

Technical Specifications

Parameter	Specification
Protocol	SPI (Serial Peripheral Interface) — individually addressable pixels
Voltage	DC 24V — reduced voltage drop for long runs up to 20m
Power per Module	5W RGB full colour — 16.7 million colours
Pixel Density	20 modules per metre — high resolution for smooth animations
IP Rating	IP65 per IEC 60529 — dust-tight + water-jet resistant
Operating Temperature	-10°C to +60°C — suitable for GB cold to Quetta heat
LED Lifespan	50,000+ hours (L70) under normal operating conditions
Controller Compatibility	Newon LED 510 Main Controller, DMX Sub-Controller 408, Madrix software
Certifications	CE, RoHS, NEECA MEPS compliant
Warranty	12 months manufacturer warranty
Price	₨ 10,000 per module

Which Application Should You Choose?

Application	Installation Tip	Why (Pakistan Context)
Programmable Digital Signage	Mount modules on aluminium backing with thermal paste; use DC 24V power supply with 20% overhead capacity for peak loads	Ideal for retail storefronts in DHA Islamabad, Gulberg Lahore; IP65 withstands monsoon humidity and Punjab dust storms for year-round outdoor reliability
Stretch Fabric Ceiling Animation	Space modules 50mm apart (20/m) behind translucent fabric; test pixel mapping in Madrix before final installation	High-resolution pixel density enables smooth brand animations for PSO VIBE stores and premium hospitality venues; DC 24V reduces heat buildup in enclosed ceiling cavities
Architectural Facade Pixel Mapping	Use SPI data repeaters every 15m for signal integrity; seal all cable entries with silicone gaskets for IP65 maintenance	Critical for commercial plazas in Blue Area Islamabad and Clifton Karachi where dynamic facade lighting distinguishes premium developments; voltage-fluctuation-tolerant controllers ensure reliability

Applications

Programmable Digital Signage — Ideal for retail storefronts in DHA Islamabad, Gulberg Lahore; IP65 withstands monsoon humidity and Punjab dust storms for year-round outdoor reliability
Stretch Fabric Ceiling Animation — High-resolution pixel density enables smooth brand animations for PSO VIBE stores and premium hospitality venues; DC 24V reduces heat buildup in enclosed ceiling cavities
Architectural Facade Pixel Mapping — Critical for commercial plazas in Blue Area Islamabad and Clifton Karachi where dynamic facade lighting distinguishes premium developments; voltage-fluctuation-tolerant controllers ensure reliability
Entertainment Venue Lighting — Music-reactive pixel effects for nightclubs and event spaces in Lahore and Karachi; SPI protocol enables real-time audio synchronization via Madrix software
Regional Adaptability — IP65 housing + DC 24V operation ensures reliability in KPK monsoons, Balochistan heat (45°C+), GB cold snaps (-10°C), and Karachi coastal salt-air conditions

🚚 Shipping & Delivery:

Pakistan: Free shipping on orders ≥ PKR 15,000 | Dispatch 1–2 days | Nationwide delivery 2–5 days
Installation: Requires DC 24V power supply + SPI pixel controller (sold separately); professional installation recommended for facade and stretch fabric applications; all mounting hardware included; electrical connections must be made by qualified electrician per Pakistan Electrical Safety Code

FAQs

What is SPI protocol and why use it for pixel modules?
SPI (Serial Peripheral Interface) allows a controller to send unique colour and timing data to each pixel independently on a single data line. This enables complex animations, pixel-mapped video, and music-reactive effects impossible with standard RGB strips. Newon’s SPI modules work with our LED 510 Main Controller and professional Madrix software for large-scale Pakistan installations.

Is IP65 sufficient for outdoor signage in Pakistan’s monsoon season?
Yes. IP65 per IEC 60529 certifies the module housing is dust-tight and protected against low-pressure water jets from any direction. This is sufficient for outdoor signage and facade installations across Pakistan’s monsoon season (June-September), dust storms (April-June), and temperature swings from Karachi coastal humidity to Quetta desert heat.

Why choose DC 24V over 12V for pixel module installations?
At 5W per module, 24V operation halves the current versus 12V, significantly reducing voltage drop over long runs. For facade installations with continuous runs of 10-20 metres common in Pakistan commercial plazas, 24V maintains consistent colour brightness from first to last module without mid-run power injection.

Can these modules be used with stretch fabric ceiling systems?
Yes. Newon’s SPI pixel modules are designed for stretch fabric ceiling applications. Mount modules behind translucent fabric with 20 modules/metre spacing for high-resolution pixel mapping. Compatible with Newon’s stretch fabric ceiling systems and programmable via LED Edit or Madrix software for dynamic ceiling animations in retail and hospitality venues.

🔧 Technical Details (Click to Expand)

Why SPI Protocol for Professional Pixel Mapping: SPI (Serial Peripheral Interface) is the professional standard for individually addressable LED pixels because it provides deterministic timing, high data rates, and robust signal integrity over long cable runs. Unlike simpler protocols that may suffer from timing drift or signal degradation, SPI ensures every pixel receives its exact colour and timing command simultaneously — critical for smooth animations and pixel-mapped video content on building facades across Pakistan’s commercial developments.
IP65 Engineering for Pakistan’s Diverse Climates: The module housing uses UV-stable ABS plastic with silicone gaskets at all seams to prevent dust ingress and water penetration. This design withstands Karachi’s salt-air corrosion, Punjab’s dust storms, and KPK’s monsoon humidity while maintaining optical clarity for the LEDs and signal integrity for the SPI data lines over years of outdoor exposure.
DC 24V Advantage for Large-Scale Installations: At 5W per module, 24V operation draws half the current of equivalent 12V systems. This reduces resistive losses in wiring, allowing continuous runs up to 20 metres without mid-run power injection points. For facade installations in Pakistan commercial plazas where aesthetic continuity is critical, this eliminates visible brightness gradients and simplifies installation labour costs.
Compliance Framework: CE (European safety), RoHS (hazardous substances restriction), NEECA MEPS (Pakistan energy standards). All products tested for voltage fluctuation tolerance (180-260V) in the SPI controller interface circuitry to handle Pakistan’s unstable grid conditions during occasional hybrid power scenarios.

Frequently Bought Together

Complete your programmable pixel system with these compatible additions:

LED 510 Main Controller — Professional SPI pixel controller with preset scenes and DMX integration (₨ 120,000)
LED Waterproof Power Supply — 150W, IP67 — DC 24V constant-voltage driver for outdoor pixel module arrays (₨ 6,800)
Browse Full Addressable LED Range → — Discover SPI modules, controllers, and accessories for professional pixel mapping projects

Seen in Newon Projects

Programmable Lighting — PSO VIBE Convenience Stores Nationwide |
Madrix Pixel Mapping — Private Party Room Karachi |
Layered LED Systems — Private Residence Islamabad

Contact & Order

📧 info@newon.pk |
📞 +92 343 9227883 |
💬 💬 WhatsApp to Order
📍 Office No 2, First Floor, Haroon Plaza, Islamabad

All Addressable LED & Controllers |
Stretch Fabric Ceiling Systems |
Project Gallery |
UAE Operations (newon.ae)

Click to enlarge

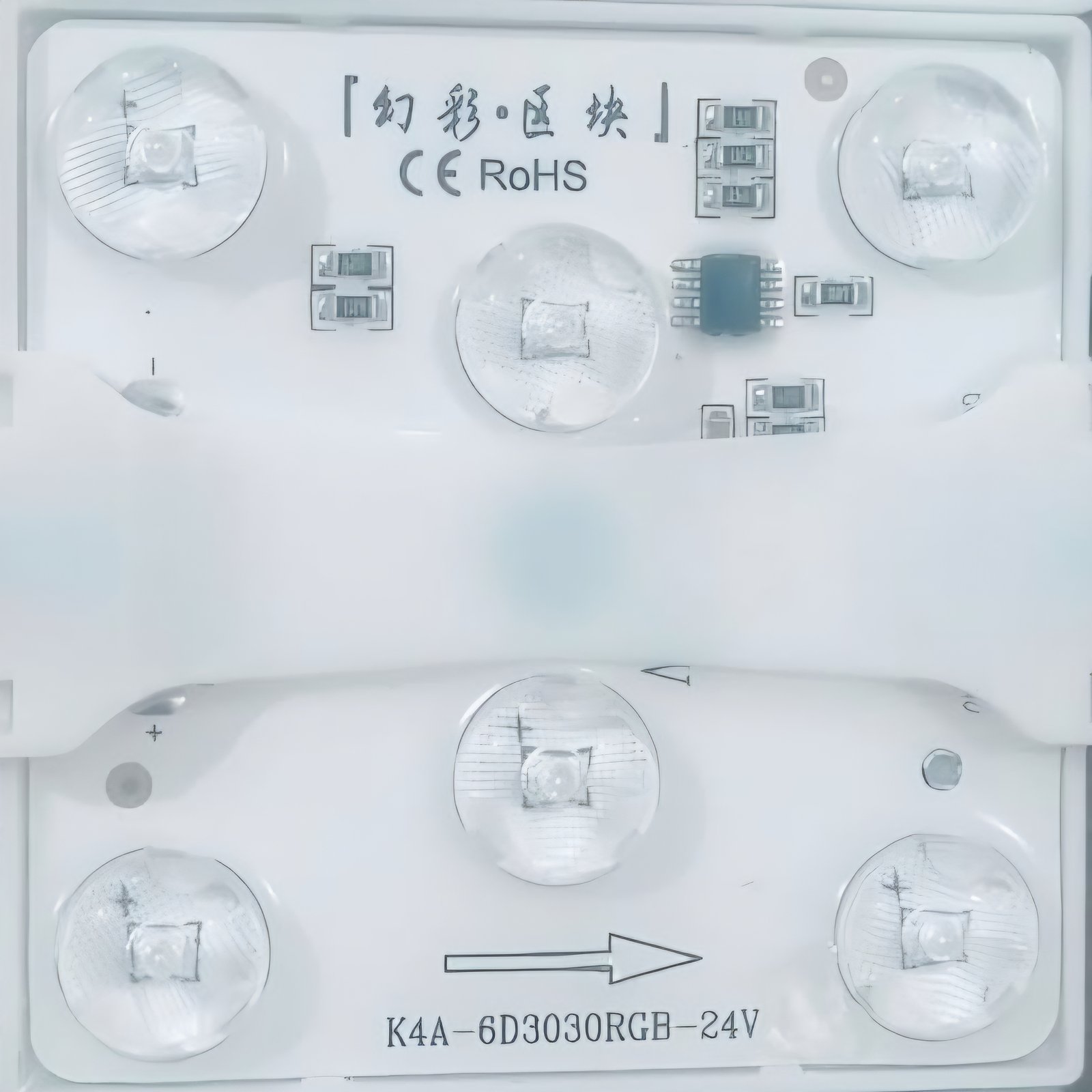

Led waterproof SPI led pixel module for signages and stretch fabric

₨ 10,000

Create dynamic, programmable pixel animations for signage and stretch fabric ceilings with individually addressable SPI modules. The LED Waterproof SPI Pixel Module delivers IP65 weatherproof reliability, DC 24V operation, and 5W RGB full-colour output — perfect for programmable signage across Islamabad, Lahore, and Karachi. ₨ 10,000 per module.

✔ SPI Protocol Individually Addressable — Each pixel controlled independently for complex animations, text scrolling, and pixel-mapped video content on building facades
✔ IP65 Weatherproof Housing — Dust-tight + water-jet resistant per IEC 60529; reliable in Karachi coastal salt-air, KPK monsoons, and Quetta desert heat (45°C+)
✔ DC 24V Low Voltage Operation — Reduced voltage drop for long runs up to 20m without mid-run power injection; critical for large facade installations across Pakistan
✔ 20 Modules per Metre High Density — 20 pixels/m resolution enables smooth gradient transitions and fine-detail animations for premium retail and hospitality venues
✔ Compatible with Newon Controllers — Works with LED 510 Main Controller, DMX Sub-Controller 408, and Madrix software for professional pixel mapping projects
✔ CE/RoHS Certified — Compliant with Pakistan Electrical Safety Code & NEECA MEPS standards; tested for voltage fluctuation tolerance (180-260V)

₨ 10,000 per module. Requires DC 24V power supply + SPI controller (sold separately). Warranty: 12 months. 💬 WhatsApp to Order | Bulk project pricing available.

✓ CE/RoHS | ✓ IP65 Weatherproof | ✓ 12-Month Warranty | ✓ NEECA Compliant

Add to compare

Add to wishlist

Categories: Led Addressable Lights & Controllers, Outdoor Lights, Stretch Fabric Ceiling Light Tags: Led spi pixel modules, Waterproof rgb modules

Description

Feature	SPI Pixel Module (This Product)	Standard RGB LED Strip	Addressable RGB Strip (WS2812B)
Pixel Control	Individually addressable via SPI protocol — each pixel controlled independently for complex animations, text, and pixel-mapped video	All LEDs change colour simultaneously — no pixel-level control; limited to solid colours or simple fades	Individually addressable but typically IP20-IP33; requires additional waterproofing for outdoor Pakistan installations
Weather Resistance	IP65 per IEC 60529 — dust-tight + water-jet resistant; suitable for Karachi coastal, KPK monsoon, Quetta desert outdoor installations	Often IP20-IP65; depends on silicone coating quality; vulnerable at cut points and connection joints	Often IP30-IP65; pixel ICs vulnerable to moisture ingress at high humidity; requires additional conformal coating for Pakistan climates
Long-Run Performance	DC 24V operation halves current vs 12V; maintains consistent brightness over 20m runs without mid-run power injection — critical for large facade projects	12V operation suffers significant voltage drop beyond 5m; requires frequent power injection points increasing installation complexity and cost	5V operation suffers severe voltage drop beyond 3m; requires power injection every 2-3m; impractical for large-scale Pakistan commercial installations
Best For	Programmable signage, stretch fabric ceiling pixel mapping, architectural facade animation, entertainment venue lighting across Pakistan	Simple ambient cove lighting, under-cabinet accent lighting, basic colour-changing applications where pixel control not required	Small-scale indoor pixel art projects, DIY hobbyist installations, low-budget applications where weather resistance not critical

Parameter	Specification
Protocol	SPI (Serial Peripheral Interface) — individually addressable pixels
Voltage	DC 24V — reduced voltage drop for long runs up to 20m
Power per Module	5W RGB full colour — 16.7 million colours
Pixel Density	20 modules per metre — high resolution for smooth animations
IP Rating	IP65 per IEC 60529 — dust-tight + water-jet resistant
Operating Temperature	-10°C to +60°C — suitable for GB cold to Quetta heat
LED Lifespan	50,000+ hours (L70) under normal operating conditions
Controller Compatibility	Newon LED 510 Main Controller, DMX Sub-Controller 408, Madrix software
Certifications	CE, RoHS, NEECA MEPS compliant
Warranty	12 months manufacturer warranty
Price	₨ 10,000 per module

Application	Installation Tip	Why (Pakistan Context)
Programmable Digital Signage	Mount modules on aluminium backing with thermal paste; use DC 24V power supply with 20% overhead capacity for peak loads	Ideal for retail storefronts in DHA Islamabad, Gulberg Lahore; IP65 withstands monsoon humidity and Punjab dust storms for year-round outdoor reliability
Stretch Fabric Ceiling Animation	Space modules 50mm apart (20/m) behind translucent fabric; test pixel mapping in Madrix before final installation	High-resolution pixel density enables smooth brand animations for PSO VIBE stores and premium hospitality venues; DC 24V reduces heat buildup in enclosed ceiling cavities
Architectural Facade Pixel Mapping	Use SPI data repeaters every 15m for signal integrity; seal all cable entries with silicone gaskets for IP65 maintenance	Critical for commercial plazas in Blue Area Islamabad and Clifton Karachi where dynamic facade lighting distinguishes premium developments; voltage-fluctuation-tolerant controllers ensure reliability
