Newon Smart Staircase Lighting System Installation Pakistan!

Looking for Smart Staircase Lighting System Installation in Pakistan? Your search ends here with Newon.pk. We specialize in transforming your staircase into a well-lit, intelligent masterpiece that not only enhances safety but also adds a touch of elegance to your home or commercial space. Our Smart Staircase Lighting System is designed to provide both functionality and aesthetics, allowing you to navigate your stairwell with ease while creating an inviting and visually stunning ambiance. Discover the future of staircase lighting with Newon.pk and make every step a brilliant experience.

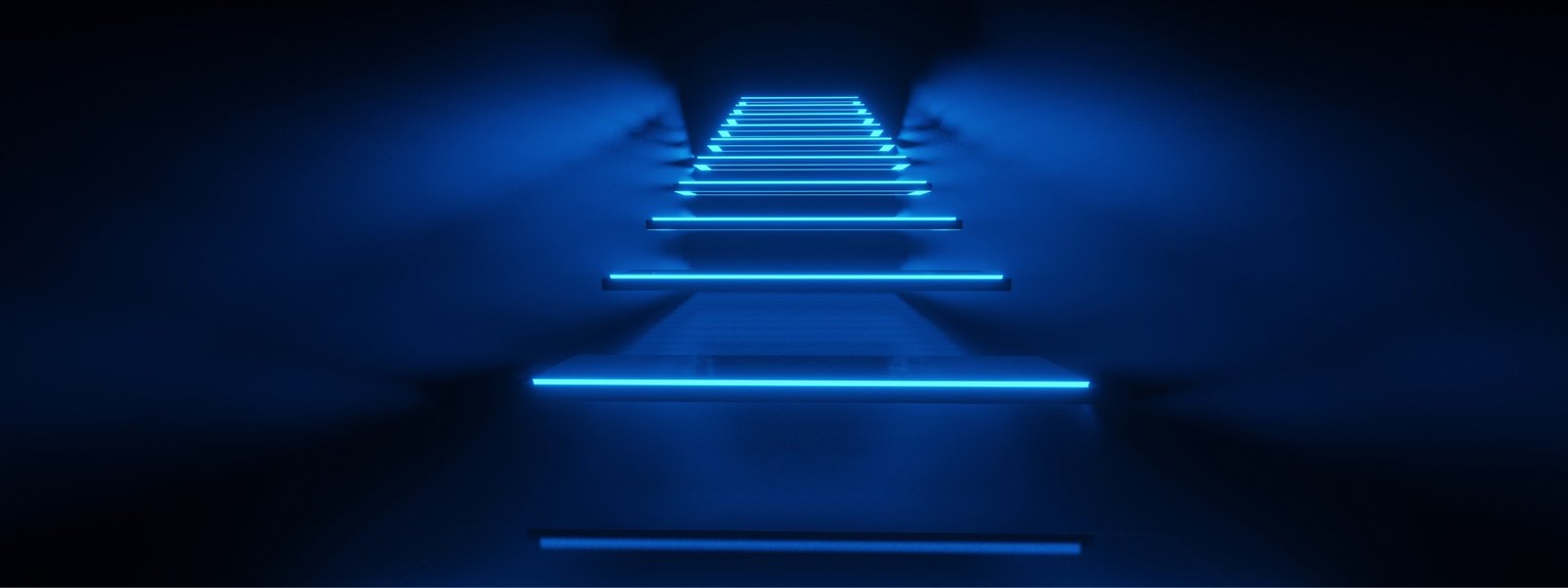

Smart Staircase Lighting

Smart Staircase Lighting System Installation in Pakistan

A smart staircase lighting system uses dual PIR (Passive Infrared) motion sensors and a multi-channel induction controller to sequentially illuminate stair treads as a person ascends or descends. Newon designs and installs low-voltage (12V/24V) LED staircase lighting across Pakistan, integrating automated step lights, handrail illumination, and energy-efficient smart controls for residential and commercial spaces.

Gone are the days of leaving stairwell lights on all night or navigating dark, hazardous steps. Our automated staircase systems provide precise, on-demand illumination that enhances safety for the elderly and children, while adding a premium, modern architectural aesthetic to villas, duplexes, and commercial plazas.

How the Newon Smart Staircase System Works

Our installations are not simple “on/off” motion lights. We engineer a cascading, sequential lighting experience using professional-grade automation:

Detection: Recessed PIR sensors at the top and bottom of the staircase detect human presence.
Sequential Induction: The 32-Channel Staircase Induction Controller triggers the LED strips step-by-step, following the user’s path.

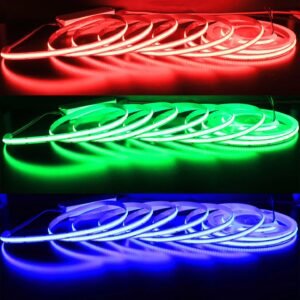

Illumination: Light is delivered via dot-free COB LED Strips or ultra-slim 5mm strips, housed inside anti-glare Aluminium Profiles hidden under the stair nosing or along the handrail.
Auto-Off: Once the user clears the stairs, the system sequentially powers down, ensuring zero energy waste.

Technical Specifications & Components

We do not use cheap, off-the-shelf smart plugs. Newon specifies commercial-grade, low-voltage components engineered for continuous architectural use.

Component	Newon Engineering Standard

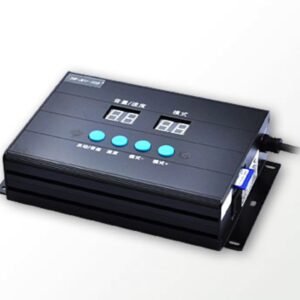

The Brain (Controller)	32-Channel PIR Induction Controller (Rs 12,000). Supports up to 32 individual steps, 5 adjustable speed grades, and 350W total output capacity.
The Light Source	COB LED Strips (dot-free, seamless light line) or 5mm 2835 LED Strips for ultra-narrow stair nosing grooves.
Operating Voltage	DC 12V or 24V (SELV). Safety Extra-Low Voltage eliminates any risk of fatal electric shock, making it inherently safe for homes with children.

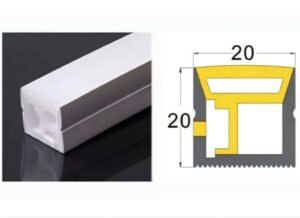

Housing & Profiles	Anodised aluminium or flexible silicone profiles with milky PC diffusers to prevent glare and protect LEDs from dust and foot-traffic debris.

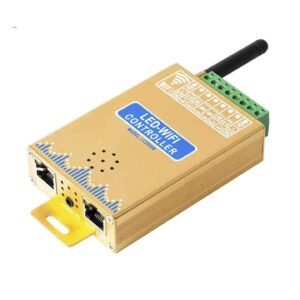

Smart Integration	Compatible with RF remotes, Tuya App, and WiFi controllers for customizing color temperature (CCT) or RGB effects.

Engineered Specifically for Pakistan’s Environment

Off-the-shelf imported stair controllers frequently fail in Pakistan due to grid instability and environmental factors. Every Newon installation is built around three local engineering realities:

Loadshedding & UPS Resilience: Because our systems operate on low-voltage DC and use high-efficacy LEDs (typically 5W to 10W per step), an entire 20-step staircase draws less than 150W. This minimal load is easily sustained by a standard home UPS or solar inverter during WAPDA power outages, ensuring your stairs are never left in the dark.
Voltage Fluctuation Tolerance: Our LED drivers and controllers feature wide-input architectures (or stable DC transformation) that protect the sensitive induction logic from the 180V–260V surges common in Lahore, Karachi, and rural grids.
Dust & Monsoon Sealing: For outdoor entrance stairs or open-air farmhouse stairwells, we utilize IP65/IP67 waterproof silicone profiles and sealed end-caps to prevent moisture ingress and dust accumulation, ensuring the system survives KPK monsoons and Punjab dust storms.

Applications Across Pakistan

Luxury Residential (DHA, Bahria Town, F-7/E-7 Islamabad): Hidden under-tread lighting for marble and wooden staircases, creating a floating architectural effect.
Commercial & Corporate Offices: Automated lighting for emergency stairwells and main feature staircases, reducing building energy consumption and meeting green-building safety codes.
Healthcare & Clinics: High-visibility, glare-free step illumination to prevent trips and falls for elderly patients.
Hospitality & Restaurants: RGB or tunable-white handrail lighting that changes ambiance based on the time of day or event.

Our 4-Step Installation Protocol

Site Survey & Routing: We assess your existing staircase (marble, wood, or concrete) to determine the best routing for concealed wiring and profile routing (nosings, stringers, or handrails).
Profile & Sensor Embedding: Aluminium channels are routed or surface-mounted. Dual PIR sensors are recessed into the walls at the top and bottom landings for a clean, invisible finish.
Low-Voltage Wiring & Controller Setup: All 12V/24V wiring is pulled back to a centralized, ventilated cabinet where the 32-channel controller and LED power supplies are mounted.
Commissioning & Programming: We calibrate the sensor sensitivity, adjust the sequential speed grades to match your walking pace, and hand over the system.

Frequently Asked Questions

Q: Can smart staircase lighting be installed on existing, finished stairs? A: Yes. For existing marble or wood stairs where cutting grooves is impossible, we use ultra-slim surface-mounted aluminium profiles or side-mount corner profiles that hide the LED strip while providing a clean, architectural finish without damaging the existing structure.

Q: Is the system safe if water is spilled on the stairs? A: Absolutely. Newon systems operate on DC 12V or 24V (Safety Extra-Low Voltage). Even in the event of water exposure or direct contact, the voltage is far below the threshold that can cause human harm, making it the safest option for residential and commercial spaces.

Q: Will the staircase lights work during a loadshedding power outage? A: Yes. Because the system uses low-wattage LED strips and runs on DC power, it can be easily wired into your home’s UPS or solar inverter backup circuit. The low power draw ensures it will not drain your backup batteries.

Q: Can I change the color or brightness of the stair lights? A: Yes. While warm white (3000K) is the most popular choice for residential elegance, we can install Tunable White (CCT) or RGBW LED strips paired with smart controllers, allowing you to change colors and dim the lights via a wall-mounted touch panel or smartphone app.

Q: How much does a smart staircase lighting system cost in Pakistan? A: The core 32-channel induction controller starts at Rs 12,000. Total project costs depend on the number of steps, the type of aluminium profiles used, and the complexity of concealing the wiring. Contact us with your staircase dimensions for a comprehensive supply-and-install quote.

Upgrade Your Staircase Today

Ready to automate your home or commercial space? Send us your staircase dimensions, photos, or architectural drawings for a comprehensive lighting design and installation quote.
