Supply and installation of led outdoor 3m pole lights outside commercial plaza in D-12 Islamabad

The exterior of a commercial building communicates its quality before a visitor even steps inside. Flooring, landscaping, signage, and — critically — outdoor lighting all form the first impression that tenants, customers, and visitors carry with them into the building. For commercial plazas competing for tenants and footfall in Islamabad’s increasingly active commercial real estate market, the standard of exterior pole lighting is not a minor detail. It is a visible, daily statement about the quality of the development.

Newon was privileged to supply and install the LED Pole Light Listra — a contemporary 3-metre outdoor pole light combining a 30W top-mounted LED fixture with integrated ambient strip lighting along the pole body — at two adjacent commercial plazas: Union Square and Paramount Plaza, D-12, Islamabad.

This case study documents the product specification, the complete installation process from foundation to final testing, and the key technical principles behind professional outdoor pole light installation in Pakistan. It is intended for commercial building owners and developers evaluating outdoor lighting for their properties, architects and landscape designers specifying pole lighting for commercial projects, and contractors managing exterior lighting installations.

Project Overview: LED Pole Lighting for D-12 Islamabad Commercial Plazas

D-12 is one of Islamabad’s most active emerging commercial corridors — a sector where premium commercial plazas and mixed-use developments are establishing themselves as destinations for businesses, retailers, and service providers. Both Union Square and Paramount Plaza are positioned as high-quality commercial addresses within this development, and their exterior environments needed to reflect that positioning.

The outdoor pole lighting brief for this project required fixtures that would:

• Provide safe, effective illumination of the plaza exterior, entrance areas, and pedestrian zones after dark
• Present a contemporary, design-led aesthetic appropriate for a premium commercial development
• Offer energy-efficient LED performance to minimise ongoing electricity costs across both plazas
• Withstand Islamabad’s full outdoor climate — summer heat, monsoon rain, dust, and winter cold — reliably over a long service life
• Create a cohesive exterior lighting identity across both adjacent plazas, reinforcing the quality of the D-12 development as a whole

The LED Pole Light Listra was selected as the product that best met all five requirements — combining functional performance, distinctive contemporary design, and long-term outdoor durability in a single fixture.

This project connects to Newon’s broader presence in D-12 — the company also completed the RGB pixel LED facade lighting installation on Union Square, making Newon the lighting partner for both the building’s exterior facade and its outdoor plaza environment.

The LED Pole Light Listra: Contemporary Design Meets Commercial Performance

The LED Light Pole Listra is a 3-metre contemporary outdoor pole light designed specifically for commercial outdoor environments — plazas, walkways, parking areas, and landscape zones where standard utility poles would look out of place alongside modern architecture.

Product Specifications

Specification	Detail
Total pole height	3 metres
Top fixture	30W LED light source — primary area illumination
Pole body lighting	Ambient LED strip lighting along pole sides
Light type	LED — energy-efficient, long lifespan
Application	Commercial plazas, parking areas, walkways, landscaping
Design character	Contemporary, architectural, minimalist
Supply voltage	220V AC (standard Pakistan mains)
Installation method	Anchor bolt foundation with underground cabling

The Dual-Layer Lighting Advantage

What distinguishes the Listra from a standard utility pole light is its dual-layer lighting system: a 30W top-mounted LED fixture providing functional downward illumination of the ground plane, combined with ambient LED strip lighting integrated into the sides of the pole body.

This combination achieves two things simultaneously. The top fixture does what any pole light must do — it illuminates the exterior area with sufficient lux levels for safe pedestrian movement and vehicle navigation. The ambient strip lighting on the pole body does something standard poles cannot: it illuminates the pole itself, creates a warm upward glow around the pole’s base, and establishes the fixture as an architectural element of the exterior environment rather than just a functional object.

At night, a row of Listra poles creates a visual rhythm across the plaza exterior — pools of ground-level illumination punctuated by the warm glow of the pole bodies themselves — that communicates quality and consideration to everyone approaching the building.

This is the standard that distinguishes premium commercial developments in Pakistan from basic ones. Basic developments have poles with bulbs. Quality developments have pole lighting that contributes to the architectural identity of the exterior.

Complete Installation Process: From Foundation to Final Testing

Professional outdoor pole light installation is a structured engineering process. Every stage must be executed correctly — a mistake at the foundation stage cannot be corrected after the concrete has cured, and improper wiring creates safety risks that persist for the lifetime of the installation. Here is how Newon approached the D-12 installation:

Stage 1 — Site Layout and Pole Position Planning

Before any ground preparation begins, the positions of every pole were marked out according to the lighting layout plan. For the Listra at 3 metres, the standard spacing recommendation of 2.5 to 3 times the pole height was applied — meaning poles were positioned at approximately 7.5 to 9 metre intervals. This spacing ensures that the illumination from adjacent poles overlaps sufficiently to eliminate dark zones, while avoiding over-lighting that wastes energy and creates glare.

Pole positions were also checked against the architectural features of both plazas to ensure the finished installation created a visually balanced exterior environment — aligned with entrance features, consistent with the building’s geometry, and clear of underground services.

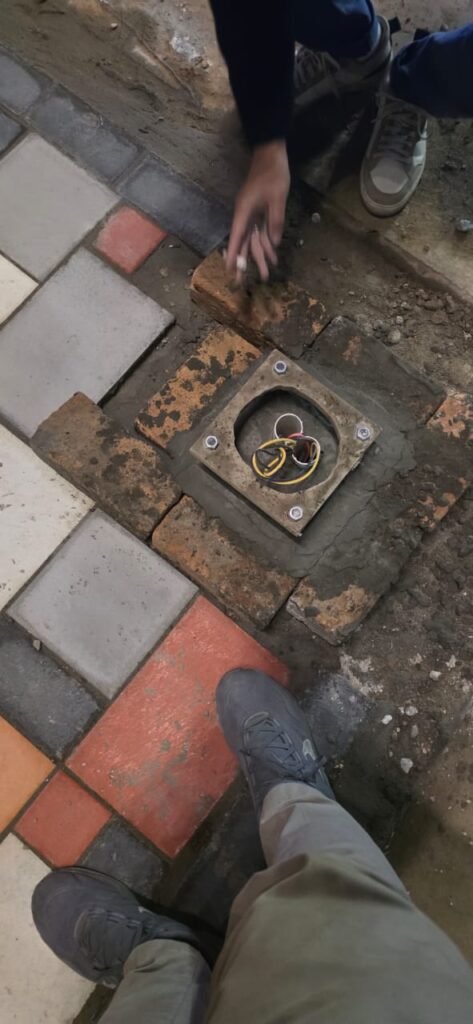

Stage 2 — Foundation Excavation and Anchor Bolt Cage Installation

At each pole position, the ground was excavated to the required depth for the foundation. An anchor bolt cage — a pre-fabricated assembly of threaded bolts set in a steel template at the correct bolt circle diameter for the Listra pole base — was positioned precisely in the excavated pit.

Two critical elements were installed at this stage before the concrete was poured:

• Underground conduit — a protective conduit for the electrical cable that will power the pole, running from the foundation pit to the distribution board or supply point. This conduit protects the cable permanently underground and allows future cable replacement without excavation.
• Earthing/grounding conductor — a grounding connection bonded to the anchor bolt cage, providing electrical earthing for the pole and fixture for safety compliance.

Concrete was then poured and vibrated to eliminate air voids, completely encasing the anchor bolt cage. The tops of the anchor bolts were left projecting above the concrete surface at the precise height required for pole mounting.

Stage 3 — Foundation Curing

The concrete foundation was left to cure fully before any pole mounting activity. Premature loading of a fresh concrete foundation is one of the most common causes of pole instability in outdoor lighting installations — the concrete must reach sufficient compressive strength before the pole weight and wind loading are applied. Newon allows the specified curing period before proceeding to the next installation stage.

Stage 4 — Pole Mounting and Vertical Alignment

Once the concrete foundation had fully cured, the Listra pole was lifted onto the anchor bolts and secured using levelling nuts and washers. The levelling nut system is critical — it allows the pole to be adjusted to a precisely vertical position regardless of minor imperfections in the foundation surface, ensuring the finished pole is perfectly plumb when viewed from any angle.

A spirit level and, for critical alignments, a laser level were used to confirm vertical accuracy before the mounting nuts were tightened to the specified torque. Poles that are even slightly off-vertical are visually noticeable across a row of installations and undermine the professional appearance of the exterior environment.

Stage 5 — Underground Cable Routing and Electrical Connection

With the poles securely mounted, the electrical supply cables were routed from the distribution board through the underground conduit system to each pole base. All cable terminations and connections were made within weatherproof junction boxes or the pole base compartment, ensuring no exposed connections are accessible or subject to water ingress.

All electrical work was completed to Pakistan’s electrical safety standards, with proper insulation, correct cable sizing for the circuit load, and proper earthing continuity verified at every pole.

Stage 6 — Fixture Commissioning and Final Testing

After all electrical connections were completed, every pole fixture was switched on and tested — confirming correct operation of both the 30W top fixture and the ambient strip lighting, verifying that no installation faults were present, and checking that the light distribution across the plaza exterior matched the design intent.

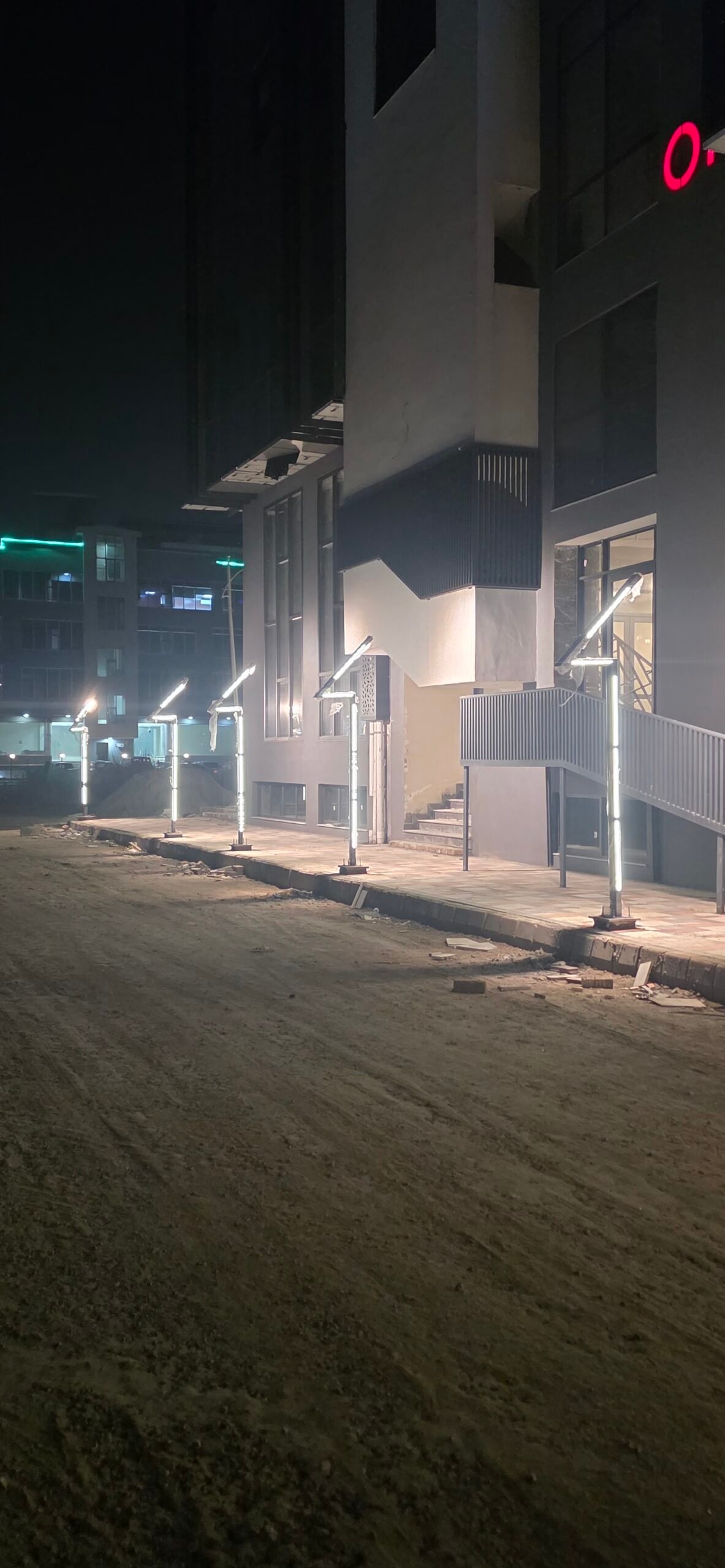

Final visual inspection was carried out at night to confirm that the row of Listra poles created the cohesive, balanced exterior lighting environment required for both Union Square and Paramount Plaza.

Stage	What Was Done	Key Technical Requirement
1 — Site layout	Pole positions marked at 2.5–3× height spacing	Uniform coverage, no dark zones
2 — Foundation	Excavation, anchor bolt cage, conduit, earthing, concrete pour	Structural stability, safe cable housing
3 — Curing	Full concrete curing period observed	Compressive strength before loading
4 — Pole mounting	Pole lifted onto anchor bolts, levelled with nuts and washers	Perfectly vertical alignment across all poles
5 — Wiring	Underground cables routed, weatherproof connections made	Safety, no exposed connections, proper earthing
6 — Testing	All fixtures commissioned and night-tested	Correct operation, uniform distribution confirmed

Planning Outdoor Pole Lighting for Your Commercial Development in Pakistan

If you are a commercial developer, building owner, or facilities manager evaluating outdoor pole lighting for a plaza, parking area, or commercial exterior in Pakistan, here are the key decisions:

Pole Height and Spacing

Pole height determines the area covered by each fixture and the visual scale of the installation. 3-metre poles like the Listra are appropriate for pedestrian plaza and walkway environments where human-scale lighting is desired. Taller poles (5–8 metres) suit wider parking areas and driveways where broader coverage is needed. Always plan spacing at 2.5–3× pole height to ensure uniform coverage without dark zones or overlighting.

Functional vs Architectural Poles

Standard utility poles provide adequate lighting but make no architectural contribution to the exterior environment. Design-led poles like the Listra — with integrated ambient strip lighting, contemporary profiles, and considered material finishes — elevate the exterior of a commercial development and communicate quality to every visitor. In Pakistan’s increasingly competitive commercial real estate market, this distinction matters for tenant attraction and property value.

Solar vs Mains-Powered

For locations where mains underground cabling is impractical or prohibitively expensive — farm houses, remote housing society entrances, agricultural land perimeters — solar LED pole lights are a practical alternative. Newon supplies a full range of solar pole lights and solar-electric hybrid bollard poles for applications where grid connectivity is limited.

Foundation Engineering

Never compromise on foundation specification. The foundation is the most critical element of any pole installation and the most difficult to correct after the concrete is poured. Newon specifies foundations based on pole height, fixture weight, and local wind loading conditions — ensuring every pole remains stable and vertical for its full service life.

For Architects, Landscape Designers & Contractors: Outdoor Pole Lighting Specification in Pakistan

Newon supplies and installs the full range of outdoor LED pole lights for commercial, residential, and landscape applications across Pakistan. For architects, landscape designers, and contractors, Newon’s professional services include:

• Full outdoor pole lighting range — contemporary poles like the Listra, post-top garden lights, 3m garden post lamps, garden pole post lamps, and classical street light posts available online across Pakistan
• Technical specifications — lumen output, wattage, IP ratings, pole dimensions, foundation bolt circle diameters, and wiring diagrams available on request
• Lighting layout consultation — Newon’s team can advise on pole heights, spacings, and fixture types for your specific exterior environment
• Supply and installation — complete supply and professional installation available in Islamabad, Rawalpindi, and surrounding areas
• Bulk and project pricing — competitive rates for multi-pole commercial and landscape installations
• Solar alternatives — solar pole lights available for off-grid and remote locations across Pakistan

Related completed Newon outdoor pole lighting projects include the premium LED pole light installation at a Gulberg Islamabad farm house, LED park lighting at DHA Phase 2 Family Park, contemporary outdoor LED pole lights, and solar UFO pole lighting at Vsurfaces Islamabad.

For outdoor and landscape lighting projects in the UAE and GCC, newon.ae provides equivalent supply and consultation services across the Middle East.

To discuss an outdoor pole lighting project, request product specifications, or arrange a site consultation:
📧 info@newon.pk  |  📞 +92 343 9227883  |  💬 WhatsApp

More Outdoor and Commercial Lighting Projects by Newon

• RGB Pixel LED Facade Lighting — Union Square, D-12 Islamabad
• LED Pole Light Installation — Farm House, Gulberg Islamabad
• LED Park Lighting — Family Park, DHA Phase 2
• Solar UFO Pole Lighting — Vsurfaces Parking, Islamabad
• LED Lawn Lights Recta — Askari 4, Islamabad
• Facade & Landscape Lighting — HIT Officers Mess, Taxila
• View All Newon Projects →

Frequently Asked Questions — Outdoor LED Pole Lights Pakistan

What is the LED Pole Light Listra and what are its specifications?

The LED Light Pole Listra is a 3-metre contemporary outdoor pole light featuring a 30W LED fixture at the top for primary area illumination, combined with ambient LED strip lighting along the pole body for decorative accent effect. It is designed for commercial plazas, walkways, parking areas, and landscape environments where contemporary architectural design is required alongside functional lighting performance.

How are outdoor LED pole lights installed in Pakistan?

Professional installation involves: site layout and pole spacing planning, foundation excavation with anchor bolt cage and underground conduit installation, concrete pouring and curing, pole mounting and vertical alignment using levelling nuts, underground cable routing and electrical connection, and final commissioning and night testing. Each stage requires precision — particularly the foundation and vertical alignment stages, which cannot easily be corrected after completion.

What is the recommended spacing for 3m outdoor pole lights?

The standard recommendation is 2.5 to 3 times the pole height — for 3-metre poles, this means approximately 7.5 to 9 metres between poles. This spacing achieves overlapping coverage with no dark zones while avoiding energy waste from over-illumination. Exact spacing may vary based on the fixture’s lumen output and the specific geometry of the area being illuminated.

Why is the concrete foundation so important in pole light installation?

The foundation provides the structural support for the entire installation — resisting the pole’s weight and the lateral wind forces acting on it throughout its service life. An undersized or incorrectly poured foundation leads to pole tilting, instability, and potential structural failure. The anchor bolt cage, underground conduit, and earthing connection must all be correctly positioned within the foundation before the concrete is poured, as repositioning after curing is not possible.

Can Newon supply and install outdoor pole lights across Pakistan?

Yes. Newon supplies LED outdoor pole lights in multiple designs, heights, and wattages across Pakistan, with delivery nationwide. Installation services are available in Islamabad, Rawalpindi, and surrounding areas. For other cities, Newon can supply the products with detailed installation guidance. Contact us via WhatsApp or email info@newon.pk.

What is the purpose of ambient strip lighting on the pole body?

The ambient LED strip lighting on the Listra pole body serves both functional and aesthetic purposes. Functionally, it reduces harsh contrast between the lit ground plane and the dark pole structure. Aesthetically, it gives the pole a distinctive glowing presence at night — elevating the commercial exterior beyond standard utility lighting and making the Listra a design feature of the plaza environment, not just a functional object.

All the detailed images and information of the products and project are given here for more details.

If we talk about its installation process, it involves a structured process, from site preparation and foundation construction to mounting the pole and wiring the fixtures.

Spacing between the poles is usually suggested 2.5-3 times the height of the pole. Before installation of light pole at site, an anchor bolt cage is placed in concrete foundation and also conduit and grounding is done for cable entry.

After the concrete is cured, the pole is mounted using leveling nuts and washers on the anchor bolts to adjust the pole to a perfectly vertical position. Final wiring a safe connection from the underground conduit is done and the light is once tested to ensure it functions correctly.
