Installation of cloudy sky printed backlit barrisol stretch ceiling in a hallway at a local house in Islamabad

Imagine walking into your home and looking up to find not a flat white ceiling but an open sky — drifting clouds backlit with a soft, even glow that makes your hallway feel like it opens upward into the outdoors. This is the transformative effect that a custom printed backlit stretch ceiling creates, and it is increasingly one of the most requested interior lighting upgrades in Pakistan’s premium residential market.

This project documents the complete supply and installation of a cloudy sky printed backlit Barrisol stretch ceiling completed by Newon in a residential hallway in Islamabad — covering approximately 200 square feet of ceiling area. The project involved site measurement, custom image design, fabric printing, LED module installation, track fitting, and final fabric tensioning — a complete end-to-end service delivered by Newon’s specialist stretch ceiling team.

Whether you are a homeowner curious about backlit stretch ceilings for your home, an architect or interior designer specifying stretch ceiling systems for a residential or commercial project, or a contractor looking for a reliable stretch ceiling supplier and installer in Pakistan, this case study walks through every stage of the process.

What Is a Backlit Stretch Ceiling? Understanding the System

Before walking through the project itself, it is worth explaining exactly what a backlit stretch ceiling is — because despite their growing popularity in Pakistan’s premium interior design market, many homeowners and even some design professionals are still unfamiliar with the technology.

The Core System

A backlit stretch ceiling consists of three integrated elements working together:

• Perimeter tracks (profiles) — aluminium or PVC channels fixed to the walls or existing ceiling around the perimeter of the space, providing the structural framework that holds the fabric under tension
• LED light modules — installed in a calculated grid pattern behind the fabric, providing the backlighting that illuminates the ceiling from within
• Stretch fabric membrane — a high-quality PVC or polyester material that is heated and tensioned into the perimeter tracks to create a perfectly flat, smooth, wrinkle-free ceiling surface

When the LED modules are switched on, their light passes through the fabric membrane, which acts as a large-format diffuser — distributing the illumination evenly across the entire ceiling surface with no visible hotspots or individual light points.

The Printed Version

For this project, the fabric membrane was custom-printed with a cloudy sky design before installation. When backlit, the print comes alive — the clouds appear to glow from within, the sky depth looks real, and the hallway ceiling transforms from a flat surface into an immersive visual experience.

This is the specific product Newon used for this installation: the sky pattern stretch ceiling light, available from Newon’s stretch fabric ceiling lighting range.

What Is Barrisol?

Barrisol is the world’s leading premium brand of stretch ceiling membrane — a French product that has been the global standard in architectural stretch ceiling technology for decades. Barrisol membranes are manufactured to precise optical specifications that ensure consistent translucency, accurate colour reproduction in printed designs, and long-term durability without yellowing or sagging. When printing a sky design that must look convincing when backlit, Barrisol-quality membrane makes the difference between a result that looks genuinely immersive and one that looks like a printed banner.

The Client Brief: An Open Sky in a Hallway

The client — a homeowner in Islamabad — had a specific and clear vision: they wanted their hallway to feel magical and serene. The hallway, as the transitional space connecting the entrance of the home to the main living areas, is the first interior experience a visitor has — and the client wanted that first impression to be extraordinary.

The chosen concept was a cloudy sky design — a softly lit expanse of clouds that makes the hallway feel as though its ceiling has dissolved and opened to the sky above. This concept is particularly effective in hallways because these spaces are typically narrow, with relatively low ceilings — and an open-sky illusion immediately makes the space feel taller, wider, and more welcoming than any conventional ceiling treatment could achieve.

The project scope covered approximately 200 square feet of hallway ceiling, installed over the existing ceiling structure without any demolition or structural modification.

The Complete Installation Process: Step by Step

Newon’s stretch ceiling installation follows a precise multi-stage process that ensures the final result is perfectly flat, evenly lit, and dimensionally accurate. Here is exactly how the Islamabad hallway project was executed:

Step 1 — Site Visit and Precise Measurement

Before any design work or material ordering can begin, Newon’s installation team conducted a full site visit to take exact measurements of the hallway ceiling. Every dimension — length, width, any changes in level, the position of light switches, and the locations of any existing ceiling fixtures — was recorded with precision.

Accurate measurement at this stage is critical. Stretch ceiling fabric is custom-manufactured to the specific dimensions of each project — if measurements are wrong, the fabric will not tension correctly, and the perimeter tracks will not align with the architectural features of the space. This is why Newon never skips the site visit stage, regardless of the project scale.

During the same visit, the team assessed the existing ceiling and wall construction to determine the optimal method for fixing the perimeter tracks — confirming that installation directly to the existing ceiling and walls was feasible without additional structural work.

Step 2 — Design Development and Client Approval

Following the site measurement, Newon’s design team produced a detailed layout drawing showing the position of the perimeter tracks, the LED module grid, and the printed fabric design. The cloudy sky print was developed as a high-resolution image scaled precisely to the measured 200 square feet of ceiling area.

The complete design and project quotation were presented to the client for review and approval before any fabrication or ordering was initiated. This approval stage ensures the client sees exactly what the final result will look like before any commitment is made — avoiding surprises and building the confidence that comes from a fully transparent process.

Step 3 — Fabric Printing

Once the design was approved, the stretch ceiling membrane was custom-printed with the cloudy sky image at the exact dimensions of the hallway ceiling. The print was produced at high resolution specifically for backlighting — meaning the colour values and contrast were calibrated for how the image will appear when LED light passes through the fabric from behind, rather than how it appears in front-lit daylight.

This distinction is important: a print that looks correct in ambient light may look washed out or colour-shifted when backlit, if the printing has not been optimised for the application. Newon’s stretch ceiling fabric printing accounts for this — the final installed result matches the approved design.

Step 4 — LED Module Installation

With the tracks in position, LED light modules were installed across the ceiling area in a precisely calculated sequence. The spacing and positioning of each module was determined by the ceiling area dimensions and the desired uniformity of light distribution — the goal being that no section of the fabric appears brighter or dimmer than any other when the system is switched on.

Even light distribution is the single most important technical requirement in backlit stretch ceiling installation. Uneven LED placement produces visible bright patches or dark zones that break the illusion and compromise the visual quality of the printed image. Newon uses the LED module backlit lights specifically designed for stretch fabric ceiling applications — products engineered for the correct beam angle and output to backlight fabric uniformly at standard installation depths.

Step 5 — Perimeter Track Installation

The aluminium perimeter tracks were fixed precisely to the existing walls and ceiling around the full perimeter of the hallway ceiling area. Track alignment at this stage determines the final geometry of the stretch ceiling — any deviation from level or square will be visible in the finished fabric surface. Newon’s installation team uses laser levels to ensure perfect alignment before any track is fixed permanently.

Step 6 — Stretch Fabric Tensioning and Final Fix

The final stage is the installation of the stretch fabric itself. The printed membrane is warmed with a heat gun to increase its flexibility, then stretched and clipped into the perimeter track system using specialist tensioning tools. The fabric is worked progressively around the perimeter — alternating sides to maintain even tension — until the entire surface is perfectly flat, smooth, and wrinkle-free.

The heat-and-tension process is the most technically demanding part of a stretch ceiling installation, requiring skill and experience to achieve a result that is truly flat across the full 200 square feet without any sagging, warping, or visible fixing points.

Stage	What Was Done	Why It Matters
1 — Site measurement	Precise dimension recording of full hallway ceiling	Ensures fabric fits perfectly — no re-ordering
2 — Design & approval	Layout drawing + sky print design + quotation	Client confirms result before fabrication begins
3 — Fabric printing	High-res sky print optimised for backlighting	Colours calibrated for how light passes through fabric
4 — LED installation	Module grid installed at calculated spacing	Ensures perfectly even light across full 200 sq ft
5 — Track fixing	Perimeter tracks laser-levelled and fixed	Determines final flatness and geometry
6 — Fabric tensioning	Membrane heated, stretched and clipped into tracks	Creates smooth, wrinkle-free, seamless finish

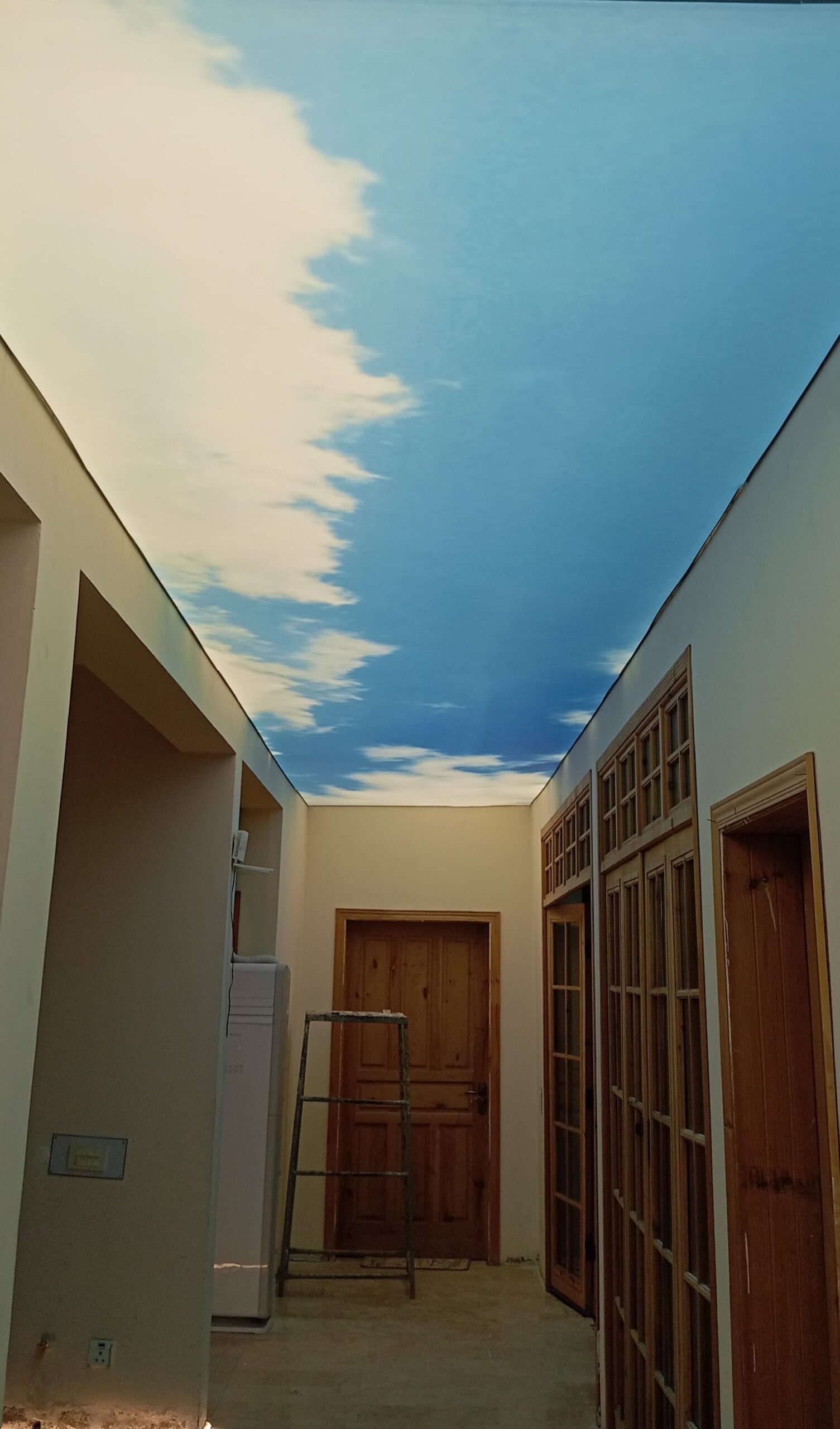

Final Result: A Hallway Transformed

After completion, the transformation of the Islamabad hallway was exactly what the client had envisioned — and more. The cloudy sky ceiling creates a genuinely immersive environment: the clouds appear to drift, the light is soft and perfectly even, and the hallway feels dramatically taller and more spacious than its physical dimensions suggest.

Key outcomes of the completed installation:

• Open sky illusion — the printed clouds, backlit evenly across the full 200 sq ft, create a convincing sense of height and openness in a space that was previously just a corridor
• Perfectly even illumination — no hotspots, no dark zones, no visible LED points — the LED module grid delivers completely uniform backlighting across the entire ceiling panel
• Clean, seamless finish — no visible tracks, no fixing points, no joints — the ceiling appears as a single, continuous luminous surface
• Serene, magical atmosphere — the soft, diffused backlit glow creates a calm, welcoming quality in the hallway that no conventional ceiling light could achieve
• Installed over existing ceiling — no demolition, no mess, no structural work — the entire system was installed cleanly over the existing ceiling in a single visit

“At Newon, we treat every project as a gem while putting our souls into the process to achieve the best results.”
— Newon Installation Team

Is a Backlit Stretch Ceiling Right for Your Home in Pakistan?

Backlit stretch ceilings are one of the most versatile ceiling treatments available in Pakistan’s interior design market. Here is where they work best in a residential setting and what to consider before proceeding:

Best Spaces for Stretch Ceilings in Pakistani Homes

• Hallways and entrance lobbies — narrow spaces benefit most from the open-sky illusion, which adds perceived height and makes the first impression of the home extraordinary
• Master bedrooms — a starry night or soft cloudy sky above the bed creates an immersive, hotel-like sleeping environment
• Drawing rooms and lounges — a large backlit ceiling over the main seating area becomes the defining feature of the entire room
• Children’s rooms — sky, galaxy, or nature-themed ceilings are enormously popular and create a genuinely magical environment for children
• Home cinemas and media rooms — plain white backlit ceilings provide perfect, glare-free ambient lighting for screen viewing
• Bathrooms and wet areas — waterproof stretch ceiling membranes are suitable for bathrooms and provide a seamless, easy-to-clean ceiling surface

Key Questions to Ask Before Installing

What image do you want? Sky, stars, geometric patterns, abstract art, or a corporate logo for commercial spaces — virtually any design can be printed. Newon’s design team can help develop the image if you don’t have one ready.

What colour temperature for the backlighting? Warm white (3000K) creates a cosy, golden-toned sky. Neutral white (4000K) produces a more realistic daylight quality. RGB LED modules allow the backlight colour to be changed — useful for creating mood lighting that shifts with the time of day or occasion.

Is installation possible over your existing ceiling? In almost all cases, yes — stretch ceilings install over existing ceilings without demolition. Newon’s site visit will confirm the specific approach for your space.

For Architects, Interior Designers & Contractors: Stretch Ceiling Specification in Pakistan

Newon is Pakistan’s leading supplier and installer of backlit stretch ceiling systems for residential, commercial, hospitality, healthcare, and educational applications. For professional clients, Newon provides:

• Complete supply and installation — Newon handles measurement, design, printing, LED installation, track fixing, and fabric tensioning as a single end-to-end service
• Custom image printing — high-resolution fabric printing for any image or design, calibrated for backlit application at the specific ceiling dimensions of your project
• Full product range — plain white backlit ceilings, sky and starry prints, RGB backlit systems, and SPI pixel modules for dynamic backlit effects
• Commercial and large-format projects — Newon has completed stretch ceiling installations in residential homes, medical clinics, offices, and hospitality venues across Pakistan
• Technical support — product specifications, installation guidance, and post-installation support available for all projects

Related completed Newon stretch ceiling projects include the window-style sky printed stretch ceiling in Rawalpindi, round stretch fabric ceiling at a medical clinic in Islamabad, and stretch fabric ceiling at a car detailing studio.

For UAE and GCC commercial and hospitality stretch ceiling projects, newon.ae provides equivalent supply and installation services across the Middle East.

To discuss a stretch ceiling project, request specifications, or arrange a site visit:
📧 info@newon.pk  |  📞 +92 343 9227883  |  💬 WhatsApp

More Stretch Ceiling and Specialist Lighting Projects by Newon

• Window-Style Sky Printed Stretch Ceiling — Hallway, Rawalpindi
• Round Stretch Fabric Ceiling — Medical Clinic, Islamabad
• Stretch Fabric Ceiling & Linear Lighting — Car Detailing Studio
• Fibre Optic Star Ceiling Lights — Gypsum Ceiling Installation
• Fibre Optic Star Ceiling — Movenpick Hotel Swimming Pool, Islamabad
• Browse All Stretch Ceiling Products →
• View All Newon Projects →

Frequently Asked Questions — Backlit Stretch Ceiling Pakistan

What is a backlit stretch ceiling and how does it work?

A backlit stretch ceiling combines perimeter tracks fixed to walls or ceiling, LED modules installed behind, and a stretch fabric membrane tensioned across the tracks. The fabric diffuses the LED light evenly across the entire ceiling surface. When the fabric is custom-printed — as in this project — the backlight causes the image to glow from within, creating a luminous ceiling that appears to open the room upward. Newon supplies and installs complete backlit stretch ceiling systems across Pakistan.

What is Barrisol and how is it different from standard stretch ceiling?

Barrisol is the world’s leading premium French stretch ceiling membrane brand, manufactured to precise optical and dimensional specifications. Barrisol membranes deliver superior translucency, colour accuracy in printed designs, and long-term durability. For custom sky-print backlit ceilings, Barrisol-quality membrane ensures the printed image appears with genuine depth and colour fidelity when backlit — rather than looking washed out or flat.

How much does a backlit stretch ceiling cost in Pakistan?

Costs depend on the area, fabric type, print complexity, and installation requirements. Newon provides detailed quotations after a site visit. Contact us via WhatsApp or email info@newon.pk for a free consultation and estimate.

Can a stretch ceiling be installed over an existing ceiling?

Yes. Stretch ceilings install directly over existing ceilings using perimeter tracks fixed to walls or the ceiling itself — no demolition or structural work required. This makes them ideal for renovations in existing homes and commercial spaces across Pakistan.

What images can be printed on a stretch ceiling?

Virtually any design — sky and clouds, starry night, forest canopy, abstract patterns, geometric shapes, or custom artwork. Prints are produced at high resolution calibrated specifically for backlighting. Newon’s design team can develop the image for your project if needed.

Does Newon install stretch ceilings across Pakistan?

Yes. Newon supplies and installs backlit, printed, plain white, and RGB stretch ceiling systems for homes, offices, clinics, hotels, and commercial spaces across Pakistan including Islamabad, Rawalpindi, Lahore, Karachi, and other cities. Contact us to discuss your project.

All the images are given below for more information and details.

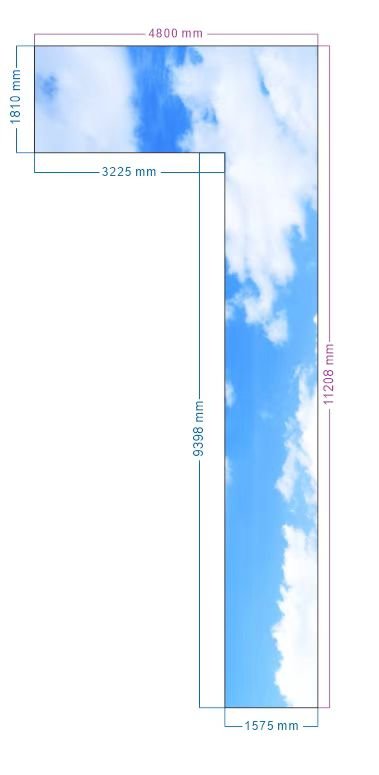

Then drawing has been made for light installation and fabric print. After that fabric has been printed as per the desired drawing.

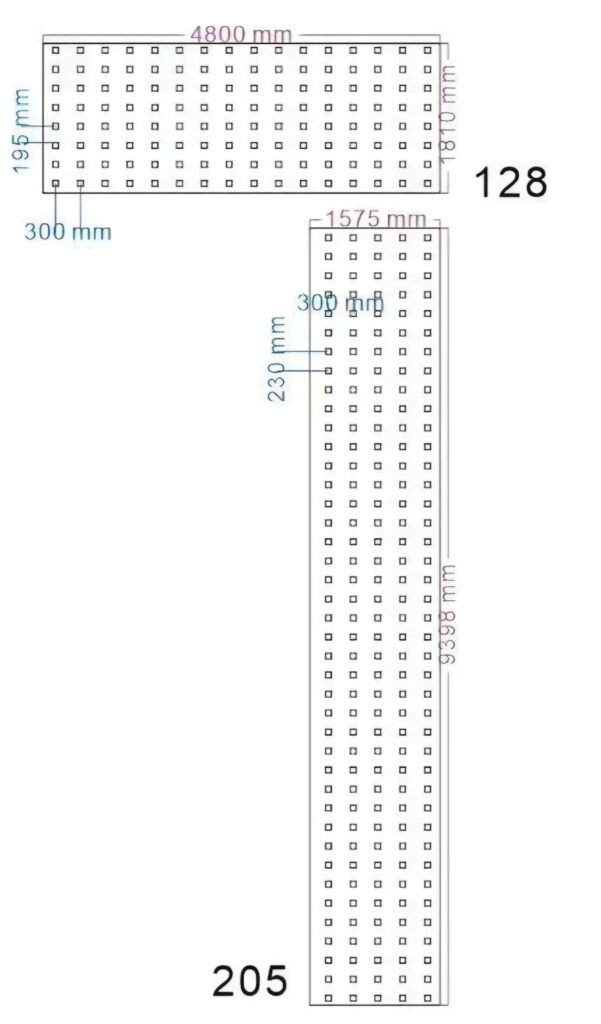

Led modules are then installed in a sequence to have an even light distribution.

After the installation of perimeter tracks or profiles, stretch fabric is fixed on fasteners to the profiles. Here is the final look after job completion.
