Window Style Sky Printed Backlit Stretch Fabric Ceiling Installation in a Hallway — Residential House, Rawalpindi | Newon Pakistan

Newon Pakistan designed, printed, fabricated, and installed a window-style open sky backlit stretch fabric ceiling in a residential hallway in Rawalpindi — transforming a standard corridor into a bright, airy space that feels open to the sky above. The installation covers a 12.6×9.6 foot area and features a custom printed sky-and-window-frame design backlit by evenly distributed LED modules within a white-painted reflective box. The client’s brief was simple: make this hallway feel spacious, open, and full of light. The result exceeded every expectation.

The Project: Turning a Narrow Rawalpindi Hallway into an Open Sky Experience

Hallways and corridors are among the most neglected spaces in residential design — and among the most powerful opportunities for a transformative lighting intervention. A hallway is the first interior space a visitor experiences and the space a homeowner transitions through dozens of times each day. In Pakistan’s typical residential construction, hallways are often narrow, windowless, and poorly lit — a functional necessity rather than a designed space.

Mr. Ali, Newon’s client for this project, had just completed construction of his new house in Rawalpindi and had a clear vision for his hallway ceiling. He didn’t want a conventional gypsum design, a chandelier, or even a statement pendant. He wanted the ceiling to feel like a window to the sky — a realistic, immersive sense of looking up through an open window at natural blue sky and clouds. He came to Newon with a reference image and a clear brief.

This is exactly the kind of project that Newon’s stretch fabric ceiling installation service was built for. We had previously completed a cloudy sky Barrisol stretch ceiling in an Islamabad hallway with outstanding results — and the Rawalpindi window-style project presented an opportunity to take the concept further with the addition of a realistic window-frame graphic overlaid on the sky design, deepening the spatial illusion.

“At Newon, we treat every project as a gem while putting our souls into the process to achieve the best results. Mr. Ali wanted an open sky — and that is precisely what we delivered. When the ceiling lights up and you look up from that hallway, it genuinely feels like you’re standing beneath a window to the sky.”— Newon Lighting Pakistan

The process from Mr. Ali’s first contact to final handover followed Newon’s complete turnkey workflow: site visit, measurement, design development, client approval, fabric printing, box fabrication, LED installation, on-site fitting, and final testing. At every stage, the client was kept fully informed and involved in the decisions that affected the outcome.

What Is a Backlit Stretch Fabric Ceiling? The Technology Explained

A backlit stretch fabric ceiling is a suspended ceiling system comprising three integrated components: a structural frame or box, an LED backlighting array, and a tensioned printed fabric panel. Together, these create a glowing, image-bearing ceiling surface that can replicate any visual — sky, clouds, forest, architecture, abstract art, or brand graphics — at any scale, with a soft, even illumination that looks natural and beautiful from any viewing angle.

The Stretch Fabric Membrane

The fabric panel is the visible surface of the system — the canvas on which the design appears. For backlit applications, the fabric must be translucent enough to transmit LED light evenly while being opaque enough to hide the LED modules and box structure behind it. Specialist stretch ceiling membranes — including the premium Barrisol system used in other Newon projects — are engineered precisely for this balance of translucency and opacity. The fabric is digitally printed using UV-stable inks before installation, ensuring the colours remain vivid and accurate under continuous backlighting over many years of use.

Stretch ceiling fabrics are also durable, moisture-resistant, and easy to clean — advantages that make them suitable for Pakistan’s range of climatic conditions, from humid Rawalpindi summers to cooler Islamabad winters. Should a fabric panel ever need replacement (due to accidental damage, or a design refresh), the stretch system allows the fabric to be removed and replaced without disturbing the structural box or LED installation.

The White-Painted Box: Why It Matters for Uniform Illumination

The cavity behind the stretch fabric is the engine room of the backlit ceiling. For the Rawalpindi project, Newon fabricated a wooden box to the exact dimensions of the ceiling area and — critically — painted all interior surfaces white before installing any LED components. This detail is not cosmetic: it is the fundamental engineering decision that determines whether the finished ceiling glows evenly or shows visible LED hot spots.

A white interior acts as a diffuse omnidirectional reflector. Light from each LED module bounces off every surface within the box before reaching the fabric panel — arriving from multiple angles simultaneously rather than in a direct beam. By the time it passes through the translucent fabric, the light has been mixed and scattered so thoroughly that no individual module is distinguishable. The result is a perfectly even, cloudless glow across every square centimetre of the ceiling panel. This is precisely why Newon paints the box white before any other step.

LED Module Selection and Spacing

The LED modules and drivers installed within the box are selected for their colour temperature, CRI, and lumen output relative to the box depth and fabric translucency. For sky-themed designs, a cool white or daylight CCT (5000K–6500K) produces a more natural, sky-like glow than warm white. Module spacing is calculated to ensure the lumen distribution is uniform — too wide apart and dimmer zones appear between modules; too close together and the centre brightness becomes disproportionate. Newon’s fabrication team calculates the correct grid spacing for each project based on the specific box dimensions and fabric specification.

The Window Style Design: Creating an Illusion of Infinite Space

The distinguishing feature of this Rawalpindi project — compared to Newon’s earlier cloudy sky ceiling in Islamabad — is the window-frame graphic overlaid on the sky design. Rather than simply presenting an open sky view, the window style design adds a realistic architectural element: a painted window frame, complete with frame moulding detail and sometimes sill, that appears to frame the sky view above.

Why the Window Frame Amplifies the Spatial Illusion

The human visual system reads window frames as reliable spatial cues — we have been conditioned since childhood to understand that a window frame means there is a real view beyond it. When a ceiling presents a window frame graphic backed by a sky image, the brain interprets the entire composition as an actual architectural opening rather than a decorated surface. The spatial illusion is significantly more convincing with the frame present than without it — the frame provides the contextual reference point that anchors the illusion in familiar experience.

In a narrow hallway — where ceiling height may be as low as 2.7 metres — this effect is particularly powerful. The hallway that physically extends only a few metres horizontally suddenly appears to open vertically to the sky. The psychological experience of walking through the hallway changes entirely: it feels light, airy, and open rather than constricted and enclosed.

Design Customisation for Mr. Ali’s Hallway

After taking site measurements and confirming the 12.6×9.6 foot ceiling area, Newon’s design team developed the window-frame-and-sky layout scaled to those exact proportions. The design was produced as a high-resolution digital layout and shared with Mr. Ali for approval before printing. This approval step is mandatory in Newon’s process — it is the client’s final opportunity to adjust the proportions, the sky mood, the cloud density, or the window frame style before the fabric goes to print.

Mr. Ali approved the design and Newon proceeded to print. The final printed panel — precisely sized to the 12.6×9.6 foot area — was produced in Newon’s workshop before being brought to site for installation.

Step-by-Step Installation Process: Rawalpindi Window Style Stretch Ceiling

Step 1 — Site Visit and Measurement

Newon’s team visited Mr. Ali’s newly constructed house in Rawalpindi and took precise measurements of the hallway ceiling: 12.6×9.6 feet. Ceiling height, wall conditions, power supply access, and the positions of any existing light fittings were all recorded. The site assessment confirmed that the space was suitable for a full-area backlit ceiling installation without any structural obstructions.

Step 2 — Design Development and Client Approval

Using Mr. Ali’s reference image as the creative brief, Newon’s design team developed the window-frame-and-sky layout in the correct proportions for a 12.6×9.6 foot ceiling. The digital preview was shared with the client, adjustments were made to his preferences, and final written approval was obtained before proceeding.

Step 3 — Fabric Printing

The approved design was sent to Newon’s wide-format printing system and printed onto the specialist stretch ceiling membrane. Printing is one of the most critical elements of the entire project — every colour value, every gradient in the sky, and every detail of the window frame moulding must be reproduced accurately at the full scale of the ceiling. UV-stable inks ensure the printed image remains vivid and accurate under continuous LED backlighting without fading or colour shift over time.

Step 4 — Wooden Box Fabrication with White Interior

A wooden box frame was fabricated to match the 12.6×9.6 foot ceiling area precisely. Before any LED components were installed, all internal surfaces — base, sides, and any cross-members — were painted white. This step is non-negotiable for achieving the even backlit result that Newon’s stretch ceiling projects are known for.

Step 5 — LED Module Installation

LED modules were installed within the white-painted box in a precisely spaced grid, calculated to deliver uniform lumen distribution across the full 12.6×9.6 foot area. All modules were connected to a compatible LED driver, wired back to the power supply point, and tested for even output before the box was transported to site.

Step 6 — Perimeter Profile Installation

Perimeter aluminium tracks were fixed to the hallway walls at the ceiling line, level and securely anchored into the wall structure. The profiles were positioned to achieve the target finished ceiling height, accounting for the depth of the LED box cavity above. Precise levelling at this stage ensures the finished fabric surface sits perfectly flat without any visible sag or unevenness.

Step 7 — Stretch Fabric Tensioning and Finishing

The printed fabric panel was heated to make it pliable and then stretched progressively around all four sides of the perimeter profile using specialist tensioning tools. Working from the centre of each side outward — and alternating between opposite sides — ensures the tension is built up evenly across the full panel, preventing wrinkles or distortion of the printed image. The fabric edges were secured within the aluminium profile housing and trimmed for a clean, shadow-line finish at the perimeter.

Step 8 — Final Testing and Handover

With the fabric in place, the LED system was switched on for final inspection. The finished ceiling was evaluated from multiple positions and viewing angles — checking for even illumination, correct sky colour rendering, sharpness of the window-frame graphic, and overall fabric tension. Mr. Ali was present for the final inspection and expressed his satisfaction immediately. Newon provided operating instructions and warranty documentation at handover.

Technical Specifications: Window Style Sky Stretch Ceiling — Rawalpindi Installation

Parameter	Specification
Project Type	Backlit Sky Printed Stretch Fabric Ceiling — Residential Hallway
Location	Private Residence, Rawalpindi, Pakistan
Ceiling Area	12.6 × 9.6 feet (approx. 3.84 × 2.93 metres / 11.2 m²)
Design Theme	Window-frame and open sky (blue sky with clouds)
Fabric Type	Translucent stretch ceiling membrane (PVC-coated polyester)
Print Technology	Wide-format digital print, UV-stable inks
Box Construction	Wooden frame, white-painted interior for diffuse reflection
Light Source	LED modules in grid layout
Colour Temperature	Cool white / Daylight (5000K–6500K) for natural sky effect
LED Driver	Compatible constant-voltage LED driver
Perimeter System	Aluminium profile track with fabric tensioning system
Fabric Finish	Matte / semi-gloss translucent — no visible LED hotspots
Moisture Resistance	Suitable for Pakistani climate — humidity resistant fabric
Maintenance	Fabric wipeable; LED module access via fabric removal if required
Installation Duration	3–5 days total (including off-site fabrication and printing)

For Homeowners: Is a Backlit Stretch Ceiling Right for Your Home in Pakistan?

If you are building or renovating a home in Rawalpindi, Islamabad, Lahore, or anywhere in Pakistan and want a ceiling that makes a genuine statement — not just a chandelier or a pop ceiling — a backlit sky stretch ceiling is worth serious consideration. Here is what Pakistani homeowners most commonly ask before committing to the project.

Which Rooms Work Best?

The most impactful rooms for backlit sky ceilings are those where the ceiling is the primary visual focus and where natural light or a sense of spaciousness is most valuable. In Pakistani homes, these typically include:

• Hallways and entrance lobbies — the classic application, as demonstrated in this Rawalpindi project and Newon’s Islamabad hallway project
• Master bedrooms — a full ceiling sky creates a calming, immersive sleep environment
• Drawing rooms and formal lounges — a statement ceiling that replaces the need for elaborate wall decoration
• Bathrooms — particularly effective in windowless or internal bathrooms, where a sky ceiling transforms the atmosphere entirely
• Children’s bedrooms — sky, stars, jungle, or fantasy themes create a magical environment that children love
• Home offices and study rooms — a natural sky above helps offset the psychological compression of long indoor work sessions

What About Pakistan’s Climate — Will It Last?

Stretch ceiling fabrics used by Newon are specifically manufactured to withstand humidity, temperature variation, and continuous backlighting without sagging, fading, or degrading. Rawalpindi’s humid summers and Islamabad’s cooler winters are well within the operating range of the materials. The UV-stable printing inks ensure the sky image remains vivid without colour shift over many years of use. For rooms in areas prone to WAPDA supply fluctuations, Newon also recommends pairing the LED system with a surge-protected driver to maximise LED lifespan.

Can I Change the Design Later?

Yes. One of the practical advantages of the stretch fabric system is that the fabric panel can be removed, replaced, or reprinted at any point without disturbing the structural box and LED installation. If your preferences change, or if you want to update the design for a renovation, Newon can supply a new printed panel sized to the existing frame. The box and LED system remain in place — only the fabric changes. This makes a stretch ceiling a long-term investment rather than a permanent commitment to a single design.

For Architects and Interior Designers: Specifying Backlit Stretch Fabric Ceilings in Pakistan

Backlit stretch fabric ceilings are increasingly specified by architects and interior designers in Pakistan for premium residential, boutique hospitality, and high-end commercial projects. If you are considering them for a current or upcoming project, here are the specification points most relevant to your work.

Design File Requirements

For custom printed ceilings, Newon requires a high-resolution design file — minimum 150 DPI at print size for photographic images, or vector format (AI, EPS, or PDF) for graphic and architectural motifs. If the client supplies a concept image at lower resolution, Newon can upscale and retouch within reasonable limits, but the ideal workflow is a resolution-correct file delivered to Newon’s workshop before the print production run begins.

Box Depth and Ceiling Height Impact

The structural box requires a cavity of 150–250mm above the finished fabric face for adequate LED light mixing before it reaches the fabric panel. On a 2.7 metre-high ceiling, this reduces the finished ceiling height to approximately 2.45–2.55 metres — acceptable in most residential applications. For rooms where ceiling height is critical, discuss box depth optimisation with Newon during the design development stage. Shallower boxes (150mm) require higher-density LED module placement to compensate for reduced mixing distance.

Specification for Hospitality and Commercial Projects

For commercial and hospitality applications, Newon recommends upgrading to Barrisol-grade fabric — the system used in Newon’s Islamabad Barrisol installation — which offers superior fire resistance classification, higher-precision tensioning tolerances, and a wider range of translucency options. Barrisol membranes are also available in non-printed translucent white for pure backlit glow applications, and in specific light transmission percentages for precise lux control. Contact Newon for Barrisol product samples and technical data sheets.

Newon has also completed a backlit stretch fabric ceiling for a car detailing studio and a medical clinic in Islamabad — projects that demonstrate the material’s versatility across very different commercial environments.

For Contractors and Builders: Including Stretch Ceiling in Residential Fit-Out Packages

If you are a contractor or builder completing residential fit-outs in Rawalpindi, Islamabad, or other Pakistani cities, adding backlit stretch ceiling to your client offering differentiates your work immediately. It is a premium product that homeowners are increasingly requesting — and one that commands a proportionally higher margin than standard gypsum or POP ceiling work.

Newon offers trade accounts for contractors who regularly require stretch ceiling supply and installation. Benefits include preferential project pricing, priority scheduling, and dedicated project support from Newon’s technical team. Newon handles the printing, fabrication, and installation — you offer the product to your clients and coordinate the schedule. Contact us at +92 343 9227883 or info@newon.pk to discuss a trade arrangement.

Stretch Ceiling Design Variations Available from Newon Pakistan

The window-style open sky theme used for the Rawalpindi project is one of Newon’s most popular residential designs — but it is just one of many options available. Here is a guide to the most requested stretch ceiling design themes for Pakistani homeowners and designers:

Sky and Cloud Themes

The most universally popular category. Options range from clear blue sky (maximum brightness effect), to scattered cumulus clouds (natural and airy), to dramatic stormy or sunset skies (bold and artistic). The cloudy sky Barrisol installation in Islamabad and the current Rawalpindi window-style project are both variations within this category.

Forest Canopy and Nature Themes

Green forest canopy ceilings — looking up through leaves and branches — are increasingly popular for bedrooms, wellness spaces, and spa rooms. Combined with a cool white or green-tinted LED backlight, they create a calming, biophilic atmosphere that is psychologically restorative.

Starry Night and Galaxy Themes

For a complementary product, Newon’s fibre optic star ceiling system creates a starry night effect using actual point-light fibre optic strands rather than a printed image — a different technology with its own unique tactile and visual character. Starry night designs can also be produced as printed stretch ceilings for spaces where fibre optic installation is not practical.

Geometric and Abstract Designs

For contemporary commercial interiors and modern residential spaces, geometric, architectural, or abstract graphic designs on backlit stretch ceilings create striking feature moments without the literalism of sky or nature themes. Newon’s design team can develop custom artwork or work from client-supplied brand graphics.

Branded and Custom Commercial Designs

For commercial applications — hotel lobbies, restaurant ceilings, retail environments, and corporate offices — branded designs incorporating logos, patterns, or custom artwork are produced to exact client specifications. Newon has completed stretch ceiling projects for a car detailing studio and a medical clinic — demonstrating the product’s commercial versatility.

Related Stretch Ceiling and Specialist Lighting Projects by Newon Pakistan

Newon has completed multiple stretch fabric ceiling and specialist architectural lighting projects across Pakistan. The following documented projects are directly relevant to this category:

• Cloudy Sky Printed Backlit Barrisol Stretch Ceiling — Hallway, Islamabad — The companion project to this Rawalpindi installation — same application, same sky theme, premium Barrisol membrane — in a residential hallway in Islamabad.
• Stretch Fabric Ceiling + Linear Lighting — Car Detailing Studio, Pakistan — Commercial stretch ceiling installation combined with architectural linear wall and ceiling lighting for a premium automotive studio.
• Round Stretch Fabric Ceiling Lights — Medical Clinic, Islamabad — Round-profile embedded stretch fabric ceiling lighting for a clinical interior environment.
• Fibre Optic Star Ceiling — DHA House, Islamabad — The point-light alternative to printed sky ceilings — actual fibre optic stars embedded in a residential ceiling, DHA Islamabad.
• Fibre Optic Star Ceiling in Gypsum Ceiling — Fibre optic star lighting integrated into a standard gypsum false ceiling — compatible with most existing residential ceiling construction in Pakistan.
• Jacuzzi Room Luxury Lighting — LED Strip, Star Ceiling, Infinity Mirror — Multi-element luxury residential lighting project including star ceiling feature lighting, LED strip backlighting, and infinity mirror installation.
• Contemporary House Facade Lighting — City Housing Sialkot — Premium residential exterior facade lighting to complement interior design investments.
• Fibre Optic Curtain Light — Fauji Foundation Girls College, Rawalpindi — Another Rawalpindi specialist lighting project — therapeutic fibre optic curtain for special children’s sensory room.

Frequently Asked Questions — Backlit Stretch Fabric Ceiling Pakistan

What is a backlit stretch fabric ceiling and how does it work?

A backlit stretch fabric ceiling is a suspended ceiling system where LED modules installed inside a structural box cavity backlight a tensioned, digitally printed fabric panel from behind. The printed image — sky, clouds, a window view, or any custom design — glows evenly across its full surface, creating the appearance of a naturally illuminated architectural element. The white-painted interior of the box diffuses the LED light before it reaches the fabric, eliminating hot spots and ensuring perfectly uniform illumination from edge to edge.

What is a window style stretch ceiling design?

A window style stretch ceiling features a printed graphic of a window frame — complete with realistic architectural detail — overlaid on a sky-and-cloud background. The window frame graphic provides the spatial reference that makes the brain interpret the ceiling as a real architectural opening rather than a decorated surface, significantly amplifying the sense of space and openness. It is one of the most effective techniques for making a narrow hallway or windowless room feel open and airy.

What size area can Newon install a stretch ceiling over?

Newon installs backlit stretch ceilings from small bathroom-sized areas (2–3 m²) up to large commercial spaces of 50 m² and beyond. Single seamless panels are available up to approximately 5 metres in width. Wider spaces use joined panels with near-invisible seams. The Rawalpindi hallway installation covered 12.6×9.6 feet — a typical mid-sized residential hallway area that is comfortably within a single-panel specification.

Why is the wooden box painted white inside?

The white interior acts as a diffuse light reflector. LED light bouncing off white surfaces scatters in all directions before reaching the fabric panel, mixing completely so that no individual LED module is visible through the fabric. A dark interior would create visible bright spots above each module and darker zones in between. The white paint is the single most important factor in achieving a hot-spot-free, uniform backlit result.

How long does installation take from order to completion?

Total project time from confirmed order to completed installation is typically 3–5 days for a standard residential hallway-sized project. This includes off-site fabric printing and box fabrication (2–3 days) plus on-site installation (1–2 days). More complex projects or larger areas require proportionally more time. Newon provides a project schedule at quotation stage so clients can plan their renovation timeline accordingly.

Can the stretch ceiling design be changed after installation?

Yes. The stretch fabric panel can be removed and replaced without disturbing the structural box or LED installation. A new printed panel to the same dimensions can be ordered at any time — allowing the design to be updated without a full reinstallation. This makes the stretch ceiling system a long-term infrastructure investment rather than a permanent aesthetic commitment.

How much does a backlit stretch fabric ceiling cost in Pakistan?

Cost depends on the ceiling area, fabric type (standard or Barrisol-grade), design complexity, and LED specification. Newon provides a detailed quotation after a free site visit and measurement. For homeowners in Rawalpindi and Islamabad, contact Newon at info@newon.pk or WhatsApp +92 343 9227883 to arrange a visit.

Here are the images and stepwise installation, alongwith the final product.

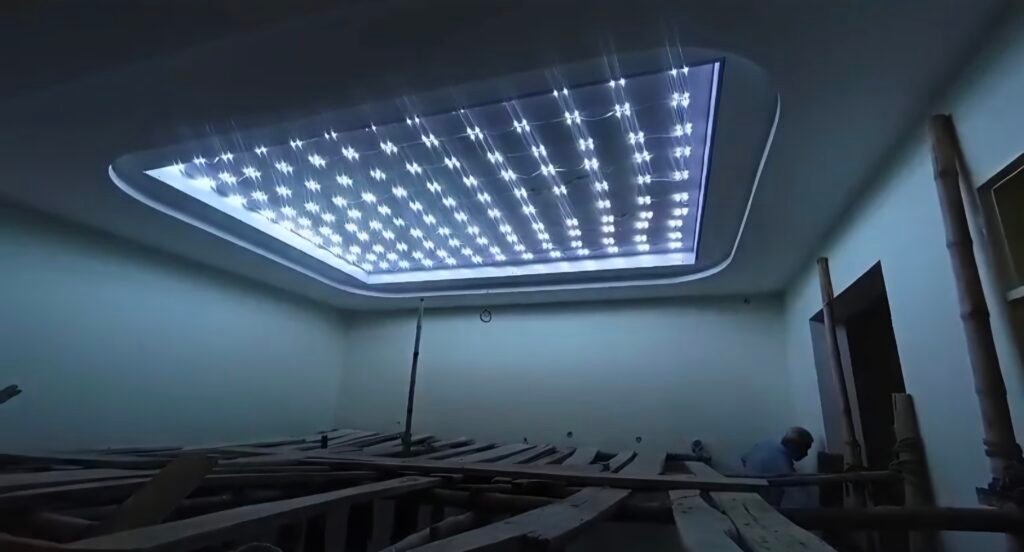

Led modules are then installed in a sequence to have an even light distribution.

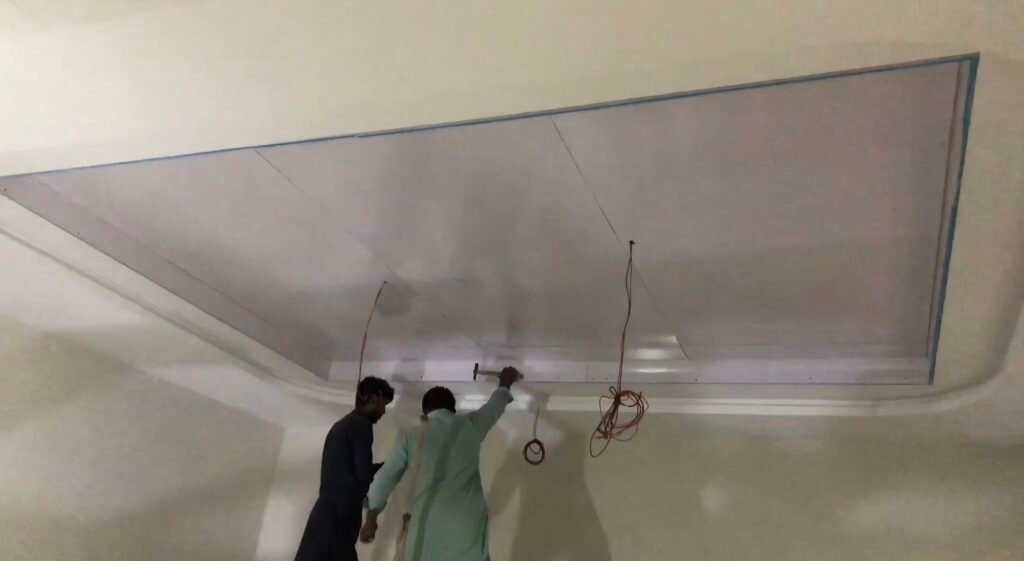

After the installation of perimeter tracks or profiles, stretch fabric is fixed on fasteners to the profiles.

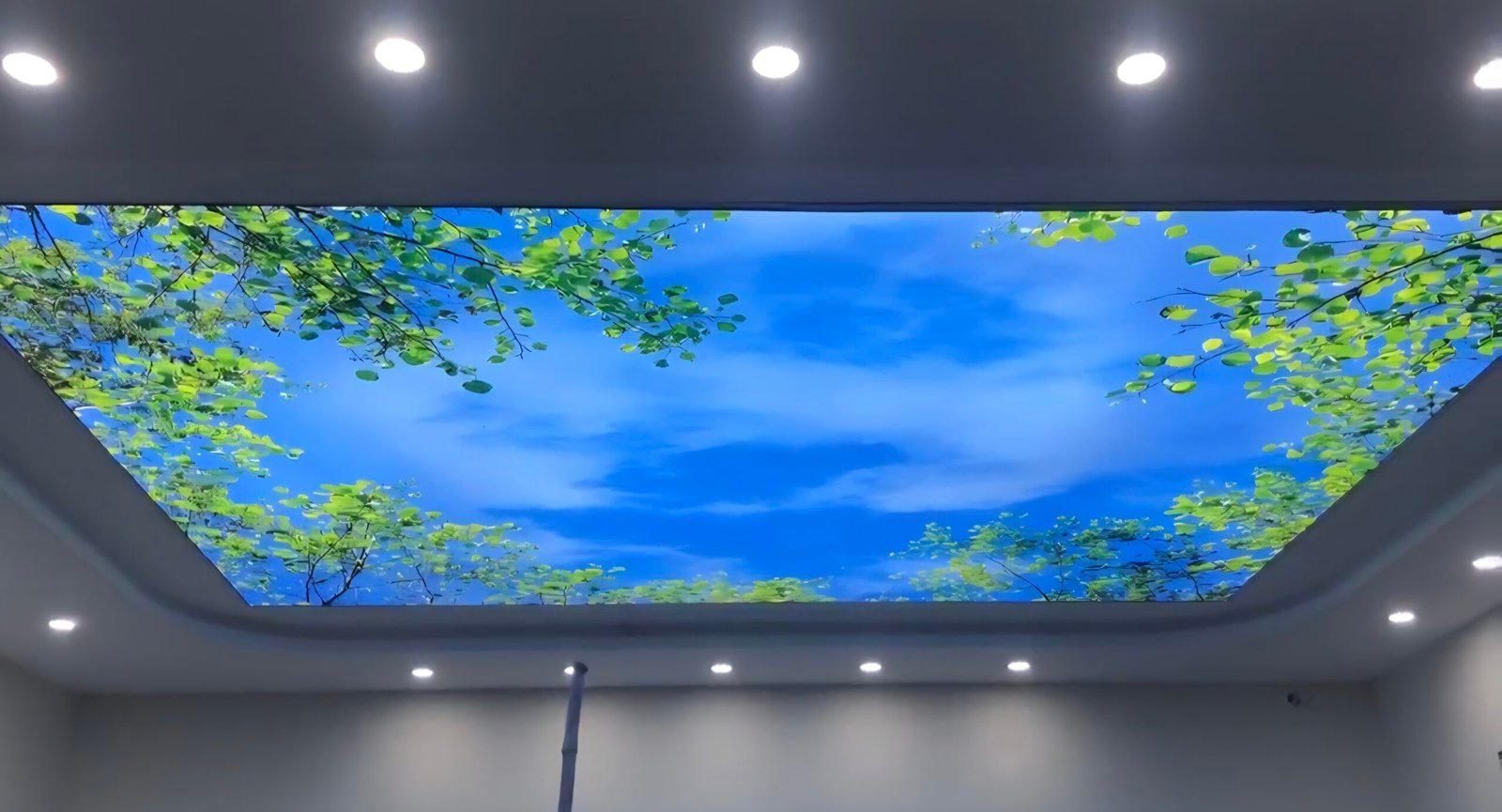

Below is the picture from the site after job completion. Client is very happy with the final results and we are more happy than him to exceed his expectations.
