Commercial building facade lighting project – Union square D-12 Islamabad

In Pakistan’s increasingly competitive commercial real estate market, a building’s nighttime appearance is no longer an afterthought — it is a business asset. The right facade lighting transforms a commercial plaza from an anonymous structure into a recognised landmark, drawing footfall, communicating quality to prospective tenants, and creating a visual identity that works around the clock.

This project documents the commercial facade lighting installation completed by Newon for Union Square — a modern commercial plaza in the prime location of D-12, Islamabad. The installation used RGB pixel LED strip lights controlled via an H807SA Artnet DMX controller, paired with silicone profile diffusers, to create a fully programmable dynamic lighting system across 140 linear metres of facade.

This case study is intended for commercial building owners evaluating facade lighting for their properties, architects and lighting designers specifying systems for commercial projects, and developers and contractors planning exterior lighting for plazas, office buildings, or mixed-use developments across Pakistan.

Project Overview: Union Square Commercial Plaza, D-12 Islamabad

Union Square is positioned in D-12 — one of Islamabad’s most actively developing commercial corridors, where competition for visual prominence among commercial buildings is intensifying. The building management required a facade lighting solution that would:

• Create a distinctive, recognisable nighttime identity for the plaza
• Highlight the building’s modern architectural grid and structural geometry
• Enable dynamic, programmable lighting effects for branding, events, and seasonal occasions
• Withstand Islamabad’s outdoor conditions reliably across all seasons
• Operate efficiently with minimal ongoing maintenance requirements

Newon’s team conducted a full site assessment of the building, reviewed the architectural drawings, and designed a lighting system that works with the building’s existing structural grid — turning its curtain wall framework into the primary visual element of the nighttime facade.

“For commercial buildings, facade lighting is not decoration — it is communication. Every night the building is switched on, it is broadcasting its identity to everyone who passes.”
— Newon Design Team

This project joins Newon’s growing portfolio of commercial architectural lighting installations across Pakistan, including the DHA Phase 2 Mosque facade, HIT Officers Mess Taxila, Rashakai Special Economic Zone, and Movenpick Hotel Centaurus Islamabad.

Architectural Context: Curtain Wall, ACP Panels, and Structural Grid

Understanding the building’s architecture is the essential first step in any facade lighting design. Union Square features a capped curtain wall system as its primary facade material — a modern glass and aluminium framework widely used in contemporary commercial architecture across Islamabad and Pakistan’s other major cities.

Key architectural features of the building include:

• Capped curtain wall glass facade — creating a reflective, contemporary exterior skin across the main building face
• Aluminium Composite Panel (ACP) sections at the top and base of the structure — providing solid panel surfaces for lighting integration
• Structural grid pattern along the upper portion — a strong linear framework of vertical and horizontal elements ideal for linear LED lighting

The structural grid was the key design opportunity. Rather than flood-lighting the entire facade, the lighting design uses the grid itself as the lighting canvas — tracing each structural line with RGB pixel LEDs to reveal and amplify the building’s geometry at night.

This is the fundamental principle of good architectural facade lighting: work with the architecture, not against it. The building’s own design becomes the artwork; the lighting simply makes it visible after dark.

Lighting Design Concept: Programmable Identity Through RGB Pixel Technology

The design brief for Union Square went beyond simple illumination. The client required a system capable of static display for everyday use and dynamic programmable effects for events, promotions, and special occasions — giving the building a living, adaptable nighttime presence.

Design Objectives

• Trace the structural grid with continuous linear light to enhance the building’s geometric identity
• Enable full RGB colour control — allowing the building to display brand colours, themed lighting scenes, and special event displays
• Achieve uniform illumination with no hotspots, dark sections, or visible individual LED points
• Ensure long-term outdoor durability through appropriate weatherproofing of all components
• Future-proof the installation through a professional-grade controller platform that allows programming updates without hardware changes

Why RGB Pixel LED Technology Was Selected

Standard static white LEDs would have illuminated the facade but offered no flexibility. Addressable RGB pixel LEDs were selected because they allow each point of light along the facade to be individually controlled — enabling the full range from clean static white illumination to complex multi-colour animations and branded colour schemes.

For a commercial property in a prime Islamabad location, this programmability is a significant long-term asset: the building’s appearance can be updated for Eid celebrations, national days, corporate events, and tenant branding without any physical changes to the installed hardware.

Lighting Fixtures and System Components

1. RGB Pixel LED Strip Lights — 140 Metres

The primary lighting element consists of waterproof RGB pixel LED strip lights installed in dual rows along the structural joints of the ACP panel sections. The dual-row configuration increases the luminous output and creates a more visually impactful line of light across the facade.

Specification	Detail
Total LED strip length	140 metres
Configuration	Dual rows of RGB pixel strips per channel
Type	Addressable RGB pixel — individually controllable
Waterproofing	Outdoor rated — IP65 minimum
Application	Structural grid lines, ACP panel joints, facade edges

Newon supplies a full range of addressable LED and pixel lighting products online — including addressable RGBW linear lights, pixel lights, and RGB pixel lights — available with delivery across Pakistan.

2. Power Supply System — 10 × 400W Rainproof Units

Powering 140 metres of dual-row RGB pixel LED strip requires substantial, reliable power delivery. The system uses 10 rainproof 400W power supplies, distributed across the facade to minimise voltage drop across long LED runs — a critical technical consideration often overlooked in lower-quality installations.

Specification	Detail
Number of power supplies	10 units
Rating per unit	400W
Total system power	4,000W
Protection rating	Rainproof — suitable for outdoor installation
Purpose	Stable voltage delivery across full 140m LED run

Proper power supply specification is one of the most important — and most frequently underestimated — aspects of commercial LED facade projects. Underpowered or poorly distributed power supplies cause voltage drop, colour inconsistency, and premature LED failure. Newon’s engineering approach ensures every component is correctly sized for the installation.

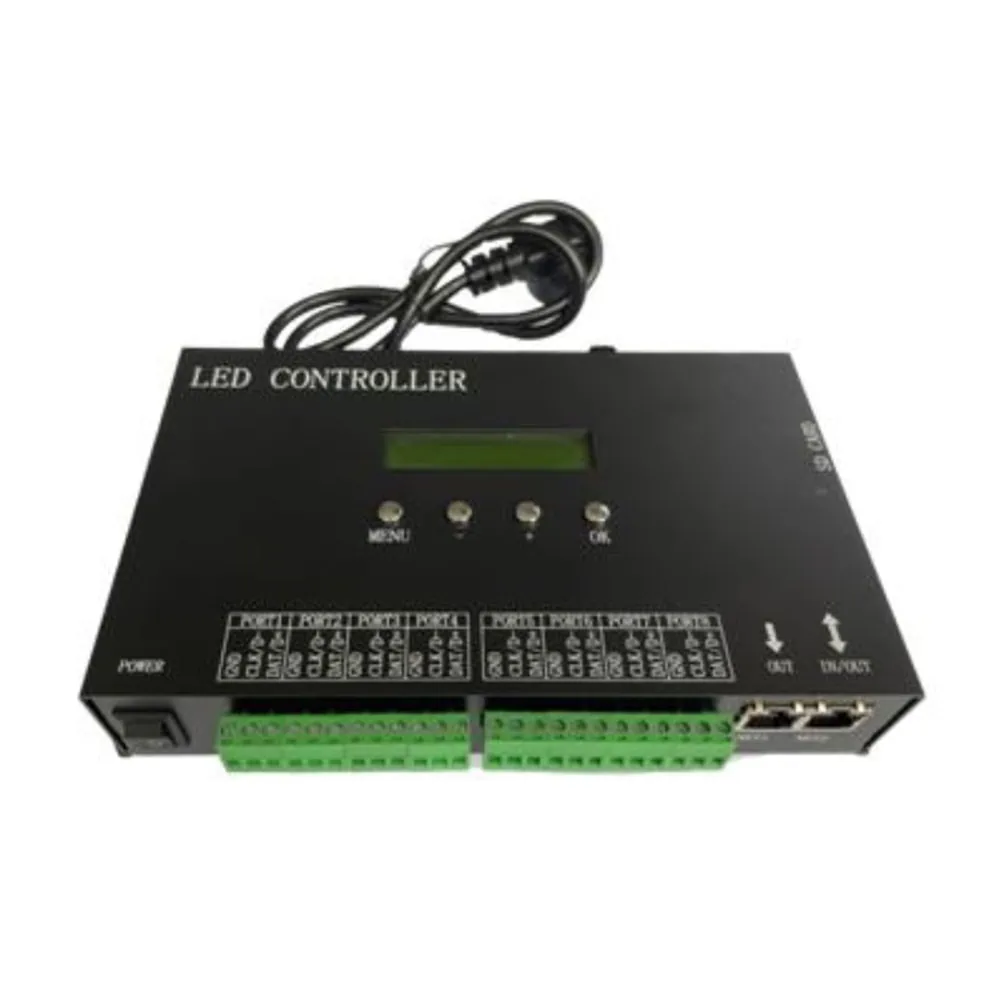

3. H807SA Artnet LED Controller

The entire pixel LED system is managed through an H807SA Artnet LED controller — a professional-grade lighting control platform used in architectural and entertainment lighting installations globally.

Feature	Capability
Protocol	Art-Net — industry-standard network lighting control
Control type	Full individual pixel addressing across all 140m
Lighting scenes	Unlimited programmable static and dynamic scenes
Effects capability	Colour chasing, fading, strobing, custom animations
Update method	Software — no hardware changes required for new scenes

The Artnet controller transforms the building from a statically lit structure into a fully programmable visual communication platform. For a commercial plaza in D-12 Islamabad, this means the lighting can be updated for Pakistan’s national days, Eid and Ramadan, tenant branding requirements, or special events — all through software, without touching the physical installation.

Newon stocks a full range of LED addressable controllers and DMX systems, including the LED 510 main controller and DMX sub-controller 408, for projects of all scales.

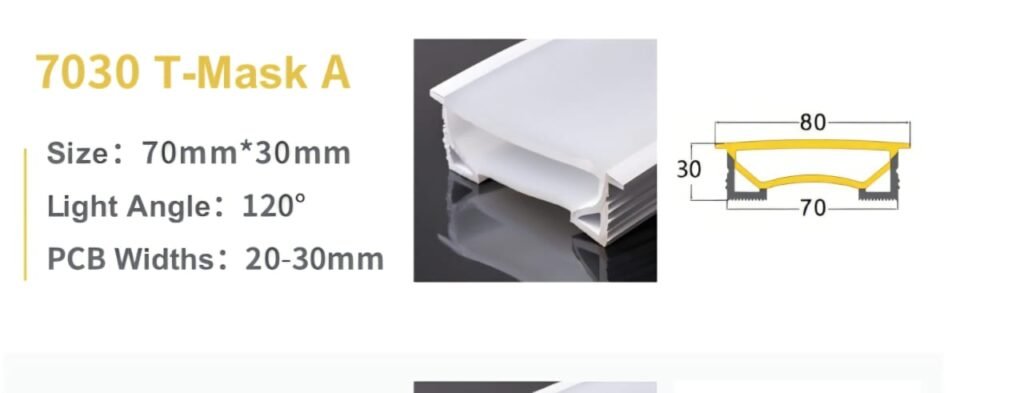

4. Silicone Profile Diffusers — 70 Metres

To protect the LED strips and produce a smooth, professional finish, 80mm silicone profiles with collar fittings were installed within the ACP panel joints across 70 linear metres of the facade.

Specification	Detail
Profile type	80mm silicone with collar fitting
Total length installed	70 metres, recessed in ACP panel joints
Primary function 1	Weatherproof housing — dust, rain, UV protection for LED strip
Primary function 2	Light diffusion — eliminates hotspots, creates smooth continuous glow
Installation method	Recessed within structural ACP joint channels

The recessed installation of the silicone profiles within the ACP joints ensures the lighting elements are flush with the facade surface — invisible by day, elegant by night. This is the hallmark of a professional architectural lighting installation as opposed to surface-mounted fixtures that remain visually intrusive even when switched off.

Newon supplies a comprehensive range of silicone profile options including the silicon profile with collar, flexible silicon profile, and recessed diffuser duct variants.

Installation Process: Engineering a Commercial Facade Lighting System

A commercial-scale facade lighting installation of this complexity requires precise engineering at every stage. Here is how Newon approached the Union Square project:

Stage 1 — Architectural Assessment and System Design

Newon’s team reviewed the building’s architectural drawings and conducted a site survey to map the exact linear metres of structural grid available for lighting integration, identify optimal power supply positions, plan cable routing through the building structure, and confirm the controller location for network access.

Stage 2 — Power Distribution Planning

The ten 400W power supplies were positioned at calculated intervals along the facade to maintain consistent voltage delivery across the full 140-metre LED run. This distribution approach eliminates the voltage drop and colour shift that compromise large-scale LED installations when powered from a single source.

Stage 3 — Silicone Profile Channel Preparation

The ACP panel joints were prepared to receive the 80mm silicone profiles — ensuring precise alignment and a flush finish that integrates cleanly with the panel seams. Recessing the profiles within the existing joint channels removes the need for any surface-mounted brackets or visible fixings.

Stage 4 — LED Strip and Profile Installation

The dual-row RGB pixel strips were installed within the silicone profiles, which were then seated into the prepared ACP channels. All joints and end caps were sealed to maintain continuous weatherproofing along the full run.

Stage 5 — Wiring, Power Connection, and Controller Setup

All data and power cables were routed through concealed conduit within the building structure. The H807SA Artnet controller was installed and networked, and initial lighting scenes were programmed and tested for correct pixel addressing across all 140 metres.

Stage 6 — Night Commissioning and Scene Programming

The system was commissioned at night with the building management team present, testing static white scenes, full RGB colour capability, and dynamic animation effects. Final adjustments to brightness levels, colour balance, and scene transitions were made before handover.

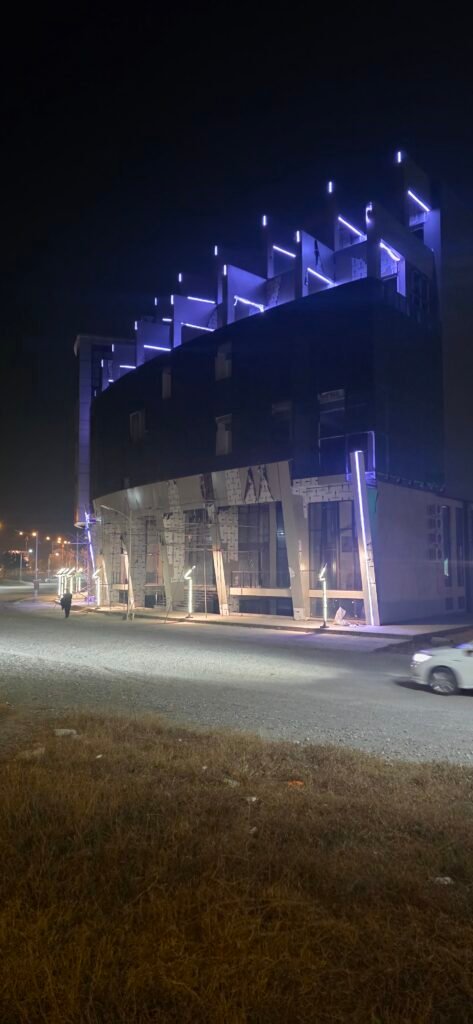

Final Result: A Commercial Landmark After Dark

The completed Union Square facade lighting installation achieves everything the original brief required — and more. The building now presents a dramatically different character after sunset: the structural grid that defines its architecture by day becomes a luminous framework of programmable light by night.

Key outcomes of the completed installation:

• Clean, continuous illuminated grid lines trace the full height and width of the building facade
• Full RGB programmability allows the building to display any colour, scene, or animation without hardware changes
• Uniform light distribution with no visible hotspots or dark zones across the 140-metre installation
• Professional recessed finish — profiles flush with ACP panels, invisible during daylight hours
• Enhanced commercial prominence in the D-12 streetscape, improving visibility and perceived quality of the plaza
• Long-term durability through weatherproof fixtures and rainproof power supplies rated for Pakistan’s outdoor conditions

Beyond the aesthetic result, architectural facade lighting delivers measurable commercial benefits: increased tenant inquiries, improved footfall perception, stronger brand identity for anchor tenants, and higher perceived property value — all documented outcomes in commercial real estate markets across Pakistan and internationally.

Planning Commercial Facade Lighting for Your Building in Pakistan

If you are a building owner, property developer, or facilities manager considering facade lighting for a commercial property, here are the key decisions to plan for:

Static White vs RGB vs Addressable Pixel

Static warm or neutral white lighting produces an elegant, permanent architectural effect and is the most cost-effective option for most commercial buildings. RGB systems add colour capability without per-pixel control. Addressable pixel systems like the one at Union Square offer complete creative programmability and the highest impact — but require more sophisticated control infrastructure. Newon’s team will recommend the right technology tier for your building type and budget.

Integration with Building Architecture

The best facade lighting systems are designed around the building’s existing architectural features — its grid, its joints, its edges — rather than applied over them. Buildings with curtain wall systems, ACP panels, or strong linear geometry are ideal candidates for recessed profile lighting. Newon assesses every building individually before proposing a design.

Maintenance and Longevity

Commercial installations must operate reliably for years without significant maintenance. Newon specifies components with appropriate IP ratings, UV resistance, and power supply quality for each project environment — ensuring the system performs consistently across Islamabad’s full weather range.

Budget and ROI

Commercial facade lighting is an investment with measurable returns — in tenant attraction, footfall, and property value. Newon provides detailed project quotations with full system breakdowns, allowing clients and their accountants to evaluate the investment accurately. LED technology also ensures operating costs remain minimal — important for building managers managing WAPDA electricity costs across large commercial properties.

For Architects, Engineers & Contractors: Commercial Facade Lighting Specification

Newon works directly with architectural and engineering firms, lighting consultants, and main contractors across Pakistan to specify and supply commercial facade lighting systems. Our services for trade and professional clients include:

• Full technical documentation — IP ratings, lumen output, CRI, power consumption, controller specifications, and wiring diagrams available for all products
• System design support — Newon’s team can review architectural drawings and propose lighting layouts, fixture specifications, and control system designs
• Bulk and project pricing — competitive rates for large-volume orders, with staged delivery to match construction programmes
• On-site installation — Newon’s installation team is available for commercial projects across Pakistan through the professional facade lighting installation service
• Post-installation support — controller programming, scene updates, and technical support after project handover

For international projects — particularly premium commercial and hospitality developments in the UAE and GCC region — newon.ae provides equivalent supply and consultation services for architects and contractors in Dubai and across the Middle East.

To request a project consultation, technical specifications, or a commercial quotation:
📧 info@newon.pk  |  📞 +92 343 9227883  |  💬 WhatsApp

More Commercial and Architectural Lighting Projects by Newon

• Mosque Facade Lighting — DHA Phase 2, Islamabad
• Building Facade & Landscape Lighting — HIT Officers Mess, Taxila
• LED Street Lighting — Rashakai Special Economic Zone
• Nightclub Lighting — Movenpick Hotel Centaurus, Islamabad
• Commercial Office Lighting — HBL Zarai Services, AJ Towers Islamabad
• Contemporary House Facade Lighting — City Housing, Sialkot
• View All Newon Projects →

Frequently Asked Questions — Commercial Facade Lighting Pakistan

What is RGB pixel LED facade lighting and how does it work?

RGB pixel LED facade lighting uses individually addressable LED nodes — each pixel can display a specific colour, brightness, and animation independently. When synchronised via a controller like the H807SA Artnet, thousands of pixels create dynamic colour sequences, branded displays, and architectural animation effects across the entire building facade. This makes the building a fully programmable visual asset at night.

What is an Artnet LED controller and why is it used in commercial projects?

An Artnet controller is a professional lighting control platform that drives addressable LED systems via a network protocol. It allows designers to program complex colour sequences, dynamic animations, and multi-zone lighting scenes. For commercial buildings, it enables the facade to display branded colours, seasonal themes, and event-specific scenes — updated through software without touching the hardware. The H807SA used at Union Square D-12 supports full RGB pixel control across the entire 140-metre installation.

Why is silicone profile used alongside LED strip lights on a facade?

Silicone profile serves as both a weatherproof housing — protecting the LED strip from dust, rain, and UV in Pakistan’s outdoor climate — and as a diffuser, eliminating hotspots and producing a smooth, continuous line of light. The combination delivers a professional architectural finish and ensures the LED strips perform reliably for years without maintenance.

How much does commercial facade lighting cost in Pakistan?

Costs vary based on building dimensions, fixture specification (static, RGB, or addressable pixel), control system complexity, and installation scope. Newon provides detailed project quotations for all commercial clients. Contact us via WhatsApp or email info@newon.pk for a free consultation.

Can Newon design facade lighting for any commercial building in Pakistan?

Yes. Newon designs and installs facade lighting for commercial plazas, office buildings, hotels, mosques, educational institutions, and mixed-use developments across Pakistan. Completed projects span Islamabad, Rawalpindi, Taxila, Lahore, Sialkot, Karachi, Peshawar, and beyond.

What is a curtain wall and how does it affect facade lighting design?

A curtain wall is a non-structural glass and aluminium cladding system forming the outer skin of modern commercial buildings. Its structural grid of vertical and horizontal framing members provides ideal channels and anchor points for linear LED lighting — as demonstrated at Union Square D-12, where the existing ACP panel joints were used to recess the silicone profiles flush with the facade surface.

About Newon — Pakistan’s Commercial and Architectural Lighting Specialists

Newon is Pakistan’s leading architectural and commercial lighting specialist, headquartered at Haroon Plaza, Islamabad, and serving clients across the country. With over 35 completed documented projects — spanning commercial plazas, hotels, government institutions, restaurants, mosques, and residential developments — Newon brings unmatched depth of experience to every facade lighting brief.

The company supplies Pakistan’s most comprehensive range of architectural lighting products — from addressable pixel LED systems and DMX controllers to silicone profiles, facade wall washers, fibre optic systems, stretch fabric ceiling lighting, and solar lighting solutions — all available at newon.pk with delivery across Pakistan.

For UAE, GCC, and Middle East architectural projects, Newon operates newon.ae.

Ready to transform your building’s nighttime presence? Let’s talk.

📧 info@newon.pk
📞 +92 343 9227883
💬 WhatsApp: +92 343 9227883
📍 Office No 2, First Floor, Haroon Plaza, Islamabad, Pakistan
🌐 View our Facade Lighting Installation Service →

All the pictures and project details are shown below in images form, including the final finished form.

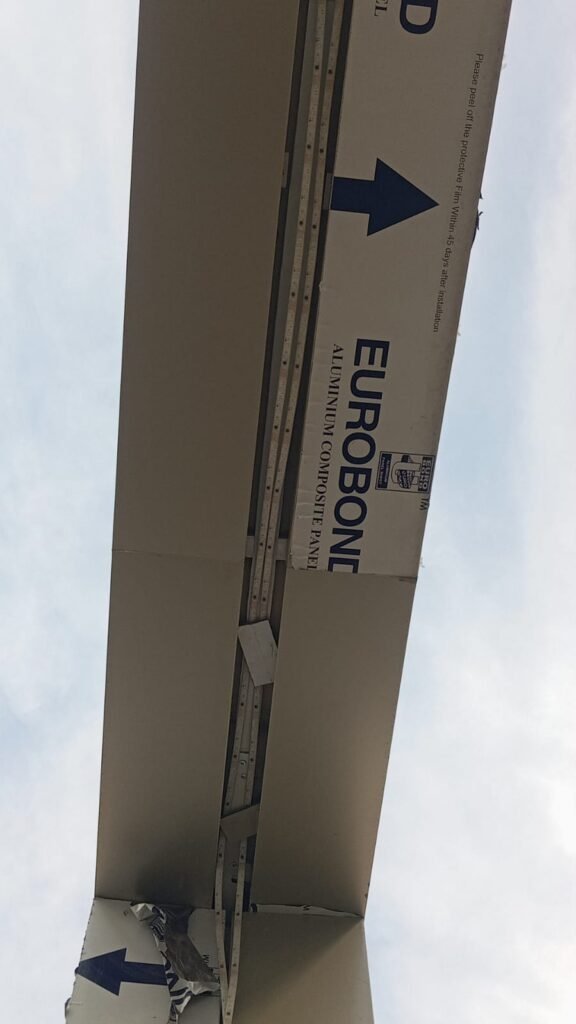

Inside the gap, two rows of waterproof rgb pixel led strips are installed. A Total of 140m led strip used, powered by 10 rainproof power supplies of 400w and controlled by H807sa arnet controller.

To protect the led strips and creates a uniform glow silicon profile of 80mm with collars is mounted directly into the ACP panel joints.

Total 70m silicon profile has been recessed to cover the gaps and light. This silicon cover not only protects the led light strips but also acts as a continuous lens, spreading light evenly across the entire length.

The technique used not only gives a clean, modern look to the building structural grids but also add dynamism and visual lightness to the entire construction.
