Silicon profile light with collar
Price range: ₨ 350 through ₨ 550

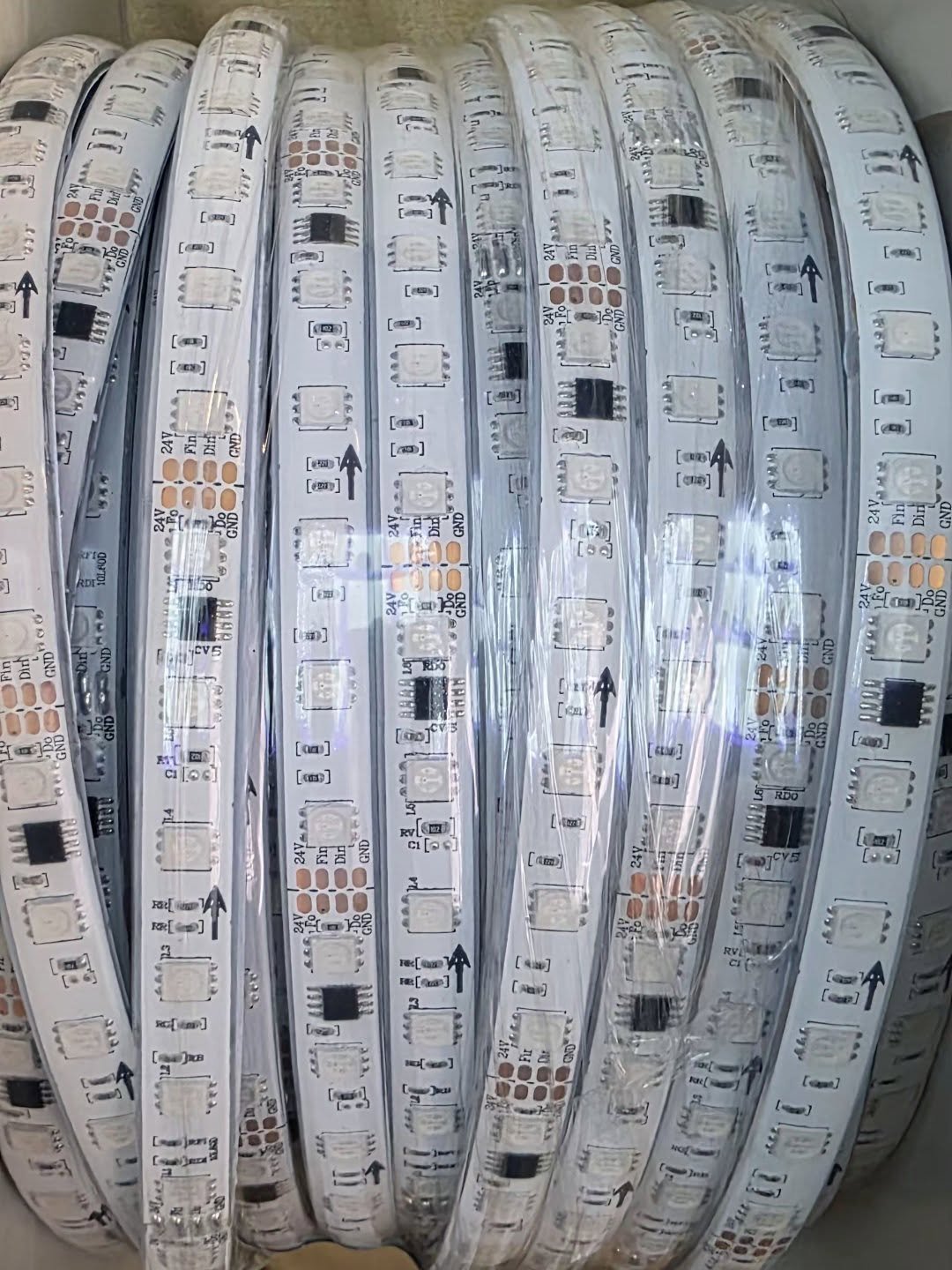

Waterproof rgb pixel strip
₨ 1,200
Create dynamic, programmable colour animations on facades, signage, and entertainment venues with individually addressable pixel lighting. The Waterproof RGB Pixel Strip delivers SPI protocol control with IP68 permanently submersible protection — perfect for architectural facades, nightclub lighting, and commercial signage across Islamabad, Lahore, and Karachi. PKR 1,200/m.
- ✔ SM16704AP SPI Protocol — 10 individually addressable pixels per metre; precise colour control for animations, chases, and pixel mapping
- ✔ IP68 Permanently Submersible — Rated per IEC 60529 for continuous outdoor exposure; survives Pakistan monsoons, coastal humidity, and dust storms
- ✔ 24V DC Low-Voltage Safety — Eliminates electrical hazard risk in wet environments; compatible with standard waterproof power supplies
- ✔ 60 SMD5050 LEDs/m, 480 lm/m — High-brightness output for vivid facade illumination visible in urban ambient light conditions
- ✔ Flexible PCB + Silicone Coating — Bendable for curved facades; impact-resistant against installation handling and environmental exposure
- ✔ CE/RoHS Certified — Compliant with Pakistan Electrical Safety Code & NEECA MEPS standards; tested for voltage fluctuation tolerance
PKR 1,200 per metre. Requires SPI controller + 24V DC power supply (sold separately). Warranty: 12 months. 💬 WhatsApp to Order | Bulk project pricing available.
✓ CE/RoHS | ✓ IP68 Waterproof | ✓ 12-Month Warranty | ✓ NEECA Compliant
Description
Waterproof RGB Pixel Strip Pakistan — SPI Protocol Addressable Facade Lighting | PKR 1,200/m
Problem: Standard RGB strips change colour uniformly across the entire length — unable to create dynamic animations, pixel mapping, or addressable effects demanded for architectural facades, nightclub lighting, and commercial signage. Solution: Waterproof RGB Pixel Strip delivers SPI protocol control with individually addressable pixels and IP68 permanently submersible protection — professional-grade pixel lighting that survives Pakistan’s demanding outdoor environments. PKR 1,200/m. 💬 WhatsApp to Order
Why SPI Pixel Strip vs Standard RGB Strip?
| Feature | SPI Pixel Strip (This Product) | Standard RGB Strip | DMX Pixel Strip |
|---|---|---|---|
| Control Capability | SPI protocol — 10 individually addressable pixels/m; complex animations, chases, pixel mapping | Uniform colour change only — all LEDs change together; no animation capability | DMX512 protocol — professional-grade control but requires expensive controllers and cabling |
| Outdoor Durability | IP68 per IEC 60529 — permanently submersible; survives Pakistan monsoons, coastal humidity, dust storms | Often IP65/IP67 — water-jet resistant but not rated for indefinite submersion; higher failure risk in monsoons | Variable IP ratings; often requires additional waterproofing for permanent outdoor use |
| Installation Complexity | SPI controller + 24V DC power supply; simple 3-wire connection (data, power, ground) | RGB controller + power supply; simple 4-wire connection (R,G,B,+) but limited effects | DMX controller + power supply + DMX cabling; complex setup requiring professional programming |
| Best For | Architectural facades, nightclub lighting, commercial signage, entertainment venues, pixel mapping | Basic ambient colour washing where animation not required | Large-scale professional installations with dedicated lighting control systems |
Technical Specifications
| Parameter | Specification |
|---|---|
| Protocol | SM16704AP SPI — 10 individually addressable pixels per metre |
| LED Density | 60 SMD5050 LEDs per metre, 480 lm/m output |
| Voltage | 24V DC — low-voltage safe for wet environments |
| Power | 12W per metre |
| IP Rating | IP68 per IEC 60529 — permanently submersible, monsoon-proof |
| Housing | Flexible PCB + silicone coating — bendable, impact-resistant |
| Beam Angle | 120° standard — even light distribution for facade coverage |
| Certifications | CE, RoHS, NEECA MEPS compliant |
| Warranty | 12 months manufacturer warranty |
Which Application Should You Choose?
| Application | Installation Tip | Why (Pakistan Context) |
|---|---|---|
| Architectural Facade Lighting | Mount horizontally along building edges; program SPI controller for colour waves, chases, or static brand colours | IP68 withstands Islamabad/Lahore monsoon humidity; SPI protocol enables dynamic branding for commercial plazas in Blue Area, Saddar |
| Nightclub & Entertainment Venues | Install behind bar counters, dance floors, or stage edges; sync with music via SPI controller for reactive lighting | High-brightness 480 lm/m output visible in low-light nightclub environments; IP68 survives humidity from dance floor fog machines |
| Commercial Signage & Retail Fronts | Frame storefronts or signage with pixel strips; program scrolling text effects or brand colour animations | 24V DC low-voltage safety critical for public retail zones; voltage tolerance suits Faisalabad industrial grid fluctuations |
Applications
- Architectural Facade Lighting — IP68 withstands Islamabad/Lahore monsoon humidity; SPI protocol enables dynamic branding for commercial plazas in Blue Area, Saddar
- Nightclub & Entertainment Venues — High-brightness 480 lm/m output visible in low-light nightclub environments; IP68 survives humidity from dance floor fog machines
- Commercial Signage & Retail Fronts — 24V DC low-voltage safety critical for public retail zones; voltage tolerance suits industrial grid fluctuations
- Pixel Mapping Installations — SPI protocol compatible with MADRIX software for advanced pixel art, video mapping, and interactive facade displays
- Regional Adaptability — IP68 silicone-coated housing ensures reliability in KPK monsoons, Balochistan heat (45°C+), GB cold snaps (-10°C), and Karachi coastal salt-air conditions
🚚 Shipping & Delivery:
- Pakistan: Free shipping on orders ≥ PKR 15,000 | Dispatch 1–2 days | Nationwide delivery 2–5 days
- Installation: Requires SPI controller + 24V DC waterproof power supply (sold separately); all electrical connections must be made by qualified electrician per Pakistan Electrical Safety Code; flexible PCB allows curved facade mounting without additional hardware
FAQs
What is SPI protocol and why is it used for pixel strips?
SPI (Serial Peripheral Interface) protocol allows each pixel on the strip to be individually addressed and controlled — enabling complex animations, colour chases, and pixel mapping effects. Unlike standard RGB strips that change colour uniformly, SPI pixel strips let you program each of the 10 pixels per metre independently for dynamic facade lighting, nightclub effects, and commercial signage applications.
Is IP68 sufficient for permanent outdoor pixel installations in Pakistan?
Yes. IP68 per IEC 60529 certifies the strip is dust-tight and protected against indefinite submersion — essential for Pakistan’s monsoon rainfall, coastal humidity in Karachi, and dust storms in Quetta. The silicone-coated housing ensures reliable operation in all weather conditions without pixel failure or electrical hazard.
What controller is compatible with this SPI pixel strip?
Any SPI-compatible controller supporting SM16704AP protocol works. For residential/small commercial use, Newon’s LED RGB Addressable Pixel Light controller is directly compatible. For large-scale installations requiring DMX integration or MADRIX software, Newon’s LED 510 Main Controller or DMX Sub-Controller 408 provides professional-grade pixel management.
How do I calculate power supply requirements for this pixel strip?
Multiply total strip length in metres by 12W/m, then add 20% safety headroom. Example: 10m run = 120W load — use minimum 150W 24V driver. For runs over 5m, inject power at both ends to maintain colour consistency. Contact Newon via WhatsApp +92 343 9227883 for project-specific power supply sizing and SPI controller recommendations.
🔧 Technical Details (Click to Expand)
- Why SPI Protocol for Addressable Pixels: SPI (Serial Peripheral Interface) uses a single data line to send colour/brightness instructions to each pixel sequentially. The SM16704AP chip in each pixel reads its assigned data, then passes the remaining signal downstream — enabling precise control of all 10 pixels per metre with just 3 wires (data, power, ground). This simplicity makes SPI ideal for Pakistan installations where complex DMX cabling is impractical.
- IP68 Silicone Coating for Pakistan Climates: The flexible PCB is fully encapsulated in medical-grade silicone that blocks dust, moisture, and salt-air corrosion. Unlike PVC-coated strips that crack in Quetta heat or Karachi humidity, silicone maintains flexibility from -40°C to +80°C — critical for Pakistan’s extreme climate range from GB cold snaps to Balochistan desert heat.
- 24V DC Low-Voltage Safety Advantage: 24V DC operation eliminates electrocution risk in all wet environments — critical for Pakistan facade installations where maintenance staff or the public may contact lighting fixtures. Unlike 220V AC pixel systems which pose lethal shock hazards if housing fails, low-voltage DC 24V systems are inherently safe even with cable damage or accidental contact.
- Compliance Framework: CE (European safety), RoHS (hazardous substances restriction), NEECA MEPS (Pakistan energy standards). All products tested for voltage fluctuation tolerance (180-260V) common in Pakistan’s grid infrastructure. IP68 rating verified per IEC 60529 international standards for permanent submersion in chemically treated water and high-humidity environments.
