Newon Detailing Studio Lighting Projects in Islamabad, Pakistan

At Newon, we specialize in premium detailing studio lighting solutions designed to enhance visibility, precision, and the overall appearance of automotive detailing spaces. Our completed detailing studio lighting projects in Islamabad feature high-performance LED panel lights, hexagon lighting systems, ceiling-mounted fixtures, and customized lighting layouts that create a modern and professional environment. Whether it’s a car detailing garage, auto spa, or vehicle wrapping studio, Newon delivers reliable lighting installations that combine style, brightness, and energy efficiency.

Detailing Studio Lighting Projects in Pakistan — Hexagrid, Linear Profile & Stretch Ceiling Solutions

A professional detailing studio lighting system delivers shadow-free, high-CRI illumination that reveals every swirl mark, paint imperfection, and ceramic coating flaw invisible under standard workshop lighting. Newon designs, supplies, and installs turnkey automotive studio lighting across Pakistan, combining modular hexagrid ceiling systems, recessed aluminium LED profiles, and backlit stretch fabric ceilings to create showroom-grade workspaces for car detailing, PPF wrapping, and ceramic coating studios.

Whether you are building a premium detailing garage in Rawalpindi, a multi-bay auto spa in Lahore, or a vehicle wrapping facility in Karachi, Newon delivers the precise, glare-controlled illumination that professional detailers demand — engineered to handle Pakistan’s WAPDA voltage fluctuations and extreme summer heat.

Why Standard Workshop Lighting Fails for Detailing

Ordinary tube lights and panel fixtures create uneven illumination with harsh shadows that hide paint defects. Professional automotive detailing requires:

High Colour Rendering (CRI ≥ 90): Ensures paint colours, metallic flakes, and ceramic coatings appear true-to-life under artificial light, matching how they look in direct sunlight.
Shadow-Free Coverage: Multi-directional light sources (ceiling + walls) eliminate dark zones behind vehicle body curves.
Consistent Colour Temperature: A uniform 5000K–6500K daylight CCT across the entire workspace prevents colour shifting between different areas of the vehicle.
Flicker-Free Output: Essential for video content creation and time-lapse filming, which most professional studios now require for social media marketing.

Our Detailing Studio Lighting Systems

Newon deploys three complementary lighting layers to achieve 100% shadow elimination in automotive workspaces:

Layer 1: Hexagrid Ceiling Systems (Primary Overhead Illumination)

Our modular LED Hexagonal Garage Lights (Hexagrids) are the centerpiece of every detailing studio we build. These interlocking honeycomb panels deliver massive, uniform lumen output across the entire ceiling plane.

Product	Coverage Area	Hexagon Count	Total Wattage	Price (PKR)
Hexagrid 7×12ft (15 Hexagons)	7 × 12 ft (84 sq ft)	15	~500W	₨ 70,000
Hexagrid 7×15ft (18 Hexagons)	7 × 15 ft (105 sq ft)	18	~600W	₨ 85,000

Modular design allows future expansion. Additional hexagons can be added as your studio grows.

Layer 2: Linear Wall & Ceiling Profiles (Edge-to-Edge Fill Light)

Hexagrids handle the ceiling. Our recessed and surface-mounted aluminium LED profiles handle the walls and ceiling perimeters, filling every remaining shadow zone behind vehicle panels and wheel arches.

Product	Application	Key Spec	Price (PKR)
4-Inch Recessed Aluminium Profile	Wall coves, ceiling perimeter	116mm width, PC frosted diffuser, flush mount	₨ 1,500 / ft
5020 Aluminium Profile	Ceiling-to-wall junction lines	50×20mm, surface or recessed mount	₨ 1,400 / m
COB Indoor LED Strip Light	Inside profiles (dot-free light source)	24V DC, 480 LEDs/m, seamless line	₨ 5,500 / 10m

Layer 3: Stretch Fabric Backlit Ceilings (Premium Studios)

For studios that also serve as content creation spaces and customer viewing areas, we install backlit stretch fabric ceilings that transform the entire ceiling into a single, seamless luminaire. This provides the softest, most uniform illumination possible — eliminating every shadow while creating a showroom-grade visual impression for clients and social media.

Module: 4W Backlit LED Module — ₨ 2,000/module
Membrane: White Plain Translucent Stretch Fabric — ₨ 30,000/m²
Cavity Depth: 150–200mm recommended for ≥90% uniformity with zero hotspots

Verified Detailing Studio Projects by Newon

Our automotive lighting portfolio is backed by real, photographed installations — not renders or stock images.

Project	Location	Lighting Systems Installed	View

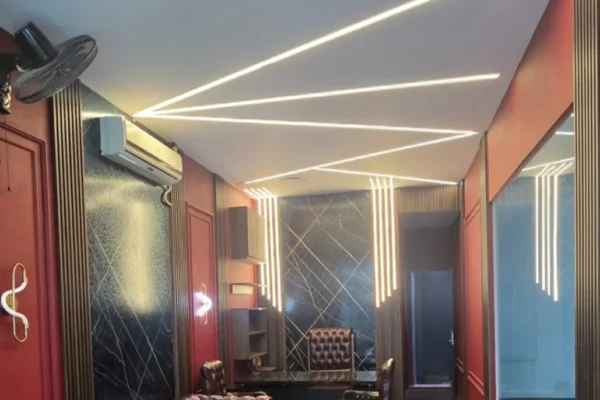

Car Detailing Studio — Showroom-Grade Workspace	Rawalpindi	Hexagrid ceiling + linear wall profiles + zig-zag ceiling profiles + stretch fabric ceiling panels	View Project →
Auto Extreme Car Detailing Studio	Pakistan	Stretch fabric ceiling light + linear wall and ceiling light profiles	View Project →

Technical Standards for Automotive Studio Lighting

Every Newon detailing studio installation is engineered to meet the following parameters:

Parameter	Newon Studio Standard
Colour Rendering Index (CRI)	≥ 90 (true-to-sunlight paint inspection accuracy)
Colour Temperature (CCT)	5000K–6500K Daylight White (consistent across all fixtures)
Illuminance Target	800–1200 Lux at vehicle roof height
Voltage Tolerance	Wide-input drivers (AC 180V–265V) for WAPDA grid stability
Thermal Management	Aluminium-core PCBs and die-cast housings rated for 45°C+ ambient temperatures
Flicker	Flicker-free drivers for video content and time-lapse filming
Shadow Elimination	3-layer approach: overhead hexagrid + perimeter wall profiles + optional stretch ceiling

Our Installation Process for Detailing Studios

Site Survey & Lux Mapping: We measure the garage dimensions, ceiling height, bay count, and existing electrical capacity to determine the exact hexagrid configuration and profile layout needed for shadow-free coverage.
Electrical Assessment: We verify main supply capacity and recommend dedicated circuits with surge protection to handle the combined wattage of hexagrids, profiles, and any stretch ceiling modules.
Hexagrid Assembly & Profile Routing: Modular hexagons are assembled on-site and wired in parallel. Aluminium profiles are surface-mounted or recessed into wall channels with concealed wiring.
Stretch Fabric Integration (If Applicable): Aluminium perimeter tracks are laser-levelled, LED modules are mapped at the correct pitch-to-depth ratio, and the PVC membrane is heat-tensioned at 60–70°C.
Commissioning & Lux Verification: We test illuminance at vehicle roof height across all bays, verify colour temperature consistency, and ensure flicker-free operation before handover.

Frequently Asked Questions

How many hexagrid panels do I need for a single-bay detailing studio?

A standard single-bay studio (approximately 12×20 ft) typically requires two to three sets of our 7×12ft Hexagrid systems (15 hexagons each) to achieve full shadow-free coverage at vehicle roof height. For multi-bay studios, we provide custom layout plans based on your exact dimensions.

Can I combine hexagrid panels with wall-mounted linear profiles?

Yes, and we strongly recommend it. Hexagrids provide powerful overhead illumination, but vehicle body curves create shadows on lower panels and wheel arches. Wall-mounted recessed aluminium profiles with COB LED strips fill these remaining shadow zones for true 360-degree illumination.

Is the lighting suitable for filming content and social media videos?

Absolutely. All our detailing studio fixtures use flicker-free drivers and maintain a consistent 5000K–6500K colour temperature, ensuring your before-and-after videos and time-lapse content look professional without colour banding or visible flicker artefacts.

Will the system handle Pakistan’s power fluctuations and summer heat?

Yes. Every component is specified with wide-input drivers (AC 180V–265V) that absorb WAPDA voltage surges without flickering or damage. The hexagrid panels and aluminium profiles use die-cast housings and aluminium-core PCBs for efficient heat dissipation, validated for continuous operation in ambient temperatures exceeding 45°C during Punjab and Sindh summers.

Do you provide supply-only or full installation?

Both. We ship hexagrid kits and profile systems nationwide for DIY-capable workshops. For turnkey installations, our technical team handles everything from site survey to final lux verification. Contact us via WhatsApp for a project-specific quotation.

Build Your Detailing Studio With Newon

Send us your studio dimensions, ceiling height, and number of bays for a complete lighting layout and quotation.

📞 WhatsApp / Call: +92 343 922 7883
✉️ Email: info@newon.pk
📍 Head Office: Office No. 1, Plot No. 235, Street No. 6, I-9/2, Islamabad, Pakistan
