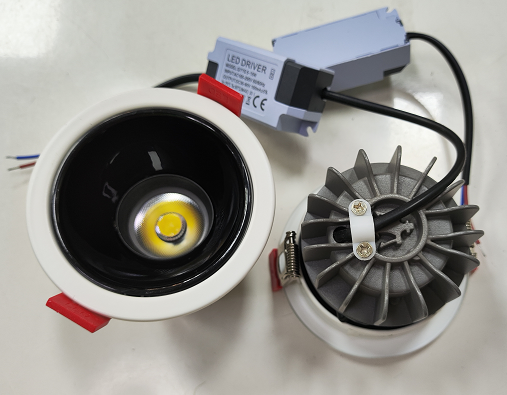

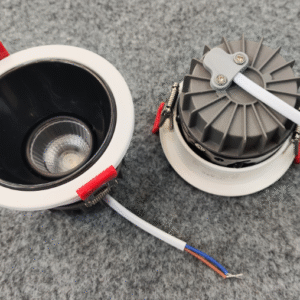

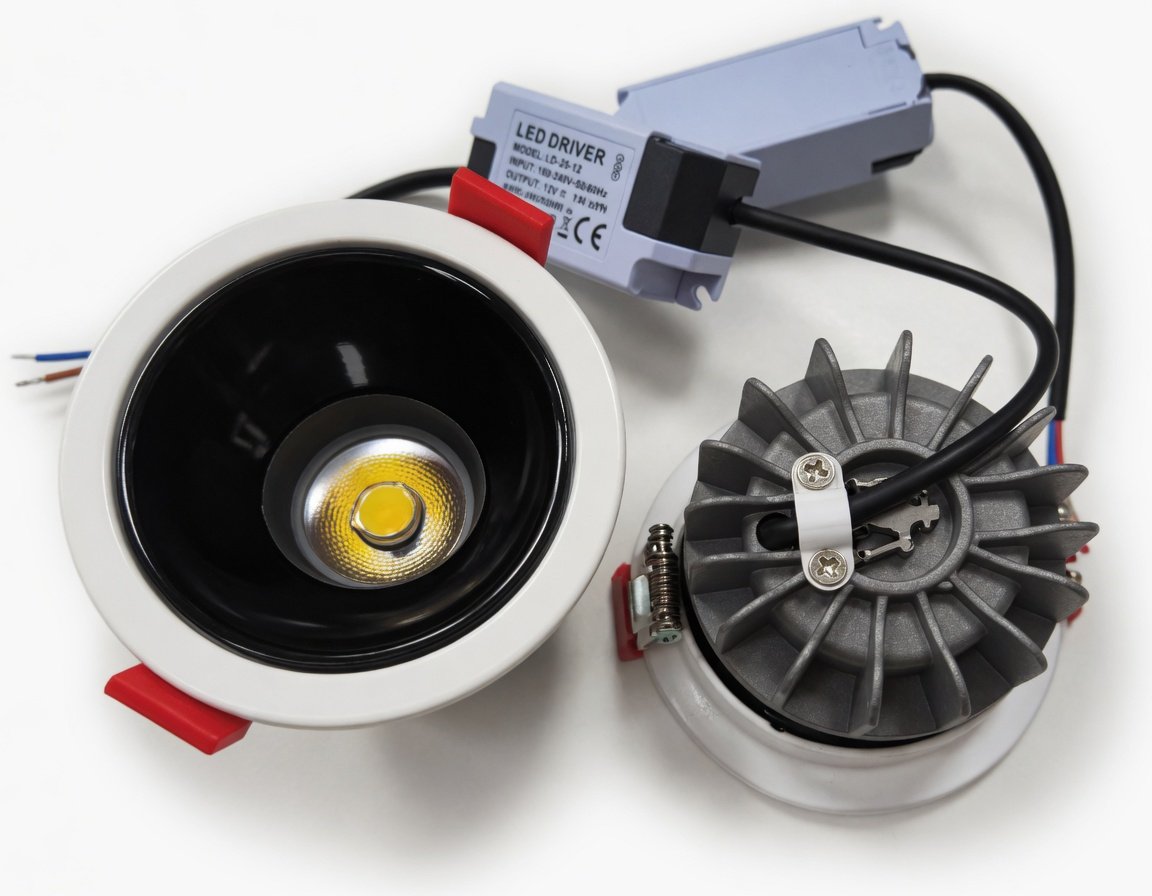

Led deep recessed anti-glare cob downlight 12w and 18w
Price range: ₨ 450 through ₨ 1,150
Eliminate glare while delivering precise, high-CRI illumination for premium indoor spaces. The LED Deep Recessed Anti-Glare COB Downlight offers 12W/18W options, 85mm cut-out, CRI ≥90 colour accuracy, and UGR ≤19 compliance — perfect for offices, retail, and hospitality across Islamabad, Lahore, and Karachi. ₨ 450–1,150 per unit.
- ✔ Deep Recessed Anti-Glare Design — UGR ≤19 compliant per IES RP-3; minimises eye strain for screen-based work in Blue Area Islamabad and Gulberg Lahore corporate offices
- ✔ COB LED High Lumen Density — Uniform beam with minimal hotspots; superior colour consistency for retail displays in Clifton Karachi and DHA Islamabad premium stores
- ✔ CRI ≥90 Accurate Colour Rendering — Ensures fabrics, food, and products appear vibrant and true-to-life; critical for fashion retail and hospitality venues nationwide
- ✔ 24° Narrow Beam Angle — Focused accent illumination ideal for architectural features, artwork highlighting, and merchandise spotlighting across Pakistan commercial interiors
- ✔ 85mm Standard Cut-Out — Compatible with most suspended ceiling grids in Pakistan; simplifies retrofit installations in existing commercial and residential properties
- ✔ CE/RoHS Certified — Compliant with Pakistan Electrical Safety Code & NEECA MEPS standards; tested for voltage fluctuation tolerance (180-260V)
₨ 450 (12W) / ₨ 1,150 (18W) per unit. Requires 220V AC power supply and compatible ceiling grid (sold separately). Warranty: 12 months. 💬 WhatsApp to Order | Bulk project pricing available.
✓ CE/RoHS | ✓ CRI ≥90 | ✓ UGR ≤19 Anti-Glare | ✓ 12-Month Warranty | ✓ NEECA Compliant
Description
LED Deep Recessed Anti-Glare COB Downlight Pakistan — 12W/18W, CRI ≥90, UGR ≤19 | ₨ 450–1,150
Problem: Standard downlights cause visual discomfort through glare, lack colour accuracy for premium retail displays, and fail to meet professional office lighting standards required across Pakistan’s commercial sector. Solution: LED Deep Recessed Anti-Glare COB Downlight delivers 12W/18W options, CRI ≥90 colour rendering, UGR ≤19 compliance, and 24° focused beam — perfect for office, retail, hospitality, and residential applications across Islamabad, Lahore, and Karachi. ₨ 450–1,150 per unit. 💬 WhatsApp to Order
Why Deep Recessed Anti-Glare COB Downlight vs Standard Downlights?
| Feature | Deep Recessed Anti-Glare COB (This Product) | Standard SMD Downlight | Surface-Mounted Spotlight |
|---|---|---|---|
| Glare Control | Deep recessed design + anti-glare baffle achieves UGR ≤19 compliance; minimises eye strain for screen-based work in Pakistan commercial offices | Often UGR >25; direct LED visibility causes discomfort glare; unsuitable for prolonged office or classroom use per international standards | Exposed light source creates high glare potential; requires additional louvres or diffusers to achieve acceptable UGR ratings |
| Colour Accuracy | CRI ≥90 Ra ensures fabrics, food, and products appear vibrant and true-to-life; critical for fashion retail and hospitality venues across Pakistan | Often CRI 80-85; colours appear muted or inaccurate; unsuitable for premium retail applications where product presentation influences purchasing decisions | Variable CRI depending on LED quality; often requires specification verification; inconsistent colour rendering across batch purchases |
| Beam Precision | COB LED + 24° beam angle delivers focused accent illumination with minimal spill; ideal for artwork highlighting and merchandise spotlighting in Pakistan commercial interiors | Often wider beam angles (36°-60°); less suitable for precise accent lighting; may require additional optics for focused effects | Beam angle varies by model; surface mounting creates wider light distribution; less architectural integration for premium ceiling finishes |
| Best For | Office workstations, retail displays, hospitality interiors, healthcare facilities, premium residential downlighting across Pakistan | General ambient lighting where glare control and colour accuracy not critical; budget-conscious applications where professional standards not required | Retrofit applications where ceiling cut-out not feasible; industrial or utility spaces where aesthetic integration not priority |
Technical Specifications
| Parameter | Specification |
|---|---|
| Power Options | 12W / 18W — select based on required output and ceiling height |
| Cut-out Size | 85mm diameter — standard for most ceiling grids |
| Beam Angle | 24° narrow spot — focused accent illumination |
| CRI | ≥90 Ra — accurate colour rendering for retail, art, and premium applications |
| UGR | ≤19 — anti-glare compliant for office, classroom, healthcare |
| Light Source | COB (Chip-on-Board) LED — high lumen density, uniform beam |
| Input Voltage | 220V AC — compatible with Pakistan mains supply |
| Housing Material | Die-cast aluminium with anti-glare baffle |
| Operating Temperature | -10°C to +50°C — suitable for Pakistan indoor environments |
| LED Lifespan | 50,000+ hours (L70) — no lamp replacement for 11+ years at 12h/night |
| Certifications | CE, RoHS, NEECA MEPS compliant |
| Warranty | 12 months manufacturer warranty |
| Price | ₨ 450 (12W) / ₨ 1,150 (18W) |
Which Application Should You Choose?
| Application | Installation Tip | Why (Pakistan Context) |
|---|---|---|
| Office Workstations & Meeting Rooms | Space downlights at 1.2-1.5m intervals for uniform task illumination; specify 4000K neutral white for screen-based work comfort | UGR ≤19 compliance ensures visual comfort for employees in Blue Area Islamabad and Gulberg Lahore corporate offices; reduces eye strain during prolonged screen use |
| Retail Display & Merchandise Highlighting | Use 18W option with 24° beam for focused product spotlighting; specify 3000K warm white for fashion retail or 4000K for electronics | CRI ≥90 ensures fabrics appear vibrant and products render true colours in Clifton Karachi and DHA Islamabad premium stores; directly influences purchasing decisions |
| Hospitality Interiors & Restaurant Dining | Coordinate downlight spacing with table layouts; use dimmable drivers for ambient control during different service periods | Deep recessed design creates clean ceiling finish in hospitality venues across Pakistan; warm white options enhance food presentation and guest ambience |
Applications
- Office Workstations & Meeting Rooms — UGR ≤19 compliance ensures visual comfort for employees in Blue Area Islamabad and Gulberg Lahore corporate offices; reduces eye strain during prolonged screen use
- Retail Display & Merchandise Highlighting — CRI ≥90 ensures fabrics appear vibrant and products render true colours in Clifton Karachi and DHA Islamabad premium stores; directly influences purchasing decisions
- Hospitality Interiors & Restaurant Dining — Deep recessed design creates clean ceiling finish in hospitality venues across Pakistan; warm white options enhance food presentation and guest ambience
- Healthcare & Educational Facilities — Anti-glare compliance supports visual task performance in clinics, hospitals, and classrooms across Pakistan; critical for patient care and learning environments
- Regional Adaptability — Die-cast aluminium housing + voltage-fluctuation-tolerant driver ensures reliable operation in KPK monsoons, Balochistan heat (45°C+), GB cold snaps (-10°C), and Karachi coastal humidity conditions
🚚 Shipping & Delivery:
- Pakistan: Free shipping on orders ≥ PKR 15,000 | Dispatch 1–2 days | Nationwide delivery 2–5 days
- Installation: Requires 220V AC power supply and compatible 85mm ceiling cut-out (sold separately); deep recessed design minimises ceiling visibility for clean architectural finish; professional installation recommended for commercial projects; all electrical connections must be made by qualified electrician per Pakistan Electrical Safety Code
FAQs
What is the difference between COB and SMD LED in downlights?
COB (Chip-on-Board) technology bonds multiple LED chips directly to a single substrate, producing higher lumen density and a tighter, more uniform beam than individual SMD LEDs at equivalent wattage. For downlight applications where beam precision and colour consistency matter — retail displays, office task lighting, art galleries — COB delivers superior performance with minimal hotspots or colour variation across the beam.
What does UGR ≤19 mean and why is it important for Pakistan offices?
UGR (Unified Glare Rating) measures discomfort glare produced by a lighting installation. UGR ≤19 is the professional standard for office, classroom, and healthcare environments per IES RP-3 and EN 12464-1 guidelines. Anti-glare baffles in this downlight reduce direct view of the LED source, minimising eye strain and visual fatigue for occupants engaged in screen-based work — critical for commercial offices in Islamabad’s Blue Area and Lahore’s Gulberg.
What ceiling cut-out size is required for installation?
This downlight requires an 85mm diameter cut-out in the ceiling grid — a standard size compatible with most commercial and residential suspended ceiling systems in Pakistan. Always confirm ceiling grid specifications before ordering, and consult Newon via WhatsApp for installation guidance in Islamabad/Rawalpindi or nationwide project support.
Can these COB downlights be dimmed for ambient control?
Yes. When paired with a compatible TRIAC, 0-10V, or DALI dimmer and driver, these COB downlights support smooth dimming from 10–100% output. For office and hospitality applications across Pakistan where ambient light levels vary by time of day or activity, dimming capability enhances energy efficiency and user comfort while extending LED lifespan.
🔧 Technical Details (Click to Expand)
- Why COB LED Technology for Precision Downlighting: COB (Chip-on-Board) LED technology bonds multiple LED chips directly to a single ceramic substrate, producing higher lumen density (up to 140 lm/W) and a tighter, more uniform beam than discrete SMD LEDs at equivalent wattage. For downlight applications where beam precision and colour consistency matter — retail displays, office task lighting, art galleries — COB delivers superior performance with minimal hotspots or colour variation across the beam. The 24° beam angle of this deep recessed downlight is ideal for accent illumination at distances of 2–4 metres, producing a focused spotlight effect with minimal spill beyond the target area.
- Anti-Glare Engineering for Pakistan Commercial Environments: The Unified Glare Rating (UGR) measures the discomfort glare produced by a lighting installation. UGR ≤19 is the professional standard for office, classroom, and healthcare environments per IES RP-3 and EN 12464-1 guidelines. Anti-glare baffles in this downlight reduce direct view of the LED source through deep recessing and precision optics, minimising eye strain and visual fatigue for occupants engaged in screen-based or detailed visual tasks. For Pakistan’s growing commercial office sector — Islamabad’s Blue Area, Lahore’s Gulberg, Karachi’s Clifton — specifying UGR ≤19 downlights is increasingly a contractual requirement for premium fit-outs.
- Thermal Management for Pakistan Climate Range: The die-cast aluminium housing incorporates integrated heat sinks to dissipate COB LED heat effectively in ceiling voids where ambient temperatures can reach 45°C+ in Quetta summer or drop to -10°C in Gilgit winter. This thermal design ensures consistent light output, colour stability, and 50,000+ hour lifespan across Pakistan’s extreme indoor climate range.
- Compliance Framework: CE (European safety), RoHS (hazardous substances restriction), NEECA MEPS (Pakistan energy standards). All products tested for voltage fluctuation tolerance (180-260V) in the driver circuitry to handle Pakistan’s unstable grid conditions during occasional hybrid power scenarios.
Frequently Bought Together
Complete your downlighting system with these compatible additions:
- LED Power Supplies & Dimmers — Compatible TRIAC, 0-10V, or DALI dimming solutions for ambient control (from ₨ 3,200)
- Browse Full Down Light Range → — Discover COB, SMD, and anti-glare options for comprehensive indoor lighting solutions
- All Indoor Lighting Products — Coordinate with track lights, profiles, and accent fixtures for complete interior schemes
Seen in Newon Projects
Commercial Office Lighting — BAT Head Office EOBI Building Islamabad |
Retail Display Lighting — PSO VIBE Stores Nationwide |
Premium Interior Lighting — Auto Extreme Car Studio Islamabad
Contact & Order
📧 info@newon.pk |
📞 +92 343 9227883 |
💬 💬 WhatsApp to Order
📍 Office No 2, First Floor, Haroon Plaza, Islamabad
