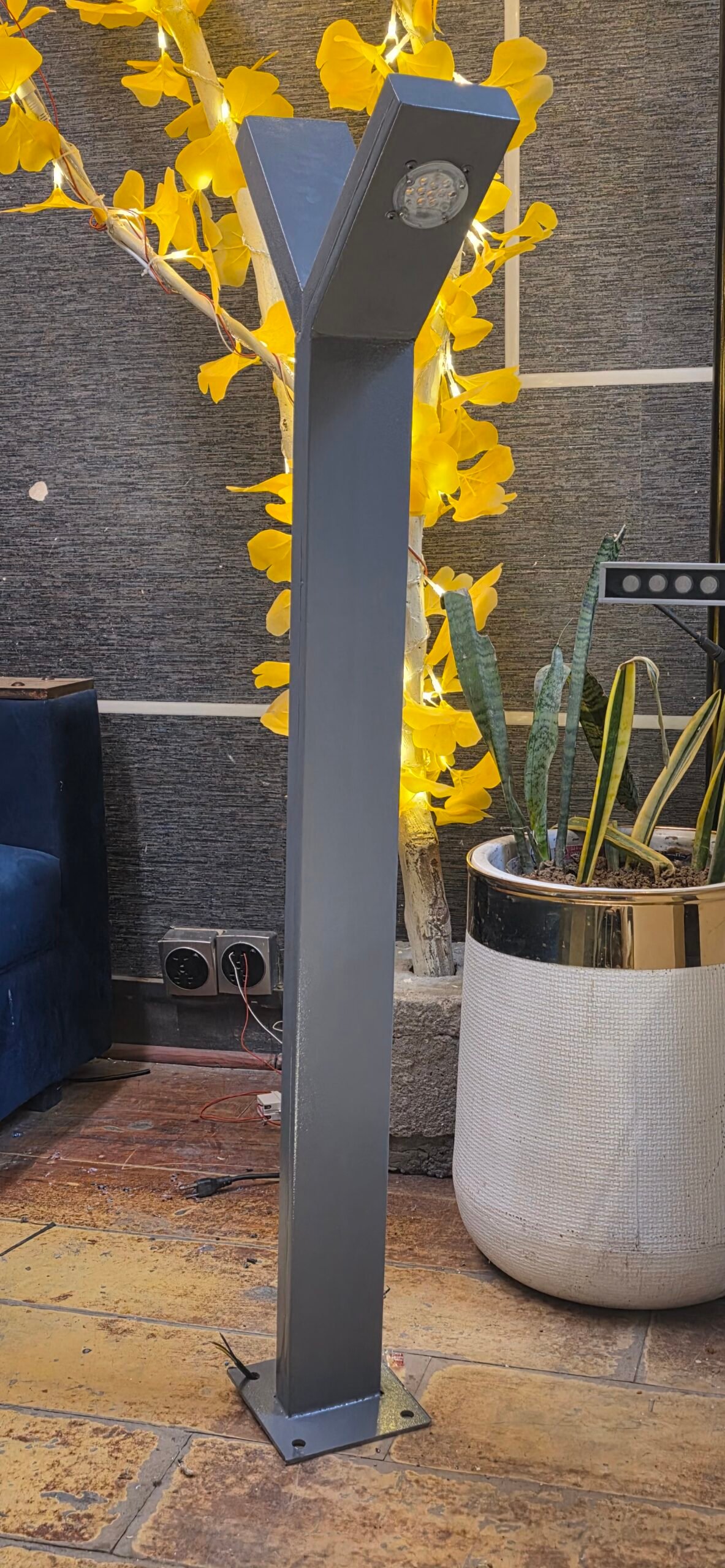

Y-Signe Led double sided bollard light
₨ 15,000
Eliminate dark-side gaps on garden pathways with dual-direction illumination. The Y-Signe LED Double-Sided Bollard Light delivers symmetrical 20W output from two opposing 10W LED heads mounted on a 4ft MS iron post — perfect for housing society pathways, driveway borders, and commercial landscapes across Islamabad, Lahore, and Karachi. PKR 15,000.
- ✔ Y-Shaped Dual Design — Two 10W LED heads illuminate both sides of a pathway simultaneously; no dark-side gaps
- ✔ IP65 Weatherproof — Fully dust-tight and water-jet protected per IEC 60529; monsoon-ready for Pakistan’s climate
- ✔ 220V Direct Mains — Plug-and-play installation; no driver or transformer required for Pakistan’s grid
- ✔ 4ft Pedestrian Scale — 1200mm height positions light at eye level for optimal pathway visibility and safety
- ✔ Customisable Powder Coat — Standard grey finish; custom colours available for project orders (black, green, white)
- ✔ CE/RoHS Certified — Compliant with Pakistan Electrical Safety Code & NEECA MEPS standards
PKR 15,000. Mounting: ground spike or base plate (specify at order). Warranty: 12 months. 💬 WhatsApp to Order | Bulk/project pricing available.
✓ CE/RoHS | ✓ IP65 Outdoor | ✓ 12-Month Warranty | ✓ NEECA Compliant
Description
Y-Signe LED Double-Sided Bollard Light Pakistan — Dual Pathway Illumination | PKR 15,000
Problem: Standard single-head bollards create bright zones on one side of a pathway and dark gaps on the other, compromising pedestrian safety. Solution: Y-Signe’s dual 10W LED heads illuminate both sides simultaneously from a single 4ft MS iron post. PKR 15,000.
Why Y-Signe Double-Sided vs Standard Single-Head Bollards?
| Feature | Y-Signe Double-Sided | Standard Single-Head | Solar Bollard |
|---|---|---|---|
| Illumination Coverage | Bilateral — both sides of pathway lit equally | Unidirectional — one side brighter than the other | Variable — depends on solar panel orientation |
| Power Source | 220V AC direct mains — consistent output | 220V AC direct mains — consistent output | Solar + battery — output varies with sunlight |
| Weather Rating | IP65 — dust-tight, water-jet protected | IP65 — dust-tight, water-jet protected | IP65 — dust-tight, water-jet protected |
| Best For | Housing society pathways, driveway borders | Simple garden borders, low-traffic zones | Off-grid locations, eco-conscious projects |
Technical Specifications
| Parameter | Specification |
|---|---|
| Product | LED bollard light — double-sided |
| Model | Y-Signe |
| Shape | Y-shaped — dual opposing LED heads |
| Body Material | MS (mild steel) iron |
| Finish | Powder-coated grey (customisable colour) |
| Height | 4ft (approximately 1200mm) |
| Wattage | 2×10W (20W total) |
| Input Voltage | 220V AC — direct mains |
| IP Rating | IP65 per IEC 60529 — fully dust-tight, water jet protected |
| Mounting | Ground spike or base plate (confirm with Newon at order) |
| Certifications | CE, RoHS, NEECA MEPS compliant |
| Warranty | 12 months manufacturer warranty |
Which Application Should You Choose?
| Application | Recommended Spacing | Why (Pakistan Context) |
|---|---|---|
| Housing Society Pathways (DHA, Bahria Town) | 4–6 metres between units | Dual-head output ensures consistent 5–10 lux coverage per IES standards; IP65 rating withstands Islamabad/Lahore monsoon seasons |
| Driveway & Entrance Borders | 3–4 metres at entry points | Bilateral illumination lights both vehicle lane and pedestrian path simultaneously; 220V direct mains integrates with gate automation systems |
| Commercial Landscape & Institutional Grounds | 5–7 metres for wider areas | MS iron construction + powder coat resists corrosion in high-footfall zones; architectural Y-shape complements modern campus design |
Applications
- Housing Society Garden Pathways — Dual illumination ensures pedestrian safety in DHA Islamabad, Bahria Town Lahore, and Askari communities; IP65 rating withstands monsoon rainfall
- Driveway & Entrance Borders — Bilateral output lights both vehicle lane and pedestrian path; 220V direct mains integrates with gate automation systems
- Commercial Landscape & Institutional Grounds — MS iron construction + powder coat resists corrosion in high-footfall zones; architectural Y-shape complements modern campus design in Gulberg, Blue Area
- Mosque & Institutional Grounds — 20W total output provides pathway guidance without visual intrusion of tall pole lights; suitable for DHA Phase 2 mosque compounds
- Regional Adaptability — IP65 rating ensures reliability in KPK monsoons, Balochistan heat, GB cold snaps, and Karachi coastal salt-air conditions
🚚 Shipping & Delivery:
- Pakistan: Free shipping on orders ≥ PKR 15,000 | Dispatch 1–2 days | Nationwide delivery 2–5 days
- Installation: Mounting: ground spike or base plate (specify at order); all mains connections must be made by qualified electrician per Pakistan Electrical Safety Code
FAQs
What does IP65 mean and is it sufficient for outdoor use in Pakistan?
IP65 per IEC 60529 means fully dust-tight and protected against water jets from any direction. It is the correct minimum rating for above-ground outdoor fixtures in Pakistan — covering monsoon rainfall, garden hosing, and cleaning operations. IP65 bollards will perform reliably through Pakistan’s full climate range without water or dust ingress.
Can the powder-coat colour be customised for my project?
Yes. The standard finish is powder-coated grey, but custom powder-coat colours are available for project orders. Contact Newon at WhatsApp +92 343 9227883 with your colour requirement (e.g., black for contemporary, dark green for landscape blending, white for coastal settings) before ordering.
What is the recommended spacing between Y-Signe bollards for a garden pathway?
For a 2×10W bollard at 4ft height, recommended spacing is 4–6 metres between units for overlapping coverage at the IES minimum of 5–10 lux for residential garden pathways. For tighter spacing or higher lux requirements in commercial zones, contact Newon for a project-specific calculation based on your pathway width and desired illumination level.
Does this come with a ground spike or base plate for installation?
Confirm mounting configuration at time of order — contact Newon to specify ground spike (for soil/grass) or base plate (for concrete/paved surfaces) installation for your project surface type. Both options are available; the choice depends on your pathway material and installation preference.
🔧 Technical Details (Click to Expand)
- Y-Shaped Dual-Head Design: Unlike single-direction bollards, the Y-Signe’s two opposing 10W LED heads eliminate dark-side gaps by illuminating both sides of a pathway simultaneously. This is critical for pedestrian safety in housing society parks where visitors approach from multiple directions and consistent visibility matters most.
- IP65 Weatherproofing per IEC 60529: Rated for complete dust-tightness and protection against water jets from any direction. Suitable for Pakistan’s monsoon season (June–September), coastal salt-air in Karachi, dust storms in Punjab, and high-altitude humidity in Gilgit-Baltistan. Not rated for permanent submersion.
- MS Iron Body with Powder-Coat Finish: Mild steel construction provides structural durability for outdoor installations; powder-coated grey finish resists surface rust in Islamabad’s humid winters and coastal salt environments. Custom colours available for project orders to match architectural palettes.
- Compliance Framework: CE (European safety), RoHS (hazardous substances restriction), NEECA MEPS (Pakistan energy standards). All products tested for voltage fluctuation tolerance common in Pakistan’s grid infrastructure, especially in industrial zones like Faisalabad and Gujranwala.
