JK Smart BMS 8-24S — Bluetooth App | 40A/60A/100A | LiFePO4 & Li-ion | Newon Pakistan

JK Smart BMS 8-24S — Choose Your Current Rating

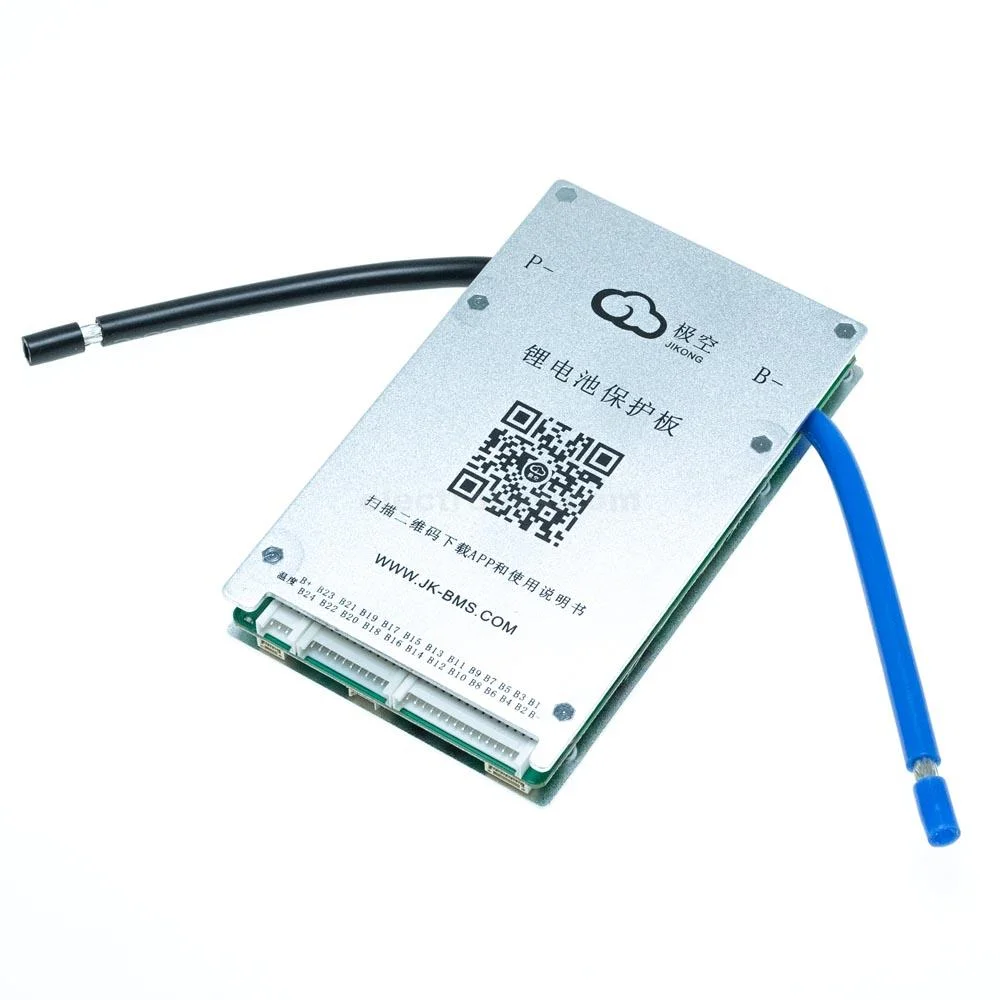

JK (JIKONG) Smart BMS for 8 to 24 cell lithium battery packs. Available in 40A, 60A, and 100A continuous discharge ratings. Built-in Bluetooth connects to the official JK BMS app for real-time monitoring and full protection configuration. Supports LiFePO4 and Li-ion chemistries. Designed for 24V and above battery systems.

Select Your Variant

Shared Features (All Variants)

• 8S–24S Configurable: Auto-detects 8 to 24 cells. Build 24V, 48V, 72V, or 96V systems.
• Bluetooth + JK BMS App: iOS & Android. Real-time cell voltages, current, temperature, SOC.
• Smart Configurable Protection: Set overcharge, over-discharge, overcurrent, and balance thresholds in the app.
• LiFePO4 & Li-ion Compatible: Select chemistry during setup. Works with Newon LiFePO4 27Ah and 21700 6Ah cells.
• Active Cell Balancing: Energy transfer between cells for longer cycle life.
• Remote Data Monitoring: Check battery health and faults from your phone without opening the enclosure.

Voltage Reference

• 8S LiFePO4: 25.6V | 8S Li-ion: 29.6V
• 16S LiFePO4: 51.2V | 16S Li-ion: 59.2V
• 24S LiFePO4: 76.8V | 24S Li-ion: 88.8V

FAQ

Which amp rating should I choose?

40A for small solar and e-bikes. 60A for 48V solar inverters and e-scooters. 100A for high-power solar, EVs, and telecom backup. Match your inverter or motor controller’s max current draw.

Is this original JK BMS?

Yes. Authentic JK Smart BMS with official Bluetooth app support. Download JK BMS from App Store or Google Play.

Does Newon help with pack building?

Yes. WhatsApp +92-343-922-7883 with your target voltage, size, wattage, ampere and other related specifications to build your custom battery.
