LED Linear Water Ripple Wall Washer For Water Wave Effect Light
₨ 22,000
Project realistic, ever-changing water wave effects onto any architectural surface with dynamic ripple lighting. The LED Linear Water Ripple Wall Washer delivers IP65-rated, voltage-stable illumination with precision optics — perfect for hotel facades, museum exteriors, and poolside walls across Islamabad, Lahore, and Karachi. PKR 22,000.
- ✔ Dynamic Water Ripple Effect — Projects realistic moving water patterns onto walls, ceilings, floors; creates immersive ambience without actual water
- ✔ IP65 Weatherproof Housing — Dust-tight + water-jet resistant per IEC 60529; reliable for Pakistan’s monsoon season and coastal salt-air conditions
- ✔ AC 220V Direct Connection — No external transformer required; built-in driver tolerates voltage fluctuations common in Faisalabad/Gujranwala industrial zones
- ✔ High-CRI LED Array — Crisp, colour-accurate ripple projection; superior thermal management for continuous outdoor operation in Quetta heat or Hunza cold
- ✔ Adjustable Mounting Brackets — Flexible positioning for wall, ceiling, or ground installation; seismic-resistant design for AJK heritage projects
- ✔ CE/RoHS Certified — Compliant with Pakistan Electrical Safety Code & NEECA MEPS standards; tested for ECBC 2023 energy efficiency
PKR 22,000. Includes mounting hardware. Warranty: 12 months. 💬 WhatsApp to Order | Bulk/project pricing available.
✓ CE/RoHS | ✓ IP65 Weatherproof | ✓ 12-Month Warranty | ✓ NEECA Compliant
Description
LED Linear Water Ripple Wall Washer Pakistan — Dynamic Water Wave Effect Lighting | PKR 22,000
Problem: Static facade lighting fails to capture attention or create immersive ambience for hospitality, retail, or heritage projects. Solution: LED Linear Water Ripple Wall Washer projects realistic, ever-changing water patterns onto any surface — no plumbing required. PKR 22,000.
Why LED Linear Water Ripple Wall Washer vs Standard Wall Washers?
| Feature | Water Ripple Wall Washer (This Product) | Standard LED Wall Washer | Actual Water Feature + Lighting |
|---|---|---|---|
| Visual Effect | Dynamic, moving water ripple pattern — adjustable speed/direction | Static wash of uniform colour or white light | Real water movement + lighting — highest impact but complex maintenance |
| Installation Complexity | Simple wall/ceiling mount; AC 220V direct connection | Simple mount; may require low-voltage transformer | Requires plumbing, pumps, waterproofing, drainage — high cost/maintenance |
| Weather Resistance | IP65 — dust-tight + water-jet resistant for Pakistan monsoons | Often IP65; varies by model | Requires IP68 components + freeze protection in cold climates like GB/AJK |
| Best For | Hotel facades, museum exteriors, poolside walls, retail storefronts | Basic architectural accent lighting | Luxury resorts, large commercial plazas with dedicated maintenance teams |
Technical Specifications
| Parameter | Specification |
|---|---|
| Voltage | AC 220V — direct connection, no transformer required |
| Power | 24W |
| LED Type | High-CRI LED array — crisp, colour-accurate ripple projection |
| Size | 1000×80×60mm (L×W×H) |
| Effect | Dynamic water ripple pattern — adjustable speed/direction |

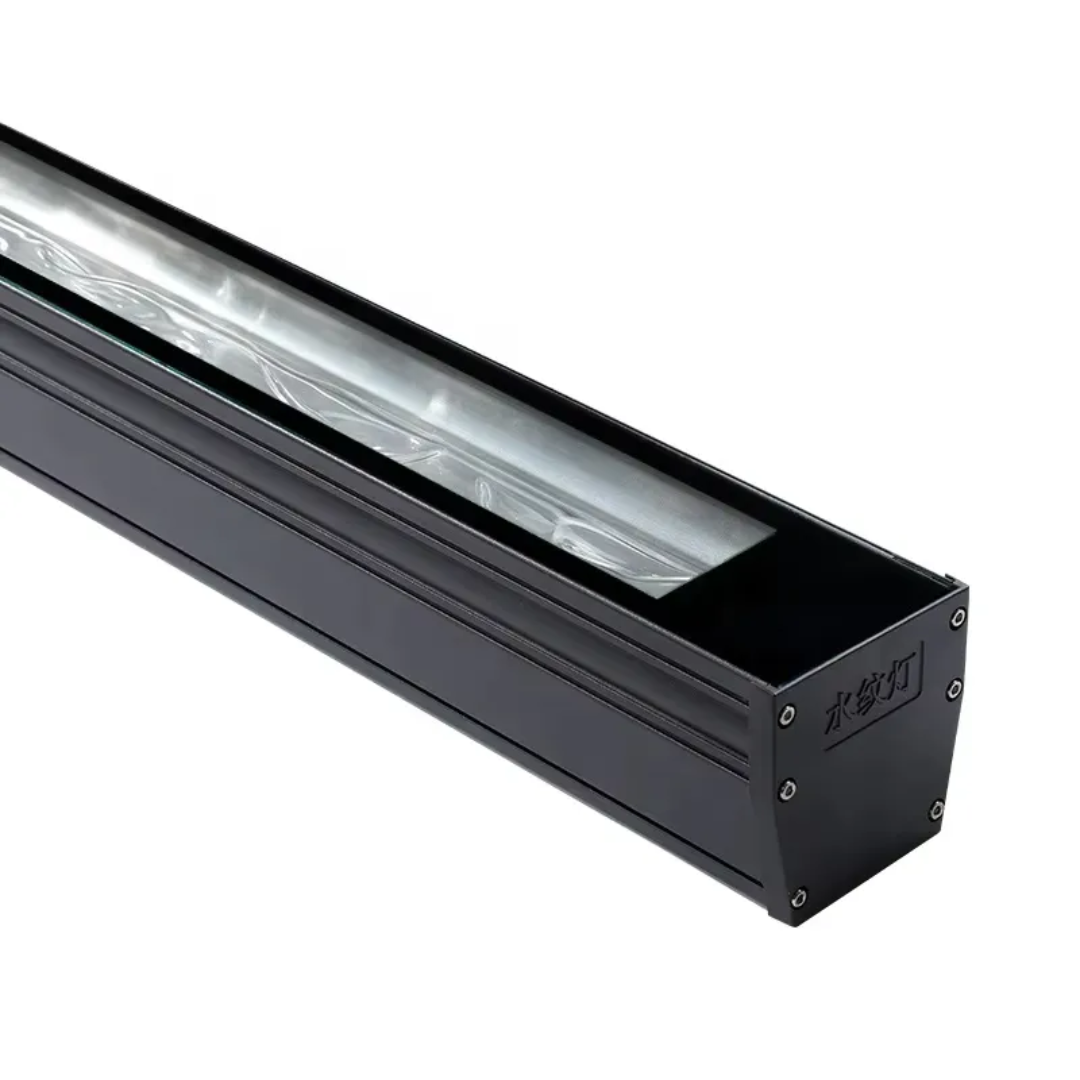

| Housing Material | Die-cast aluminium + tempered glass — heat-dissipating, impact-resistant |
| IP Rating | IP65 per IEC 60529 — dust-tight + water-jet resistant |
| Mounting | Adjustable brackets for wall/ceiling/ground installation |
| Certifications | CE, RoHS, NEECA MEPS compliant; tested for ECBC 2023 energy efficiency |
| Warranty | 12 months manufacturer warranty |
Which Application Should You Choose?
| Application | Installation Tip | Why (Pakistan Context) |
|---|---|---|
| Hotel & Restaurant Facades | Mount horizontally above entrance or along poolside wall; aim ripple pattern downward for maximum visual impact | Creates immersive ambience for DHA Islamabad, Gulberg Lahore, Clifton Karachi hospitality venues; IP65 withstands monsoon humidity without maintenance |
| Museum & Heritage Building Exteriors | Position at ground level aiming upward; use slow ripple speed for subtle, elegant effect on stone/textured surfaces | Enhances heritage tourism projects like Peshawar Museum or Sethi House (KITE Project); seismic-resistant mounting suitable for AJK/KPK seismic zones |
| Retail Storefronts & Commercial Plazas | Install above signage or along facade edges; synchronize multiple units for coordinated ripple flow across large surfaces | Attracts foot traffic in high-density retail zones like Blue Area Islamabad or Saddar Karachi; AC 220V direct connection simplifies installation in voltage-fluctuation prone areas like Faisalabad |
Applications
- Hotel & Restaurant Facades — Creates immersive ambience for DHA Islamabad, Gulberg Lahore, Clifton Karachi hospitality venues; IP65 withstands monsoon humidity without maintenance
- Museum & Heritage Building Exteriors — Enhances heritage tourism projects like Peshawar Museum or Sethi House (KITE Project); seismic-resistant mounting suitable for AJK/KPK seismic zones
- Retail Storefronts & Commercial Plazas — Attracts foot traffic in high-density retail zones like Blue Area Islamabad or Saddar Karachi; AC 220V direct connection simplifies installation in voltage-fluctuation prone areas
- Poolside & Garden Feature Walls — Complements actual water features or creates illusion of water on dry walls; salt-air corrosion resistant for Karachi coastal installations
- Regional Adaptability — IP65 rating ensures reliability in KPK monsoons, Balochistan heat (Quetta 45°C+), GB cold snaps (-10°C), and Karachi coastal salt-air conditions
🚚 Shipping & Delivery:
- Pakistan: Free shipping on orders ≥ PKR 15,000 | Dispatch 1–2 days | Nationwide delivery 2–5 days
- Installation: AC 220V direct connection — no external transformer required; all electrical connections must be made by qualified electrician per Pakistan Electrical Safety Code; adjustable brackets allow wall/ceiling/ground mounting
FAQs
How does the water ripple effect work without actual water?
The LED Linear Water Ripple Wall Washer uses precision optics and a high-CRI LED array to project a dynamic, moving light pattern that mimics the appearance of water ripples. The effect is created internally via a rotating diffuser or LED modulation system — no water, pumps, or plumbing required. Ideal for dry locations where a water feature aesthetic is desired without maintenance or leakage risk.
Is IP65 sufficient for outdoor installation in Pakistan’s climate?
Yes. IP65 per IEC 60529 means the fixture is dust-tight and protected against water jets from any direction — sufficient for wall-mounted outdoor installations exposed to rain, monsoon humidity, and coastal salt spray. For permanently submerged applications, choose IP68-rated products like Newon’s LED RGB Waterfall Lamp. Contact Newon via WhatsApp +92 343 9227883 for site-specific IP rating advice.
Can the ripple speed and direction be adjusted?
Yes. Most units include a built-in controller allowing adjustment of ripple speed (slow drift to rapid flow) and direction (vertical, horizontal, or diagonal). For advanced control via DMX or smartphone app, contact Newon for compatible controller options and wiring guidance for multi-unit synchronization across large facades.
What surface types work best for ripple projection?
Smooth, light-coloured surfaces (white plaster, light stone, painted concrete) produce the clearest ripple effect. Textured or dark surfaces will diffuse the pattern. For optimal results in Pakistan projects, test projection on a sample area first. Newon’s team can provide effect previews via WhatsApp video consultation before bulk ordering.
🔧 Technical Details (Click to Expand)
- How the Ripple Effect Is Generated: Inside the fixture, a high-CRI LED array illuminates a precision-engineered optical diffuser — either a rotating textured lens or an electronically modulated LED driver. This creates a moving light pattern that, when projected onto a surface, mimics the visual behaviour of water ripples: gentle undulations, light refraction patterns, and dynamic flow. No water, pumps, or plumbing are involved, making installation simple and maintenance-free compared to actual water features.
- High-CRI LED Advantage: CRI (Colour Rendering Index) >80 ensures the projected ripple pattern appears crisp, natural, and colour-accurate — critical for hospitality and heritage applications where visual quality impacts brand perception. Lower-CRI LEDs produce muddy, indistinct patterns that fail to create the desired immersive effect. Newon’s high-CRI array also features superior thermal management for continuous outdoor operation in Pakistan’s extreme climates.
- Die-Cast Aluminium + Tempered Glass Housing: Aluminium provides excellent heat dissipation — critical for LED longevity in high-ambient-temperature environments like Quetta (45°C+) or sun-exposed facades in Lahore. Tempered glass protects the optical system from impact, dust, and water jets while maintaining optical clarity. The combination ensures reliable performance across Pakistan’s diverse climates, from GB cold snaps to Karachi coastal salt-air.
- Compliance Framework: CE (European safety), RoHS (hazardous substances restriction), NEECA MEPS (Pakistan energy standards). All products tested for voltage fluctuation tolerance (180-260V) common in Pakistan’s grid infrastructure, especially in industrial zones like Faisalabad and Gujranwala. IP65 rating verified per IEC 60529 international standards; suitable for ECBC 2023 energy-efficient building projects.
Frequently Bought Together
Complete your facade or feature wall lighting scheme with these compatible additions:
- LED RGB Waterfall Lamp — Complementary underwater RGB colour-changing for actual water features (₨ 12,000)
- LED Linear Outdoor Facade Light — Uniform wash lighting for large architectural surfaces (₨ 3,500/m)
- Browse Full Pool & Fountain Range → — Discover IP68 underwater lights, RGB pool lights, and fibre optic star systems
Seen in Newon Projects
Fibre Optic Star Pool Lighting — Movenpick Hotel Islamabad |
Commercial Building Facade — Union Square D-12 Islamabad |
Illumination of Peshawar Museum (KITE Project)
