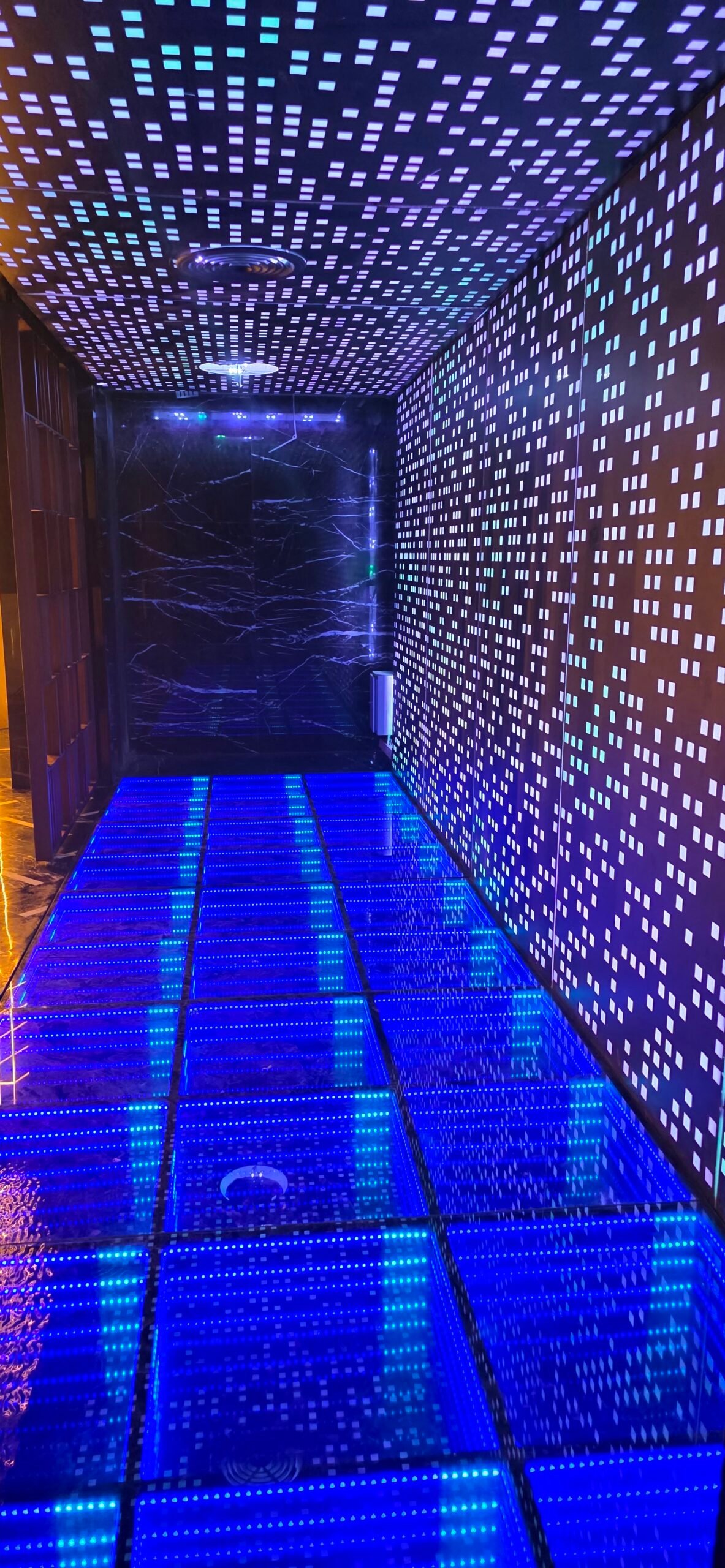

Cnc designed acrylic backlit wall and ceiling
₨ 3,000
CNC Designed Acrylic Backlit Wall and Ceiling — PMMA Acrylic Panels, Iron Frame, LED Modular Backlighting, Custom CNC Patterns. Bespoke luminous architectural feature for corporate, hospitality, and recreational interiors across Pakistan and UAE. For branded reception walls in Gulberg Islamabad, restaurant feature ceilings in Dubai Marina, and luxury retail accents in Bahria Town Lahore. Price per square foot. PKR 3,000/sq ft.
- ✔ Premium PMMA Acrylic Panels — High-light-transmission material (≥92%) with UV-stable formulation resists yellowing in Pakistan’s intense sunlight and UAE’s 45°C+ summer thermal cycling
- ✔ Custom CNC-Cut Pattern Design — Precision laser-cut motifs (geometric, organic, branded) create unique light-diffusion signatures; adaptable to corporate logos, cultural motifs, or architectural themes per Dubai Municipality design guidelines
- ✔ LED Modular Backlighting System — High-efficiency SMD 2835/5050 modules (≥110 lm/W) provide uniform, hotspot-free illumination; NEECA MEPS-compliant efficiency reduces operational costs under Pakistan’s PKR 43.83/kWh commercial tariffs
- ✔ Powder-Coated Iron Frame Structure — Corrosion-resistant coating prevents oxidation in Punjab/Sindh monsoon humidity (70–90% RH) and UAE coastal salt-air exposure (Dubai Marina, Palm Jumeirah)
- ✔ CCT & Dimming Flexibility — Select 3000K warm white for hospitality ambiance or 4000K neutral for corporate clarity; 0–10V/PWM dimming compatible for mood adaptation in restaurants and lounges
- ✔ Modular Panel System — Standardized sizing enables scalable customization for feature walls, ceiling clouds, and column wraps; site-templated fabrication available for curved or non-planar surfaces
PKR 3,000/sq ft (final pricing varies per CNC pattern complexity, panel thickness, and site accessibility). Requires structural assessment + professional installation. WhatsApp us for CAD pattern consultation or site survey booking.
Description
CNC Acrylic Backlit Wall Ceiling Pakistan — Custom LED Feature Panels | PKR 3,000/sq ft
The CNC Designed Acrylic Backlit Wall and Ceiling transforms architectural surfaces into luminous brand statements. Featuring precision laser-cut PMMA acrylic panels backlit by high-efficiency LED modules within a powder-coated iron frame, this bespoke system creates uniform, hotspot-free illumination that highlights custom patterns — from corporate logos to cultural motifs. Ideal for branded reception walls in Gulberg Islamabad, restaurant feature ceilings in Dubai Marina, and luxury retail accents in Bahria Town Lahore. PKR 3,000 per square foot (final pricing customized per CNC complexity and site layout). Newon provides end-to-end service from CAD pattern design to fabrication and professional installation, ensuring seamless integration aligned with Pakistan ECBC 2023 material guidelines and Dubai Municipality interior finish standards.
Specifications
| Parameter | Specification | Pakistan/UAE Relevance |
|---|---|---|
| Panel Material | PMMA acrylic, UV-stable, ≥92% light transmission | UV stabilization prevents yellowing under Pakistan’s intense solar exposure and UAE’s high-UV desert climate; high transmission maximizes LED efficiency for energy savings under NEPRA tariffs |
| Frame Construction | Iron with powder-coated corrosion-resistant finish | Powder coating prevents oxidation in Punjab/Sindh monsoon humidity (70–90% RH) and UAE coastal salt-air exposure (Dubai Marina, Palm Jumeirah); extends service life in humid commercial interiors |
| LED Backlighting | SMD 2835/5050 modular arrays, ≥110 lm/W efficacy | High efficacy meets NEECA MEPS minimums for commercial luminaires; reduces load on inverters/UPS during Pakistan loadshedding cycles and lowers DEWA demand charges in UAE |
| CCT Options | 3000K / 4000K / 6000K (selectable at order) | 3000K warm white for hospitality ambiance (Islamabad F-7 cafés, Dubai JLT restaurants); 4000K neutral for corporate clarity per EN 12464-1 office lighting standards |
| CRI (Colour Rendering) | ≥80 (commercial grade) | Accurate colour perception for retail displays, brand-consistent interior finishes, and client-facing corporate environments across Pakistan and UAE |
| Dimming Compatibility | 0–10V / PWM compatible drivers | Enables mood adaptation in hospitality venues and energy-saving schedules in corporate offices; compatible with BMS integration per Dubai Green Building Regulations |
| IP Rating | IP20 (indoor, climate-controlled) | Suitable for air-conditioned commercial interiors; not for outdoor/exposed locations (use IP65 fixtures for Pakistan monsoon zones or UAE semi-outdoor terraces) |
| Thermal Management | Aluminum heat sinks + ventilated frame design | Prevents LED thermal degradation in UAE’s 45°C+ summer ambient conditions and Pakistan’s unconditioned service corridors; maintains L70 lifespan rating |
| Customization Scope | CNC pattern, panel dimensions, CCT, dimming, edge finish | Adaptable to client brand aesthetics: Islamic geometric patterns for Islamabad heritage interiors; minimalist linear motifs for Dubai modernist fit-outs |
| Lead Time | 10–14 days for standard patterns; 14–21 days for bespoke CAD designs | Expedited production available for Pakistan project deadlines; UAE shipments coordinated via newon.ae logistics partners |
Key Uses
- Corporate Reception & Brand Walls — Illuminated CNC-cut logos create memorable first impressions in Gulberg Islamabad offices and Dubai Business Bay fit-outs; uniform backlighting ensures brand-consistent visibility day and night
- Restaurant & Café Feature Ceilings — Custom patterns (floral, geometric, cultural) add atmospheric depth in Islamabad F-7 fine dining and Dubai JLT lounge venues; 3000K warm white enhances food presentation and guest comfort
- Retail Display Backdrops — Luminous acrylic panels highlight merchandise in Karachi luxury boutiques and Dubai Mall satellite stores; CRI ≥80 ensures colour-accurate product representation
- Hospitality Lobby Accents — Large-scale CNC installations elevate guest experience in Islamabad boutique hotels and Dubai Marina serviced apartments; dimming capability adapts ambiance from daytime brightness to evening intimacy
- Spa & Wellness Sanctuaries — Soft, diffused glow from backlit organic patterns creates calming visual rhythm in Islamabad wellness centres and Dubai spa facilities per WELL Building Standard lighting guidelines
- Entertainment & Recreational Zones — Dynamic CNC patterns (customizable for events) add visual interest in Islamabad event venues and Dubai entertainment complexes; RGB variant available for programmable colour effects
FAQs
What file formats are accepted for custom CNC pattern design?
Newon accepts vector files (AI, EPS, DXF, SVG) for precise CNC path generation. If you have raster concepts (JPG, PNG), our design team can convert them to vector at no extra cost. Submit files via WhatsApp for feasibility review within 24 hours. View pattern examples in our project portfolio.
How does the LED backlighting ensure uniform illumination without hotspots?
Newon uses high-density SMD 2835/5050 modules with optimized spacing (≤50mm pitch) and diffuser-grade acrylic to eliminate visible LED points. Pre-installation photometric testing verifies uniformity (≤10% variance) across the panel surface — critical for brand-consistent corporate walls and luxury retail displays.
Is the iron frame suitable for humid Pakistan or coastal UAE environments?
Yes. All frames receive a multi-stage powder-coating process (pre-treatment, epoxy primer, polyester topcoat) providing corrosion resistance validated for Punjab/Sindh monsoon humidity (70–90% RH) and UAE coastal salt-air exposure. For extreme marine environments (e.g., Palm Jumeirah waterfront), stainless steel frame upgrade is available.
Can the system be integrated with building management systems (BMS) for smart control?
Absolutely. Dimmable drivers with 0–10V/PWM interface enable integration with standard BMS protocols (DALI, KNX, Modbus). Newon provides technical coordination with your MEP consultant to ensure seamless commissioning per Dubai Green Building Regulations and Pakistan ECBC 2023 automation guidelines.
What maintenance is required for acrylic panels in dusty Pakistan environments?
PMMA acrylic’s non-porous surface resists dust adhesion critical for Punjab/Sindh airborne particulates. Cleaning requires only a microfiber cloth + neutral pH cleaner; avoid abrasive tools to preserve optical clarity. Quarterly professional cleaning recommended for commercial installations per UAE facility management protocols.
Contact & Order
📧 info@newon.pk |
📞 +92 343 9227883 |
💬 WhatsApp
📍 Office No 2, First Floor, Haroon Plaza, Islamabad
Stretch Fabric Ceiling Systems |
Backlit Ceiling Modules |
PSO VIBE Retail Lighting Project |
Newon Project Portfolio |
Indoor Decorative Lighting Pakistan
